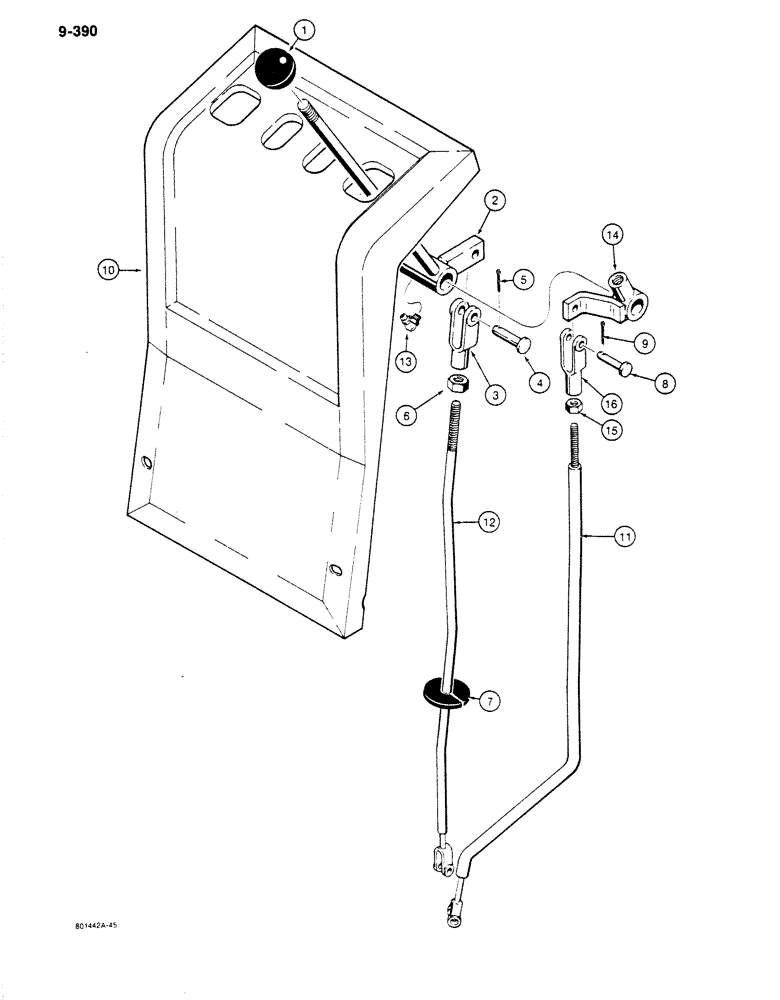

Запчасти Case 680K (9-390) - BACKHOE EXTENDABLE DIPPER CONTROL, FOOT SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

1шт.

2

L108117

HANDLE

LEVER - control extendahoe

1шт.

3

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated, rod end 3/8"-24

1шт.

4

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

1шт.

5

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

6

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF, plated

1шт.

7

L109751

SEAL

SEAL - control rod

1шт.

8

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

plated 5/16" x .940", HDN

1шт.

9

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

10

REF

INSTRUCTION

COVER - control tower, see Figure 9-380

1шт.

11

L102930

ROD

- stabilizer, left-hand, see Figure 9-382 Ref. 32 for rod used on models without extendable dipper

1шт.

12

L106379

ROD

- bucket, dipper, boom, and extendahoe dipper, see Figure 9-382 Ref. 24 for rods used on models without extendable dipper

4шт.

13

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4" - 28 NF taper

1шт.

14

D87834

LEVER

- right-hand stabilizer

1шт.

15

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF, plated

1шт.

16

213-125

ADJUSTABLE CLEVIS,5/16" - 32

Rod end 5/16"-24

1шт.
