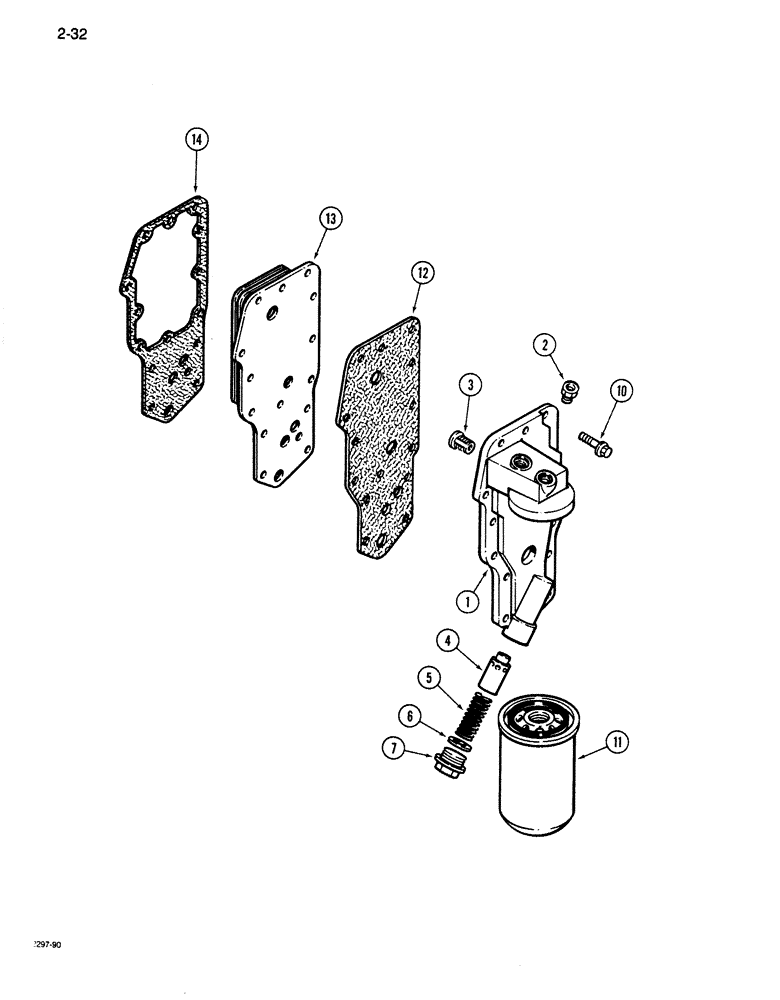

Запчасти Case 680K (2-32) - OIL FILTER AND COOLER, 6-590 ENGINE (02) - ENGINE

1

N2646116

SUPPORT

HEAD - filter, lube oil

1шт.

2

N7679988

PLUG

- hex socket pipe, 1/4-18 inch PT

1шт.

2

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

1шт.

3

J936365

VALVE PRESSURE RELIE

VALVE - relief, pressure

1шт.

4

J918428

PLUNGER

- regulator, pressure (Replaces J906456)

1шт.

5

J903261

SPRING

- compression

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

7

J924148

PLUG,M22 x 1.5

- pipe, M22

1шт.

10

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange head, M8 x 1.25 x 35 mm

14шт.

11

J937345

FILTER, ENGINE OIL

FILTER - engine oil

1шт.

12

J929792

GASKET,1.2mm Thk

- filter head (Replaces J905589)

1шт.

13

J921558

COOLER

CORE - cooler, oil (Replaces J903375)

1шт.

14

J942914

GASKET

- cooler core (Replaces J904427)

1шт.
