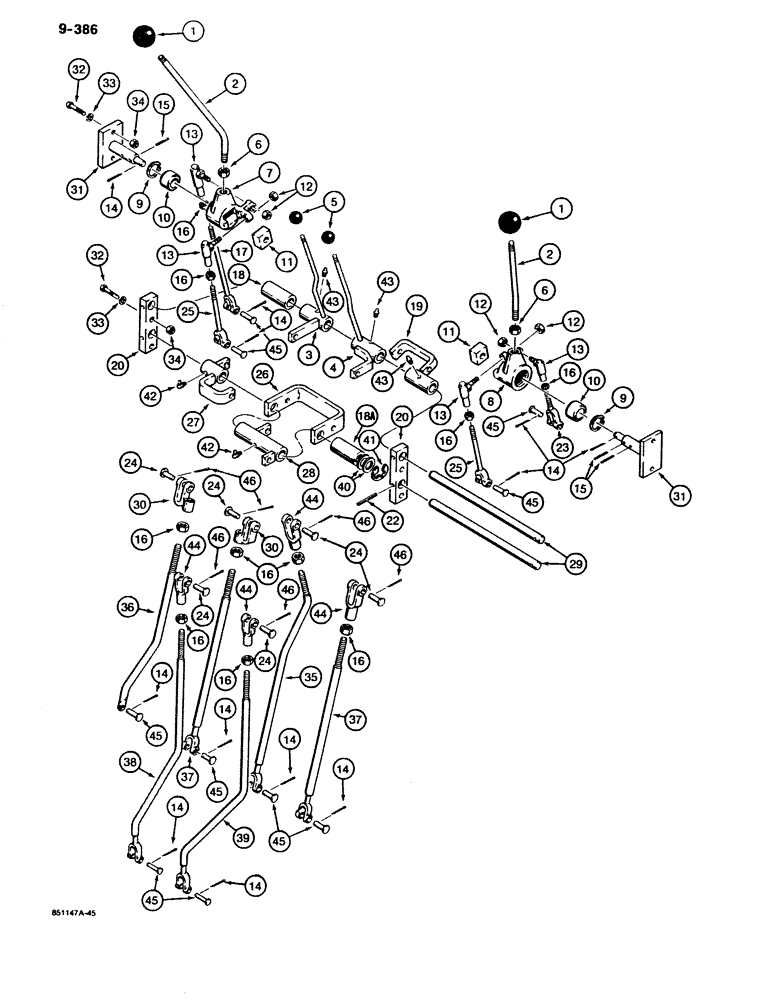

Запчасти Case 680K (9-386) - BACKHOE CONTROLS WITH HAND SWING (09) - CHASSIS/ATTACHMENTS

1

D39118

KNOB

- control levers

2шт.

2

L108087

LEVER

- boom and swing, dipper and bucket

2шт.

3

L105459

LEVER

- stabilizer, left-hand

1шт.

4

L105456

LEVER

- stabilizer, right-hand

1шт.

5

D59912

KNOB

- stabilizer control lever

2шт.

6

425-1110

NUT,5/8"-18, G5

2шт.

7

L105056

LEVER

- pivot, left-hand

1шт.

8

L109118

LEVER

- pivot, right-hand

1шт.

9

P38298

SPRING

RING - snap, bearing retaining

2шт.

10

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

BEARING - self-aligning

2шт.

11

D38305

BLOCK

- wear

2шт.

12

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

4шт.

13

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT - ball, 3/8"

4шт.

14

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

12шт.

15

438-11216

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

4шт.

16

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF, plated

10шт.

17

L106744

ROD

- boom control, upper

1шт.

18

L105446

TUBE

- 2-17/32" (64 mm) long, spacer, replaces spacer, Ref. 18A, on some models

1шт.

18a

D128652

SPACER

- split, 2-13/16" (72 mm) long

1-2шт.

19

L105454

BRACKET

- dipper pivot

1шт.

20

L106412

SUPPORT ASSY.

SUPPORT - pivot shaft

2шт.

22

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

23

R20187

ROD

- dipper control, upper

1шт.

24

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

6шт.

25

L106462

ROD

- bucket control

2шт.

26

L105448

BRACKET

- boom pivot

1шт.

27

L107159

LEVER

- swing

1шт.

28

L105450

SHAFT

- bucket

1шт.

29

D79526

ROD

SHAFT - pivot

2шт.

30

L11182

YOKE,3/8" - 24

CLEVIS - 3/8", offset, rod end

2шт.

31

L106441

SUPPORT ASSY.

SUPPORT - pivot

2шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

8шт.

33

492-11038

LOCK WASHER,3/8"

8шт.

34

425-106

NUT,3/8"-16, Cl 5

8шт.

35

L108513

ROD

- lower dipper control

1шт.

36

L108516

ROD

- lower swing control

1шт.

37

L108515

ROD

- lower control, bucket and boom

2шт.

38

L108518

ROD

- left-hand stabilizer

1шт.

39

L108520

ROD

- right-hand stabilizer

1шт.

40

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

Used as a spacer 3/4", SAE

1шт.

41

100-3387

SNAP RING,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

42

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4" - 28 NF taper

2шт.

43

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4"-28 NF

3шт.

44

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

4шт.

45

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

plated 5/16" x .940", HDN

10шт.

46

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

6шт.
