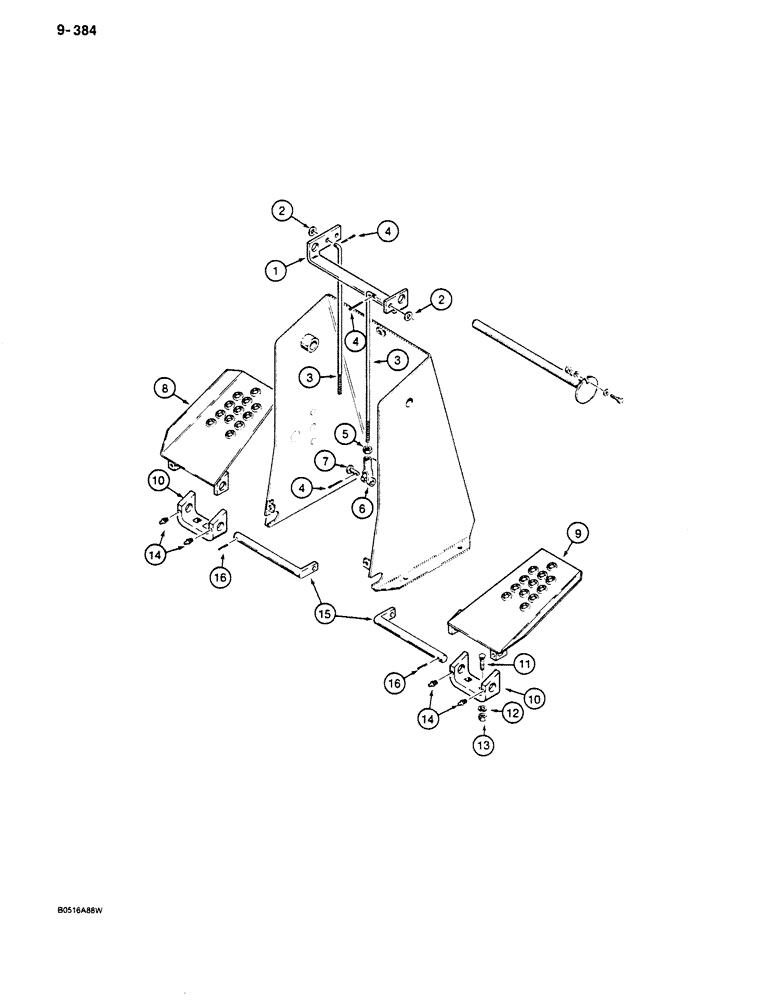

Запчасти Case 680K (9-384) - BACKHOE CONTROLS WITH FOOT SWING, SWING PEDALS AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D129392

BRACKET

- swing

1шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 3/8", plated

2шт.

3

D81905

ROD

- swing, Serial Range: pedal-bracket

2шт.

4

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

5

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF, plated

2шт.

6

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

2шт.

7

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

2шт.

8

D87888

PEDAL

- left-hand swing

1шт.

9

D87886

PEDAL

- right-hand swing

1шт.

10

D92817

BRACKET

- swing pedal

2шт.

11

411-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

BOLT - carriage, 3/8" - 16 NC x 1-1/4", plated

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

425-106

NUT,3/8"-16, Cl 5

4шт.

14

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16" drive

4шт.

15

D135328

SHAFT

- swing pedal

2шт.

16

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.
