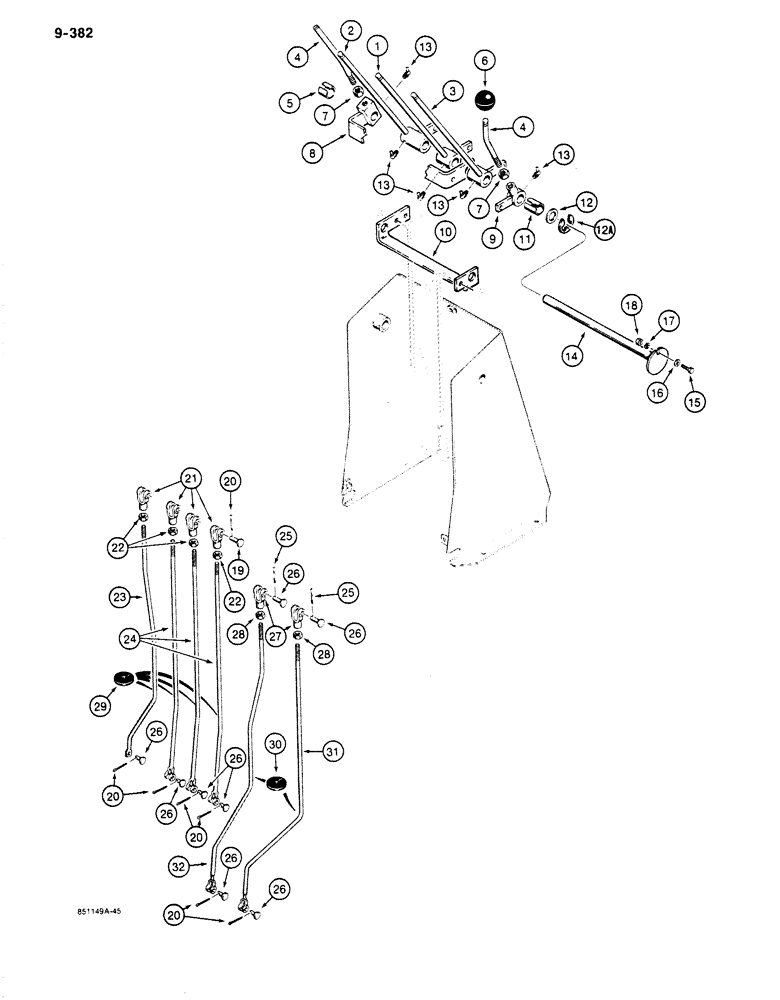

Запчасти Case 680K (9-382) - BACKHOE CONTROLS WITH FOOT SWING, STABILIZER, BOOM, DIPPER AND BUCKET CONTROL LEVERS AND LINKAGE (09) - CHASSIS/ATTACHMENTS

1

L105984

LEVER

- dipper control

1шт.

2

L105985

LEVER

- bucket control

1шт.

3

L105983

LEVER

- boom control

1шт.

4

L108004

LEVER

- stabilizer, rod control

2шт.

5

D88212

BUSHING

SPACER - shaft, short

1шт.

6

L54563

KNOB

- levers

5шт.

7

704148

NUT

- hex, 1/2" - 20 NF, plated

2шт.

8

D92993

BRACKET

LEVER - stabilizer, left-hand

1шт.

9

D92995

LEVER

- stabilizer, right-hand

1шт.

10

D129392

BRACKET

- swing

1шт.

11

D88213

SPACER

- shaft, long

1шт.

12

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

12a

100-3387

SNAP RING,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

13

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4" - 28 NF taper

5шт.

14

D123224

SHAFT

- lever mounting

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

1шт.

16

95-21031

WASHER,1/4"

- flat, , plated 1/4"

1шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

1шт.

19

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

4шт.

20

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

10шт.

21

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

4шт.

22

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF, plated

4шт.

23

L104519

ROD

- valve to swing bracket

1шт.

24

L106380

ROD

- boom, dipper, and bucket lever, see Figure 9-390 item 12 for rods used on models with extendable dipper

3шт.

25

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

26

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

plated 5/16" x .940", HDN

8шт.

27

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

28

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF, plated

2шт.

29

L109751

SEAL

SEAL - control rod

4шт.

30

L109752

SEAL

SEAL - control rod

2шт.

31

L102835

ROD

- stabilizer right-hand

1шт.

32

L102825

ROD

- stabilizer left-hand, see Figure 9-390 item 11 for rod used on models with extendable dipper

1шт.
