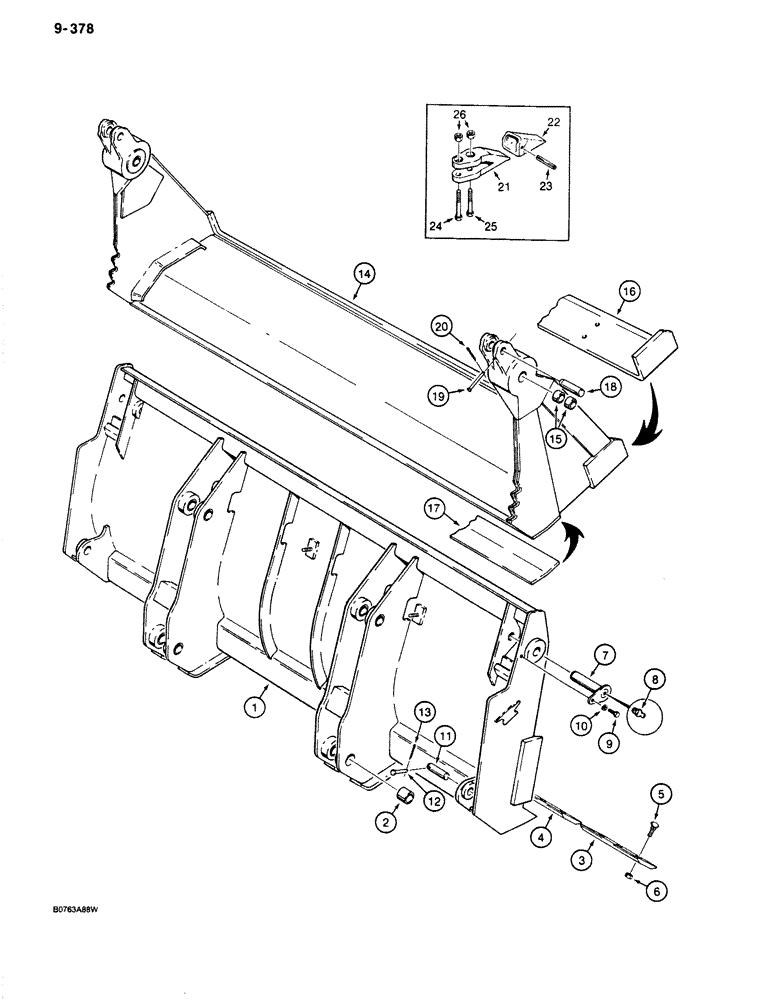

Запчасти Case 680K (9-378) - CLAM BUCKET - D139473, 1-1/2 CUBIC YARD (09) - CHASSIS/ATTACHMENTS

D139473

BUCKET ASSEMBLY - clam, 1-1/2 cubic yard (1-1/8 cubic meter), machinery item, order from Machinery Price List, bucket assembly also includes Ref. 1 - 11 on Figure 8-266 and D143217 clam cylinder on Figure 8-346, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

36121

BUSHING

- bucket ear

8шт.

3

N6743

EDGE

- cutting, end

2шт.

4

A17654

EDGE

- cutting, center

1шт.

5

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

BOLT, PLOW, 3/4"-10 x 2", G8, Full Thd

18шт.

6

129-572

NUT,3/4"-10, G8

18шт.

7

N7658

PIN

- clam to blade, Includes: Ref. 8

2шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

9

426-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

S46134

PIN,37.95mm OD x 98.55mm L

- cylinder, Serial Range: base-blade

2шт.

12

S61971

CLEVIS PIN,15.88mm OD x 80.16mm L

PIN - clevis, use with S46134 pin

2шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

D143212

SHELL

CLAM ASSEMBLY - bucket, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

15

S23904

BUSHING

- clam

4шт.

16

S29659

EDGE, CUTTING

EDGE - cutting, clam, front

1шт.

17

D143213

EDGE

PLATE - compaction, rear

1шт.

18

S18633

AXLE PIN,38.13mm OD x 102.36mm L

PIN -, Serial Range: clam-cylinder

2шт.

19

S10786

CLEVIS PIN

PIN, CLEVIS, Use with S18633 pin

2шт.

20

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

21

S22929

TOOTH

- bucket

9шт.

22

S204157

TOOTH

POINT - tooth

9шт.

23

438-13240

LOCK PIN,12.5mm OD x 63.5mm L, Coiled

Pin, 1/2" x 2 1/2", Slotted

9шт.

24

326-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

BOLT, Hex, 5/8"-11 x 3 1/2", G8

9шт.

25

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

9шт.

26

429-1010

NUT,5/8"-11, G8

18шт.
