Запчасти Case 680K (9-376) - CLAM BUCKET - L76489, 1-1/4 CUBIC YARD (09) - CHASSIS/ATTACHMENTS

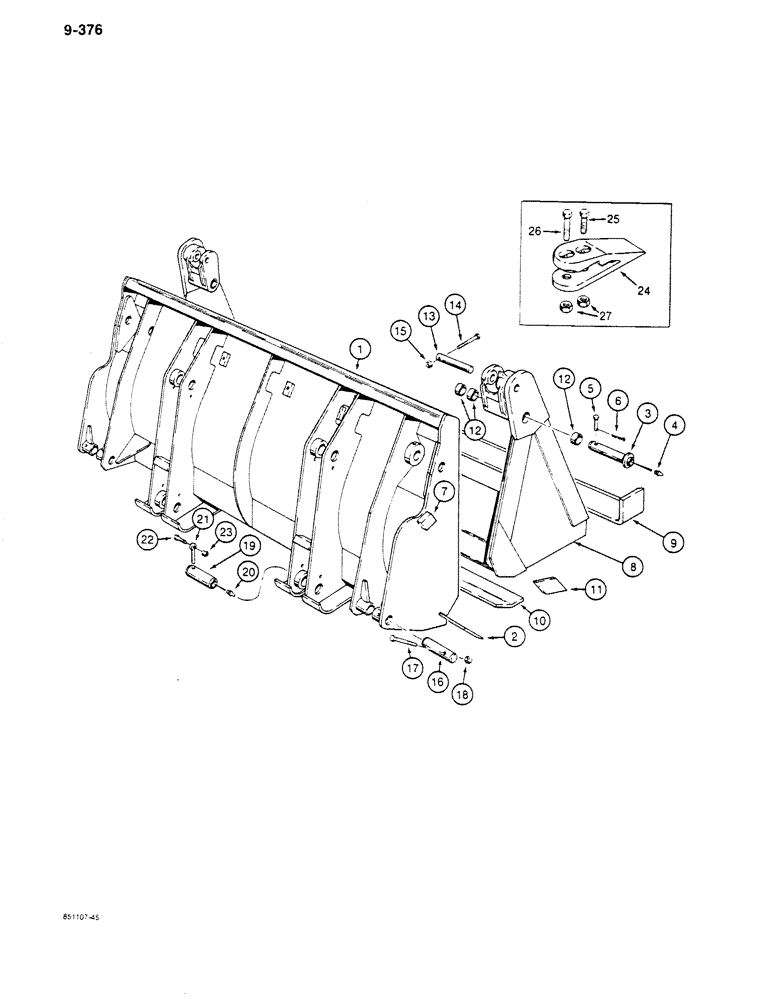

Схема запчастей Case 680K - (9-376) - CLAM BUCKET - L76489, 1-1/4 CUBIC YARD (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

L76489

BUCKET

ASSEMBLY - clam 1-1/4 cubic yard (1.0 cubic meter) Includes: Ref. 1 - 12

1шт.

Machinery item, order from the Machinery Price List, bucket assembly also includes Ref. 1 - 16 on figure 8-265 and G101227 clam cylinders on Figure 8-344, no longer available, replaced by D139473 clam bucket on Figure 9-378

1шт.

L76490

BLADE

ASSEMBLY - bucket, Includes: Ref. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D95182

EDGE, CUTTING

EDGE - cutting, blade

1шт.

3

D46917

PIN

-, Serial Range: blade-clam

2шт.

4

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

5

D46973

PIN

- clevis, blade pin

2шт.

6

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

7

D46913

PLATE

BLOCK - stop

2шт.

D49616

CLAW

CLAM ASSEMBLY - bucket, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

9

D49617

EDGE

- cutting, clam

1шт.

10

D49618

PLATE

- wear

1шт.

11

R53713

LARGE PLATE

HOOK - grab

2шт.

12

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- hinge

6шт.

13

D39311

PIN

- upper, cylinder to clam bucket

2шт.

14

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8" - 16 NC x 4-1/4"

2шт.

15

131-206

NUT,3/8"-16

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

16

S203049

PIN

- lower, Serial Range: cylinder-blade

2шт.

17

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

18

131-206

NUT,3/8"-16

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

19

L79796

AXLE PIN

PIN - mounting, bucket blade

4шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

21

R17756

ROD,12.7mm OD x 109.54mm L

- retaining, mounting pin

4шт.

22

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

23

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2" - 13 NC, plated

4шт.

24

D46885

TOOTH

- bucket

7шт.

25

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

7шт.

26

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4", plated

7шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

14шт.

Выбрано товаров: 31
