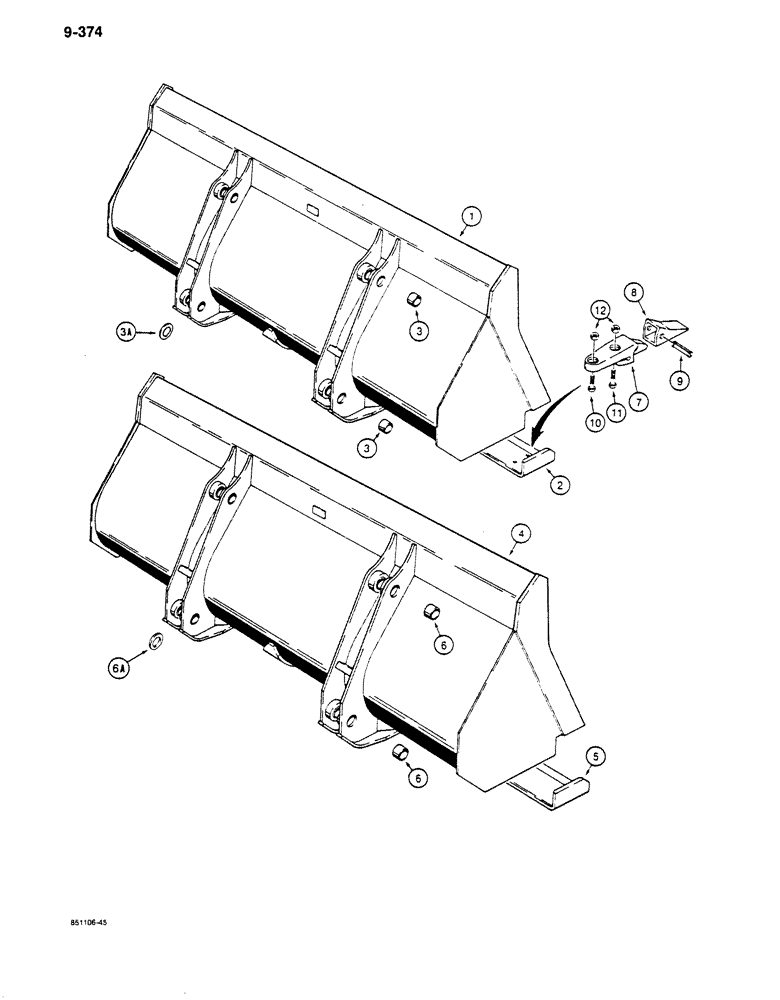

Запчасти Case 680K (9-374) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS

L74889

BUCKET

ASSEMBLY - 86" (2184 mm) wide, machinery item, order from the Machinery Price List, 1-1/4 cubic yard (1.0 cubic meter) Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L58159

EDGE

- cutting, front

1шт.

This is a weld-on edge. The matching bolt-on edge is ZPC21578.

1шт.

3

36121

BUSHING

- bucket ear

8шт.

3a

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2", plated, special, spacer, 1-1/4 cubic yard (1.0 cubic meter) bucket

8шт.

L104709

BUCKET

ASSEMBLY - 94-1/2" (2400 mm) wide, machinery item, order from the Machinery Price List, 1-1/2 cubic yard (1.2 cubic meter) Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L101620

EDGE, CUTTING

EDGE - cutting, front

1шт.

3

36121

BUSHING

- bucket ear

8шт.

3a

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2", plated, special, spacer, 1-1/2 cubic yard (1.2 cubic meter) bucket

8шт.

L76487

BUCKET

ASSEMBLY - 96" (2438 mm) wide, machinery item, order from the Machinery Price List, 1-3/4 cubic yard (1.3 cubic meter) Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

5

L58427

EDGE, CUTTING

EDGE - cutting, front

1шт.

Bolt-on edge for this is ZPC21600, available through the ship direct program. Weld-on is ZPC21635, uses 5/8" plow bolts.

1шт.

6

36121

BUSHING

- bucket ear

8шт.

6a

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2", plated, special, spacer, 1-3/4 cubic yard (1.3 cubic meter) bucket

8шт.

D50780

TOOTH

ASSEMBLY - bucket, optional on L74889 or L104709 bucket, Includes: Ref. 7 - 9

8шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

532948R1

POINT

- tooth

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

Pin flex, Point

1шт.

10

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8, plated, bucket teeth

8шт.

11

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8" - 11 NC x 2-1/2", grade 8, plated, bucket teeth

8шт.

12

429-1010

NUT,5/8"-11, G8

Bucket teeth 5/8"-11, G8

16шт.
