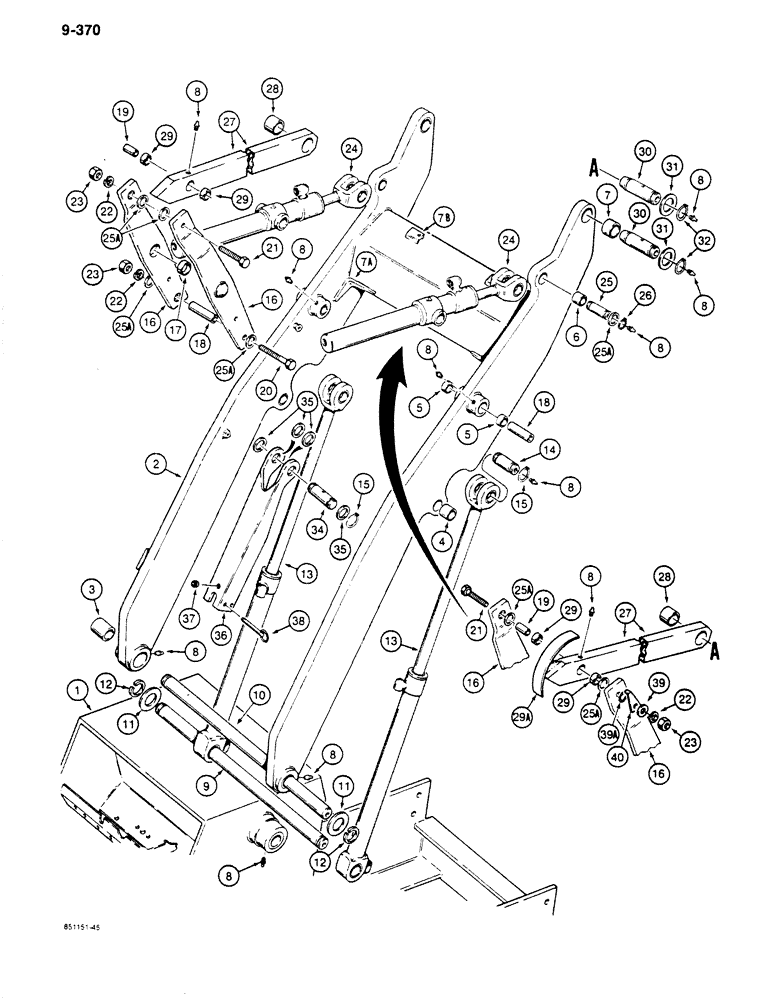

Запчасти Case 680K (9-370) - LOADER LIFT FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS ASSEMBLY - parts list Figure 9-426

1шт.

2

D132050

FUNNEL

FRAME ASSEMBLY - loader lift, Includes: Ref. 3 - 7B

1шт.

3

L79365

BUSHING

- lift frame at chassis

2шт.

4

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- at lift cylinders

2шт.

5

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- lift frame at bucket linkage

4шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- lift frame at bucket cylinders

2шт.

7

36121

BUSHING

- lift frame at bucket

2шт.

7a

L52234

BRACKET

- lift arm, welded on, cut, Serial Range: off-replace

2шт.

7b

L111396

PLATE ASSY.

PLATE - spacer, lift arm, welded on, cut, Serial Range: off-replace

1шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

16шт.

9

L57362

SHAFT

PIN - lower, lift cylinders pivot shaft

1шт.

10

L57362

SHAFT

PIN - upper, lift arm pivot shaft

1шт.

11

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- special (Replaces 196-76)

1шт.

12

D34664

RING

- snap, pin retaining

4шт.

13

G103457

CYLINDER BLOCK

CYLINDER ASSEMBLY - loader lift, see Figure 8-340

2шт.

14

D140364

PIN

- lift cylinder mounting to lift frame, right-hand side only

1шт.

15

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

16

L103392

DRAG LINK

LINK ASSEMBLY - includes bushings, bucket link to lift arm, Includes: Ref. 17

4шт.

17

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link at cylinder

1шт.

18

L57197

AXLE PIN

SPACER - link

2шт.

19

L74594

SPACER

- link

2шт.

20

426-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- hex head, 3/4" - 10 NC x 7", grade 8, plated

2шт.

21

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2шт.

22

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

23

429-1012

NUT,3/4"-10, G8

- hex, 3/4"-10 NC, grade 8, plated

4шт.

24

G101220

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket tilt, see Figure 8-342

2шт.

25

D34656

PIN,38.1mm OD x 101.6mm L

- bucket cylinder rod end to lift frame

2шт.

25a

495-81293

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

- flat, 1-1/2", special, plated

1шт.

26

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

27

L108026

DRAG LINK

LINK ASSEMBLY - bucket, Includes: Ref. 28, 29

2шт.

28

36121

BUSHING

- link, at bucket

1шт.

29

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- link, at bellcrank

2шт.

29a

L108411

BRACKET

- decal mounting, welded to right-hand link, see Figure 9-518 for 321-2654 decal

1шт.

30

L105080

AXLE PIN

PIN - bucket link and lift arm to bucket, used on models without clam bucket, see Figure 9-376, Ref. 19 - 23, for pin and hardware used on models with clam bucket

4шт.

31

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2", plated, special, used with Ref. 30

1шт.

32

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin, Used with ref. 30 #200, Ext

8шт.

34

L78791

AXLE PIN

PIN - lift cylinder and safety strut mounting, left-hand side only

1шт.

35

495-81234

WASHER,1.81" ID x 2.5" OD x 0.07" Thk

- flat, 1-3/4", plated, special

1шт.

36

D141760

SUPPORT

STRUT - left-hand side loader lift frame

1шт.

37

D132350

GROMMET

- rubber

1шт.

38

104824A1

PIN,12.7mm OD

Hitch

1шт.

39

496-11078

WASHER

- flat, 3/4", plated, special

1шт.

39a

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4", plated

1шт.

40

L107670

LEVEL

INDICATOR - bucket level, right-hand side

1шт.
