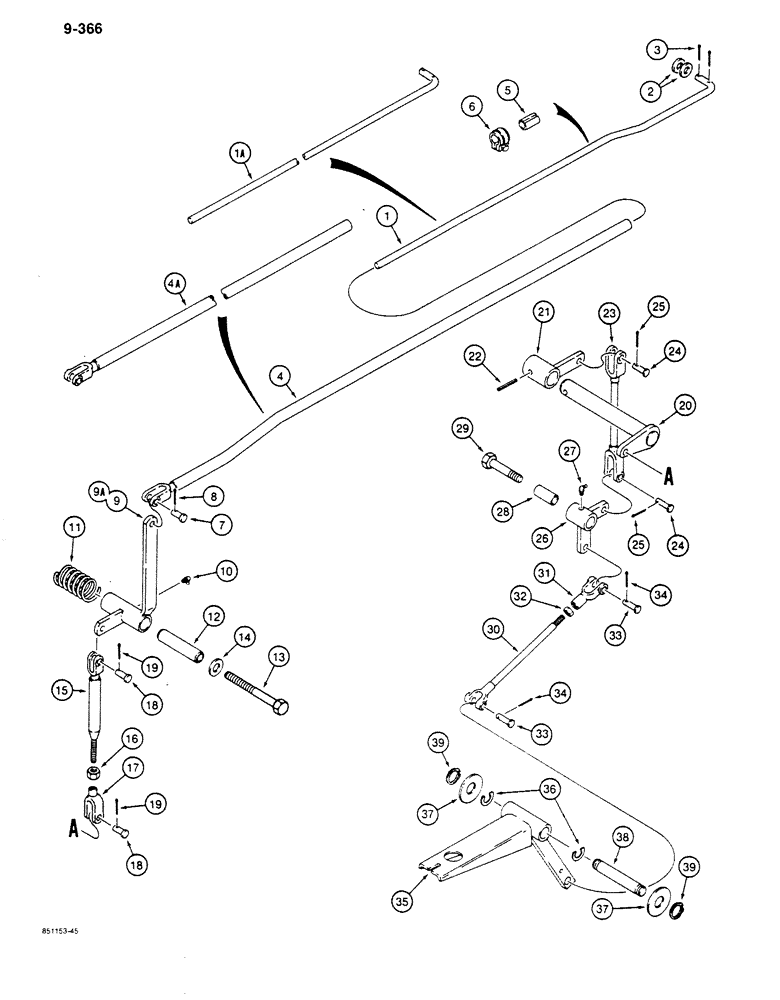

Запчасти Case 680K (9-366) - LOADER ANTIROLLBACK CONTROL (09) - CHASSIS/ATTACHMENTS

1

D128803

ROD

- offset, antirollback, offset no longer used, for service order straight D133376 rod, D133377 tube, and D133375 lever (Ref. 1A, 4A and 9A)

1шт.

1a

D133376

ROD

- straight, antirollback

1шт.

2

495-11053

WASHER,1/2", SAE

2шт.

3

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

4

D128801

TUBE

- offset, antirollback rod to upper pivot lever, offset no longer used, for service order straight D133376 rod, D133377 lever (Ref. 1A, 4A and 9A)

1шт.

4a

D133377

TUBE

- straight, antirollback rod to upper pivot lever

1шт.

5

D129972

SLEEVE CYLINDER

SLEEVE - clamp

1шт.

6

D71880

CLAMP,22.23mm

- tube to rod, includes bolt, washer, and nut

1шт.

7

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

1шт.

8

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

9

D128806

LEVER

- upper pivot, used with offset rod and tube (Ref. 1 and 4), offset no longer used, for service order straight D133376 rod, D133377 tube, and D133375 lever (Ref. 1A, 4A and 9A)

1шт.

9a

D133375

LEVER

- upper pivot, used with straight rod and tube (Ref. 1A and 4A)

1шт.

10

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4" - 28 NF taper

1шт.

11

D72099

SPRING

- upper pivot

1шт.

12

D86652

SLEEVE

- upper pivot lever

1шт.

13

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex head, 5/8" - 11 NC x 5-1/2", plated

1шт.

14

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened, plated

1шт.

15

D131281

ROD

- self-leveling

1шт.

16

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF, plated

1шт.

17

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8"

1шт.

18

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

2шт.

19

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

20

D131278

SHAFT

- middle

1шт.

21

D128811

LEVER

- to middle shaft

1шт.

22

38-32432

PIN,3/8" x 2", Coiled

heavy duty, lever to shaft 3/8" x 2", Coiled

1шт.

23

D128817

ROD

- connecting, Serial Range: middle-lower

1шт.

24

427-8136

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2", plated

2шт.

25

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

26

D128814

LEVER

- lower pivot

1шт.

27

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4" - 28 NF taper

1шт.

28

D86653

BUSHING

SLEEVE - lower pivot lever

1шт.

29

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

30

L103591

ROD

- connecting, lower pivot, Serial Range: lever-bellcrank

1шт.

31

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - 1/2"

1шт.

32

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

33

427-8136

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2", plated

2шт.

34

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

35

L103614

DIPPER

BELLCRANK - antirollback control

1шт.

36

100-13112

SNAP RING,#112, Ext, Crescent

Ring, Snap, , special, used as a spacer #112, Ext, Crescent

2шт.

37

495-11106

WASHER,1", SAE

- flat, 1", plated

2шт.

38

D25984

PIN

- pivot

1шт.

39

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining, pivot pin

2шт.
