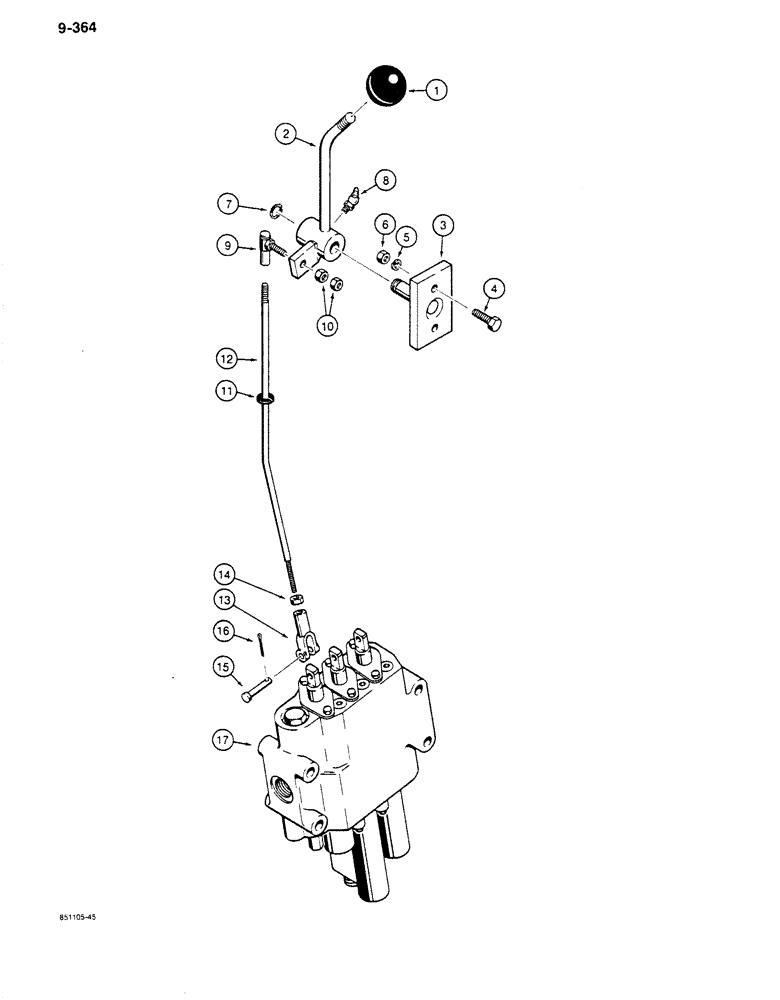

Запчасти Case 680K (9-364) - LOADER CONTROLS - CLAM SPOOL (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

1шт.

2

L103011

LEVER

- clam bucket control

1шт.

3

L103233

BRACKET

- pivot

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

100-1175

SNAP RING,#75, Ext

Ring, Snap, , pivot #75, Ext

1шт.

8

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8" pipe, self-tapping

1шт.

9

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT - ball, 3/8"

1шт.

10

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 16 NC, plated

2шт.

11

L109751

SEAL

SEAL - control rod

1шт.

12

L103020

ROD

- lever, clam bucket

1шт.

13

213-125

ADJUSTABLE CLEVIS,5/16" - 32

Rod end 5/16"-24

1шт.

14

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF, plated

1шт.

15

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

plated 5/16" x .940", HDN

1шт.

16

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

17

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, three spool, clam bucket, parts list Figure 8-292

1шт.
