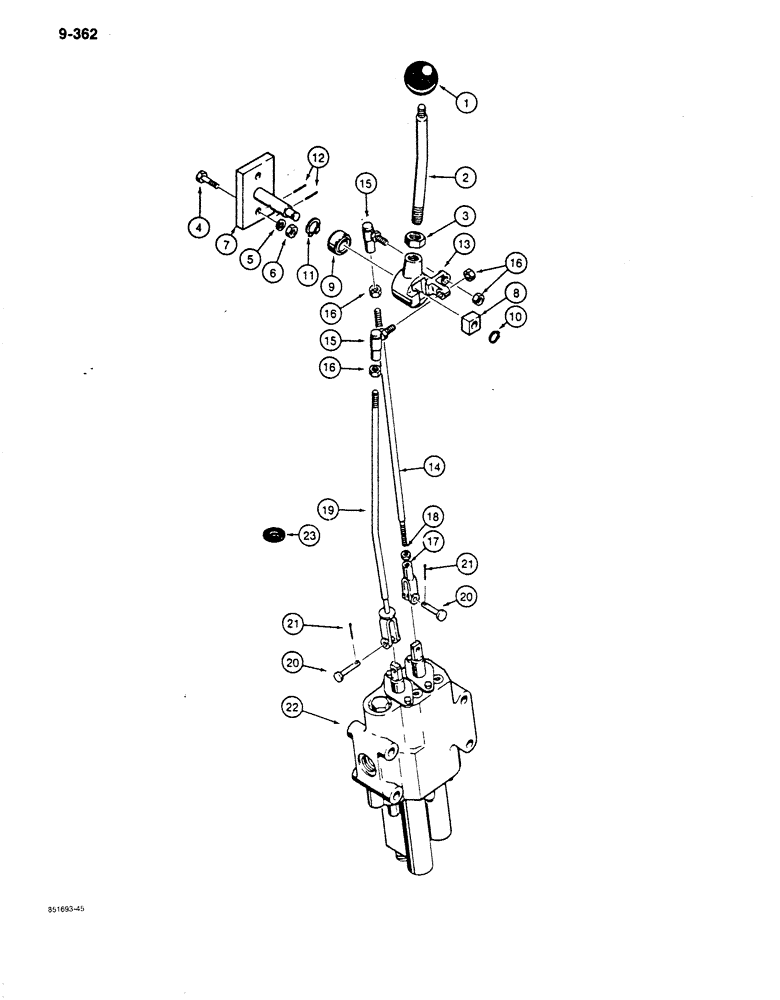

Запчасти Case 680K (9-362) - LOADER CONTROLS - LIFT AND BUCKET SPOOLS (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

1шт.

2

L102968

LEVER

- loader control

1шт.

3

425-1110

NUT,5/8"-18, G5

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

L78119

PIVOT PIN

BRACKET - pivot lever

1шт.

8

D38305

BLOCK

- wear

1шт.

9

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- self-aligning

1шт.

10

100-1150

SNAP RING,#50, Ext

Ring, Snap, , pin, small #50, Ext

1шт.

11

P38298

SPRING

RING - snap, pin, large

1шт.

12

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

13

L105056

LEVER

- pivot

1шт.

14

L103004

ROD

- loader lift

1шт.

15

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT - ball, 3/8"

2шт.

16

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF, plated

4шт.

17

213-125

ADJUSTABLE CLEVIS,5/16" - 32

Rod end 5/16"-24

1шт.

18

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF, plated

1шт.

19

L103400

ROD

- loader bucket

1шт.

20

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

plated 5/16" x .940", HDN

2шт.

21

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, two spool, parts list Figure 8-290

1шт.

23

L109751

SEAL

SEAL - control rod

2шт.
