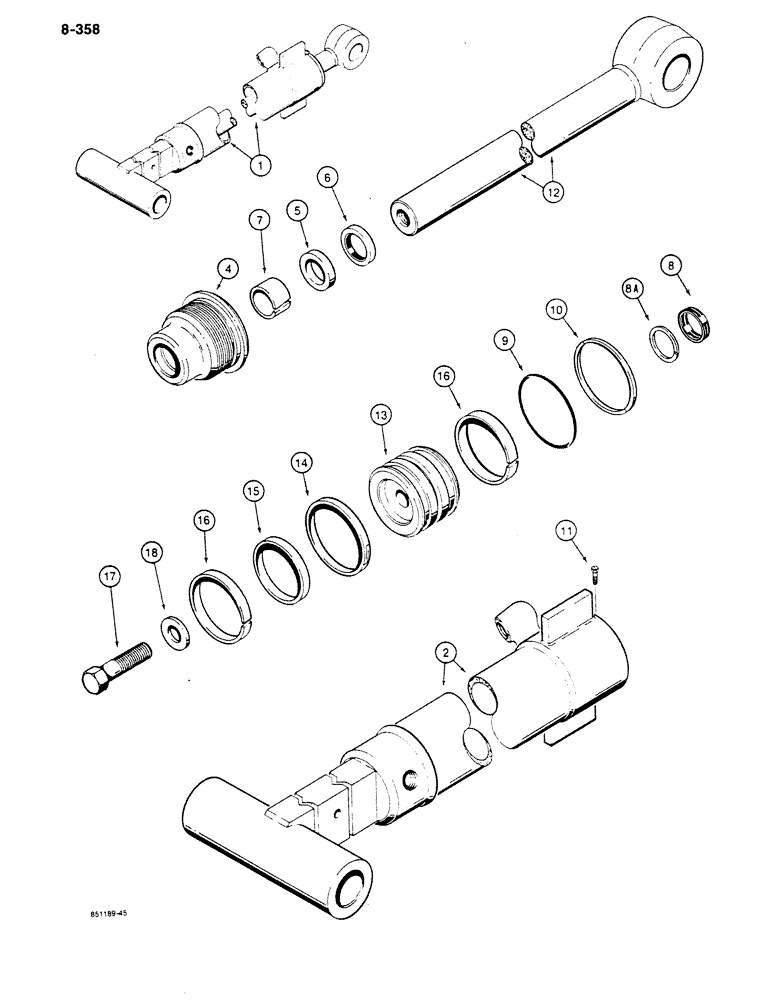

Запчасти Case 680K (8-358) - G101259 BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

1

G101259

CYLINDER BLOCK

CYLINDER ASSEMBLY - 3" (76 mm) x 48" (1219 mm) stroke, dipper extension, Includes: Ref. 2 - 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G34427

TUBE,78.81 mm L

ASSEMBLY - cylinder

1шт.

1542962C1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit 1543252C1

1шт.

7

G34302

BEARING

BUSHING - center

1шт.

Part of seal kit 1543252C1

1шт.

8

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit 1543252C1

1шт.

8

G100776

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

8a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit 1543252C1

1шт.

9

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Gland -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

Part of seal kit 1543252C1

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit 1543252C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex hd, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated

1шт.

12

G34432

ROD

- piston, 1-1/2" (38 mm) O.D.

1шт.

13

G100442

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit 1543252C1

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of seal kit 1543252C1

1шт.

16

G32033

RING

- wear, piston

2шт.

Part of seal kit 1543252C1

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex head, 3/4"-16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

1543252C1

SEAL KIT

KIT - seal, Includes: Ref. 6, 7, 8 (G107921), 8A - 10 and 14 - 16

1шт.
