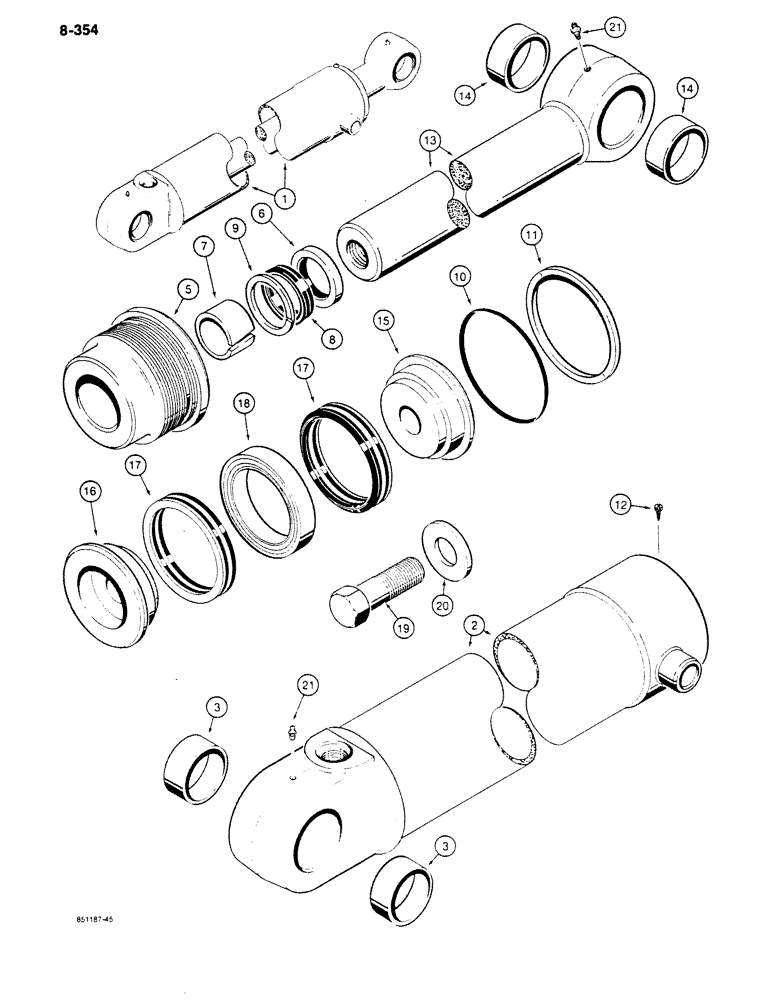

Запчасти Case 680K (8-354) - G101348 BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

1345994C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-1/2" (114 mm) ID x 39-13/16" (1011 mm) stroke, dipper, Includes: Ref. 2 - 21

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G101688

TUBE,4.5" DIA x 49.25" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

G104304

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit 1543291C1

1шт.

7

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- gland

1шт.

Part of seal kit 1543291C1

1шт.

8

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit 1543291C1

1шт.

8

G100780

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit 1543291C1

1шт.

10

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

Gland -246, 70 Duro, 4.484" ID x .139" Thk

1шт.

Part of seal kit 1543291C1

1шт.

11

G32284

BACK-UP RING

- backup, gland O-ring

1шт.

Part of seal kit 1543291C1

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex hd, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated

1шт.

13

G34324

ROD

ASSEMBLY - piston, 2-1/2" (63 mm) O.D., Includes: Ref. 14

1шт.

14

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

15

D49163

PISTON

- split, rod end

1шт.

16

D46931

PISTON

- split, bolt end

1шт.

17

D47205

PACKING

ASSEMBLY - piston, V-type

2шт.

Part of seal kit 1543291C1

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

20

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- hardened

1шт.

21

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

1543291C1

SEAL KIT

KIT - seal, Includes: Ref. 6, 7, 8 (G109228), 9 - 11 and 17

1шт.
