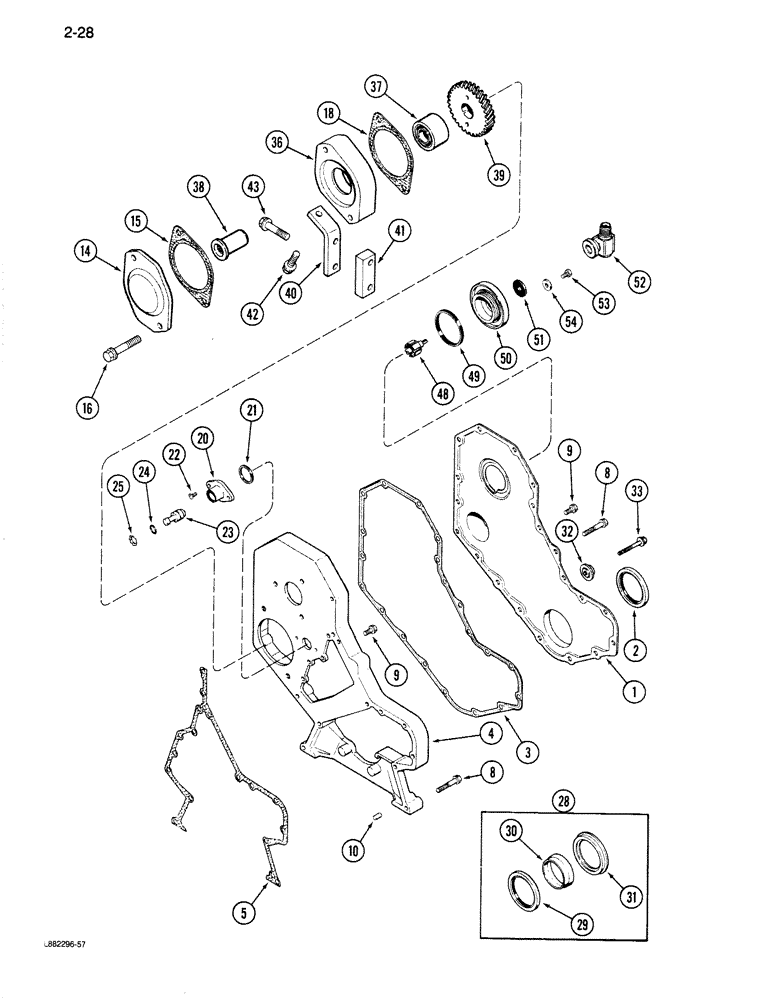

Запчасти Case 680K (2-28) - FRONT GEAR COVER, 6T-590 ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, cover (Order Ref. 28)

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover (Replaces J905143)

1шт.

4

J920758

HOUSING

- timing gear (Replaces J905731)

1шт.

5

J938156

GASKET,0.79mm Thk

- gear housing (Replaces J907836)

1шт.

8

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

9

J924962

FLANGE BOLT

BOLT - hex, M8 x 1.25 x 16 mm

16шт.

10

S3227399

DOWEL

PIN - dowel, locating

2шт.

14

J914868

COVER

PLATE - cover, access (Replaces A77440)

1шт.

15

144169C2

GASKET,0.79mm Thk

- cover place

2шт.

16

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

- flanged hex, M12 x 1.75 x 69 mm

2шт.

20

J905933

HOUSING

- timing pin

1шт.

21

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - pin housing

1шт.

22

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

23

Q6027808

LARGE PIN

PIN - timing

1шт.

24

J913994

O-RING

- sealing, timing pin (Replaces J90392)

1шт.

25

100-2587

SNAP RING,0.875", Int, #87

Ring, Snap, , Timing pin 0.875", Int, #87

1шт.

28

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 29 - 32

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

30

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

31

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

32

J912772

RETAINER

- bolt

1шт.

33

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- hex flange, M8 x 1.25 x 60

1шт.

36

J923237

ADAPTER

- hydraulic pump

1шт.

37

S7779904

BEARING, ROLLER

BEARING - pump roller

1шт.

38

J923242

SHAFT

- accessory drive (Replaces J902597)

1шт.

39

J931338

GEAR

- accessory drive

1шт.

40

J905945

BRACKET

BRACE - pump

1шт.

41

J905944

SPACER

- mounting

1шт.

42

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex flange, M12 x 1.75 x 25 mm

1шт.

43

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

Pump brace to block Hex Flg, M12 x 50, 10.9

2шт.

48

J905306

HUB

- tachometer drive

1шт.

49

S8046083

GASKET

SEAL - cover

1шт.

50

J903476

COVER

- access hole

1шт.

51

J905218

GASKET

- tachometer drive

1шт.

52

J905217

FITTING

ADAPTER - drive

1шт.

53

A77442

DRIVE SCREW,Hex, M6 x 1 x 12mm, Cl 8.8

BOLD -, Serial Range: drive-adapter

2шт.

54

K651812

WASHER

- retaining

2шт.
