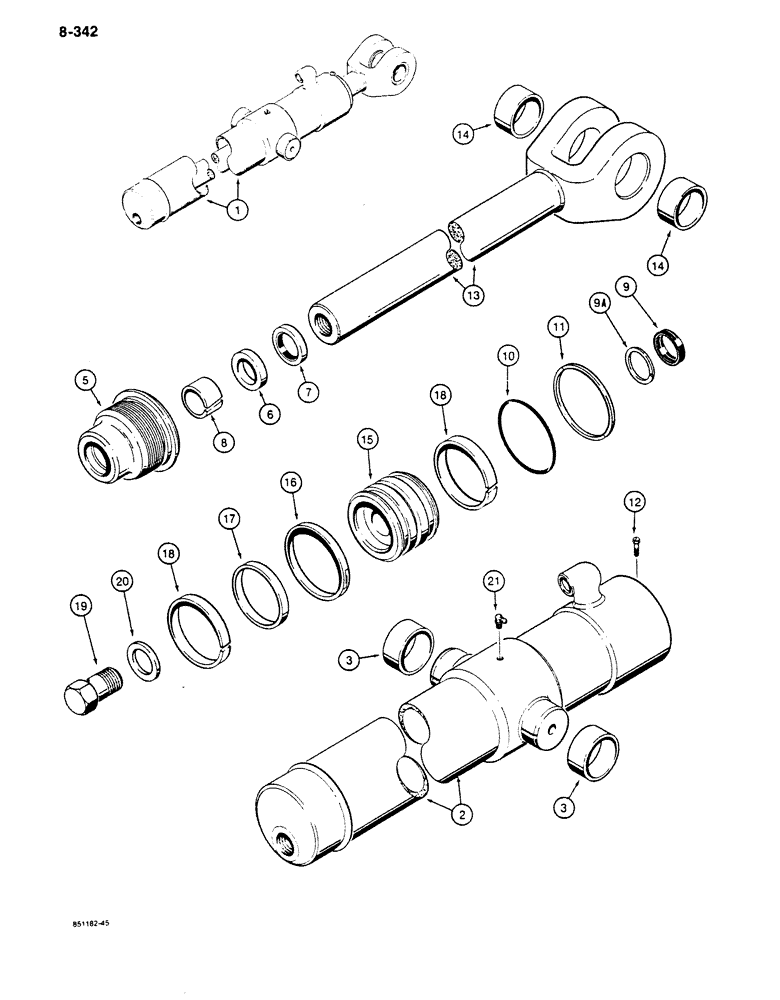

Запчасти Case 680K (8-342) - G101220 LOADER BUCKET TILT CYLINDER (08) - HYDRAULICS

1

G101220

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3" (76 mm) ID x 23-9/16" (598 mm) stroke, bucket tilt, Includes: Ref. 2 - 21

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

D35102

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

- tube

2шт.

G104240

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

G34600

RING

- retaining, bushing (Replaces NSS)

1шт.

7

1-7768

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of seal kit 1543262C1

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit 1543262C1

1шт.

9

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit 1543262C1

1шт.

9

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, service option - severs heat or cold

1шт.

9a

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit 1543262C1

1шт.

10

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Gland -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

Part of seal kit 1543262C1

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit 1543262C1

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex hd, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated

1шт.

13

G33563

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) O.D., Includes: Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G100704

PISTON

- cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit 1543262C1

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of seal kit 1543262C1

1шт.

18

G32033

RING

- wear, piston

2шт.

Part of seal kit 1543262C1

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex head, 1" - 14 NS x 2-1/2", grade 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

77081

FITTING

- grease, 45 degree, special short, 1/8" NPT

1шт.

1543262C1

SEAL KIT

KIT - seal, Includes: Ref. 7, 8, 9 (G107922), 9A - 11 and 16 - 18

1шт.
