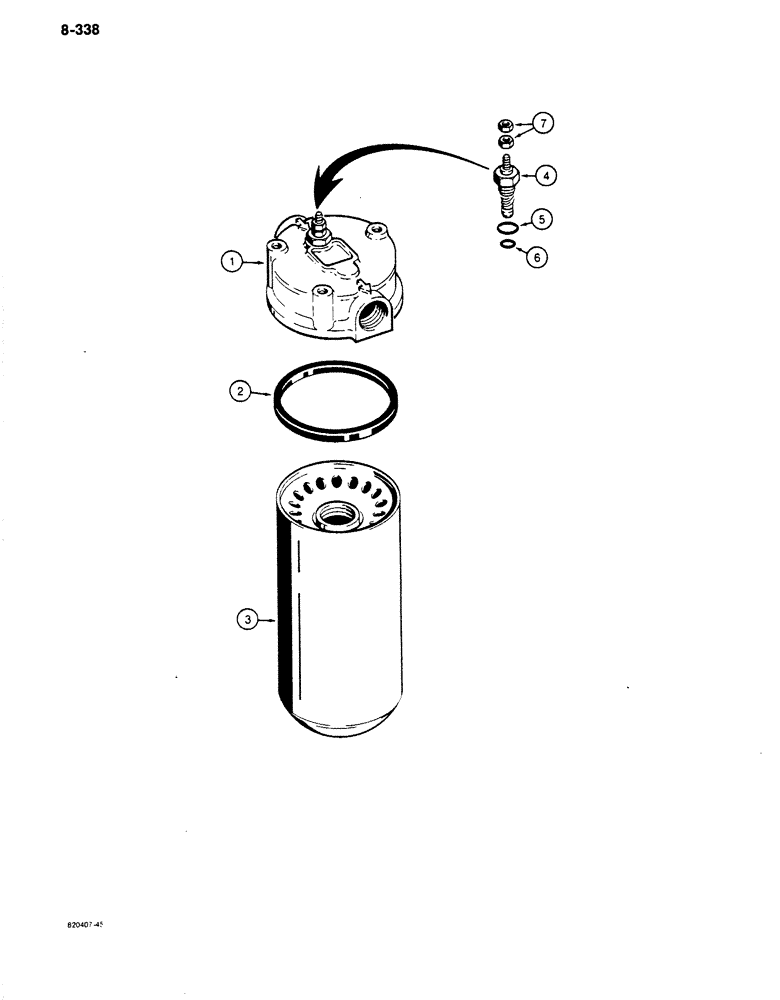

Запчасти Case 680K (8-338) - L114122 HYDRAULIC OIL FILTER (08) - HYDRAULICS

L114122

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - filter

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

N7782

TRANSMITTER

SENDER - filter restriction, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH - sender

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Sender, seal

1шт.

6

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Piston -111, 70 Duro, .424" ID x .103" Thk

1шт.

7

225-14110

NUT,#10-24

2шт.

A45625

HYDRAULIC OIL FILTER

KIT - filter element, includes (2) A139281 gaskets and (2) A143382 elements, no longer used, order 1329214C1 service kit for element replacement, see Ref. 2 and Ref. 3

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - filter element, includes (2) A23316 gaskets and (2) A177605 elements, see Ref. 2 and Ref. 3

1шт.
