Запчасти Case 680K (2-26) - WATER PUMP SYSTEM, 6-590 ENGINE (02) - ENGINE

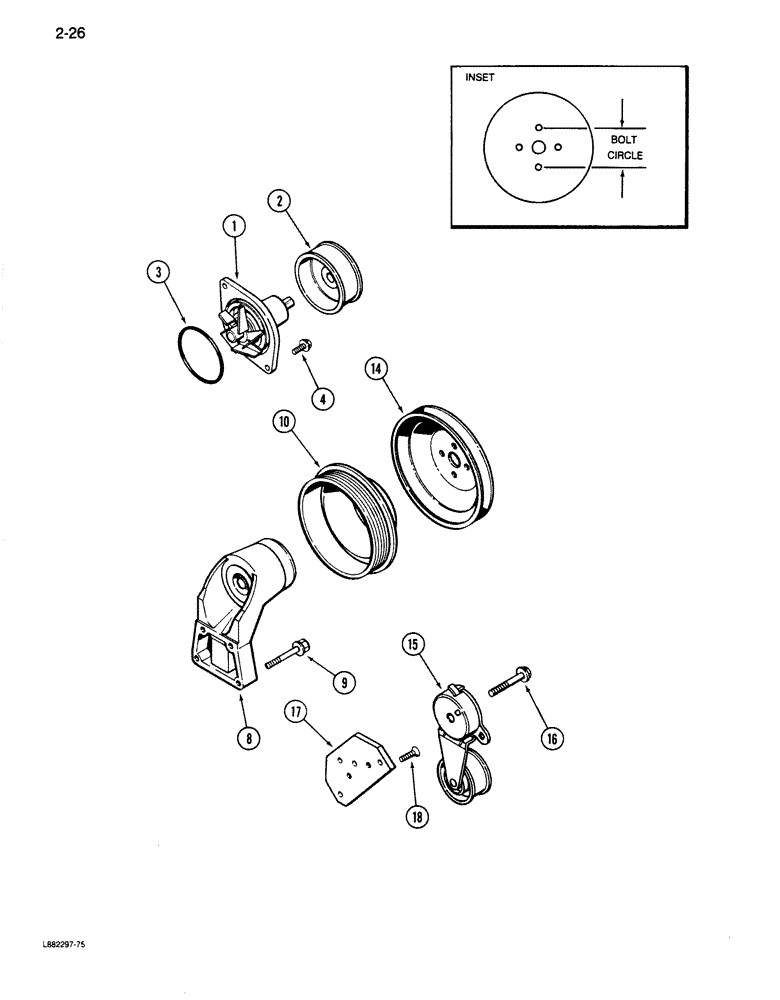

Схема запчастей Case 680K - (2-26) - WATER PUMP SYSTEM, 6-590 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

J286277

PUMP, WATER

PUMP - water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

680K

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77471

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77471

PUMP, WATER

PUMP KIT - water, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

680K, Replaces P/N's J286277 & A77471

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump (order A77471)

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces A30395) -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J909890

SUPPORT

BRACKET ASSEMBLY - fan pulley, 50 mm bolt circle (Replaces J908807)

1шт.

8

J911922

SUPPORT ASSY.

BRACKET ASSEMBLY - fan pulley, 60 mm bolt circle

1шт.

9

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- hex flange, M8 x 63 mm

4шт.

10

J914463

PULLEY,165.25mm OD

- fan, 50 mm bolt circle

1шт.

10

J914462

PULLEY,163mm OD

- fan, 60 mm bolt circle

1шт.

14

J919624

PULLEY

- accessory drive, 50 mm bolt circle

1шт.

14

J919624

PULLEY

- accessory drive, 60 mm bolt circle

1шт.

15

J912246

BELT TENSIONER

TENSIONER ASSEMBLY - belt (Replaces J908163)

1шт.

16

Z3333090

SCREW

BOLT - hex flange head, M10 x 62 mm

1шт.

17

J925207

SUPPORT

BRACKET - belt tension

1шт.

18

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, M8 X 25

2шт.

Выбрано товаров: 23
