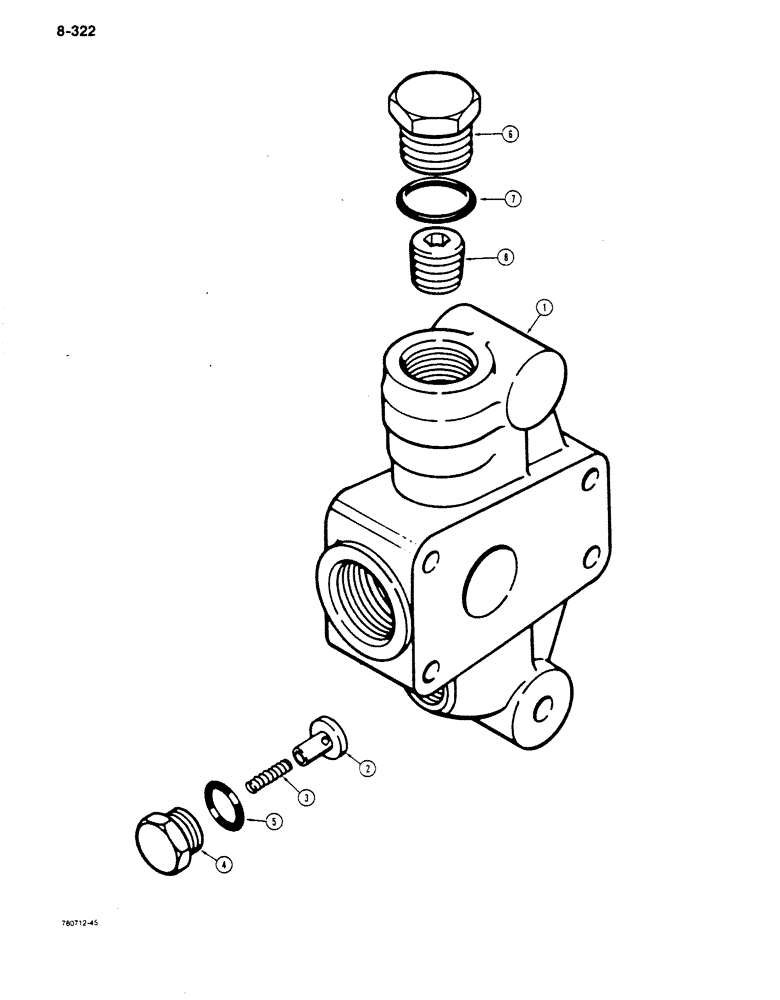

Запчасти Case 680K (8-322) - BACKHOE CONTROL VALVE, MID-INLET SECTION (08) - HYDRAULICS

G109786

HYD VALVE SECTION

SECTION ASSEMBLY - mid-inlet, no longer available, order G109786 mid-inlet section for service

1шт.

G109786

HYD VALVE SECTION

SECTION ASSEMBLY - mid-inlet, replaces G34895 mid-inlet section, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - manifold

1шт.

2

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET - check valve

1шт.

3

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

- check valve

1шт.

4

G34937

PLUG

- check valve

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

9410362

PLUG,Hex Hd, 1 3/16"-12 ORB

ASSEMBLY - hex head, manifold port, Includes: Ref. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - manifold port

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk, Plug

1шт.

8

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

1шт.
