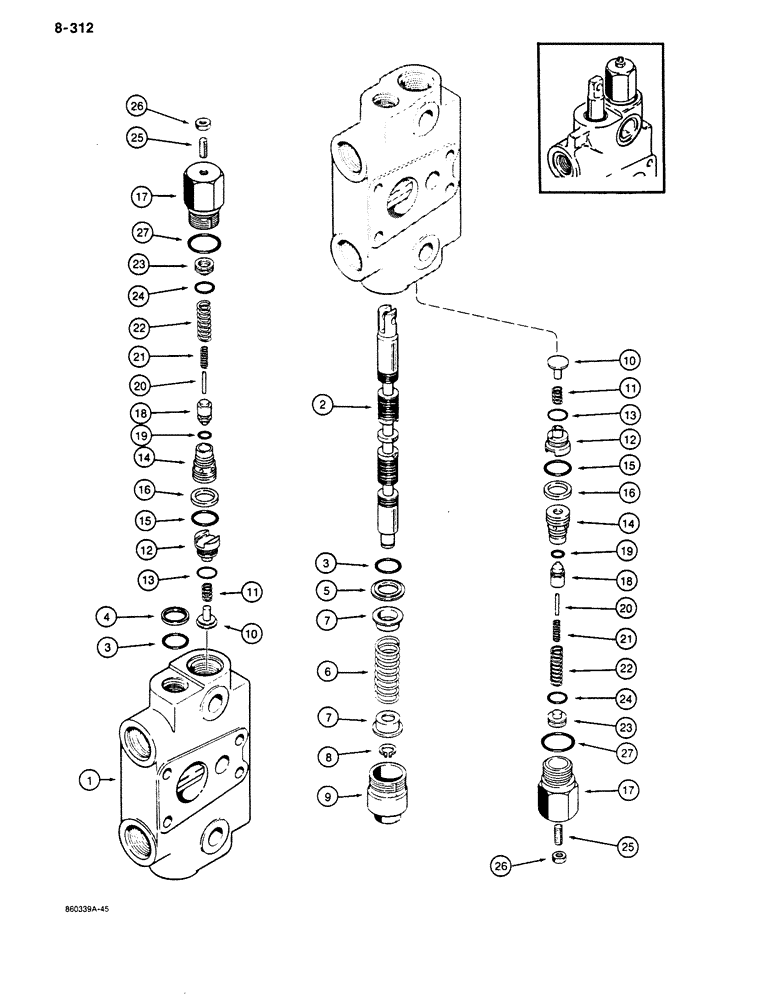

Запчасти Case 680K (8-312) - BACKHOE CONTROL VALVE, DIPPER AND BUCKET SECTION (08) - HYDRAULICS

G109511

VALVE

SECTION ASSEMBLY - dipper and bucket, circuit relief valve with one-piece cap, replaces G104042 dipper and bucket section assembly on Figure 8-310, Includes: Ref. 1 - 27

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Body -116, 70 Duro, .737" ID x .103" Thk

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- spool

1шт.

5

G33803

RETAINER

- O-ring

1шт.

6

G34463

SPRING

- centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

8

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end #47, Ext

1шт.

9

P33080

SCREW

CAP - centering spring

1шт.

10

1343788C1

VALVE POPPET

POPPET - load check valve

2шт.

11

G33573

SPRING

- load check valve

2шт.

12

G33084

PLUG

- load check valve

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

G109445

VALVE ASSEMBLY - circuit relief, one piece cap, replaces in production, see Figure 8-310, order G109449 kit for service, Includes: Ref. 14 - 27

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring, seat

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - relief stop

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, inner

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, outer

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

25

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16" - 24 NF x 1", oval point, plated

1шт.

26

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF, plated

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

G109449

KIT

- service for G109445, includes G109447 relief valve assembly (Ref. 14 - 27) and an instruction sheet

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.
