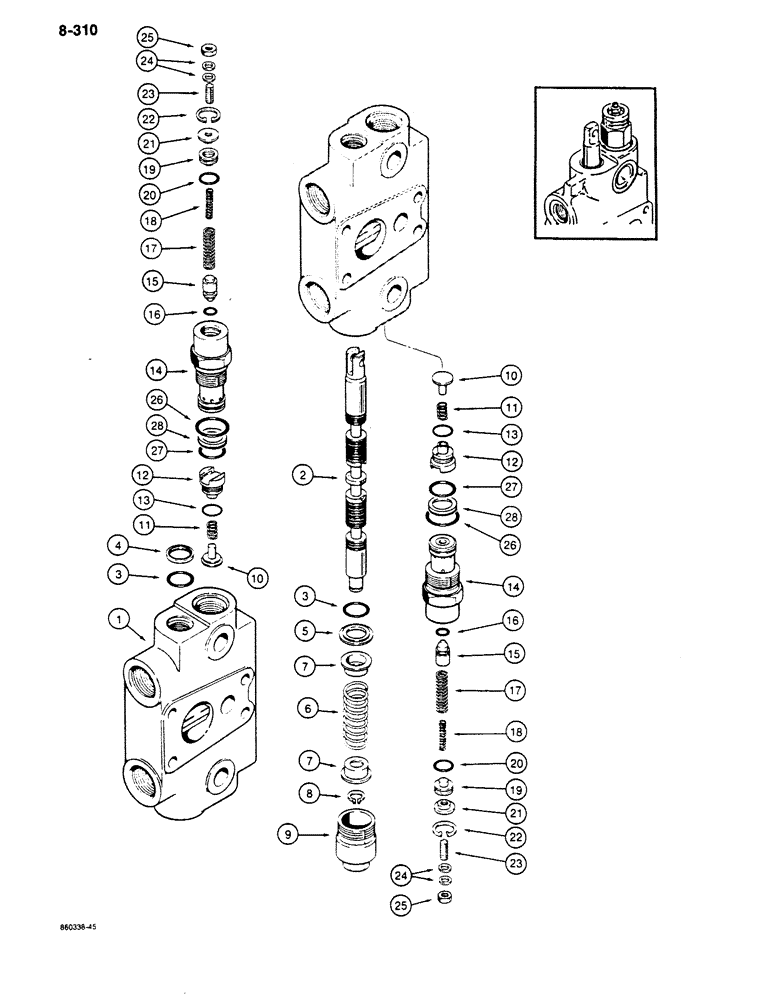

Запчасти Case 680K (8-310) - BACKHOE CONTROL VALVE, DIPPER AND BUCKET SECTIONS (08) - HYDRAULICS

G109511

VALVE

SECTION ASSEMBLY - dipper and bucket, with round retainer and snap ring at outer end of circuit relief cap, no longer available, order G109511 dipper and bucket section on Figure 8-312, Includes: Ref. 1 - 28

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Body -116, 70 Duro, .737" ID x .103" Thk

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- spool

1шт.

5

G33803

RETAINER

- O-ring

1шт.

6

G34463

SPRING

- centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

8

100-1647

SNAP RING,#47, Ext

Ring, Snap, , Spool end #47, Ext

1шт.

9

P33080

SCREW

CAP - centering spring

1шт.

10

1343788C1

VALVE POPPET

POPPET - load check valve

2шт.

11

G33573

SPRING

- load check valve

2шт.

12

G33084

PLUG

- load check valve

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

G34862

VALVE

ASSEMBLY - circuit relief, with round retainer & snap ring at outer end of circuit relief cap, used in production, no longer available, replaced by G109445 valve in production, see Figure 8-312, order G109449 kit for service, Includes: Ref. 14 - 28

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

16

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Poppet

1шт.

17

G105693

VALVE SPRING

SPRING - circuit relief valve, outer

1шт.

18

G34659

SPRING

- circuit relief valve, inner

1шт.

19

G33091

PISTON

- circuit relief valve

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Piston -014, 90 Duro, .489" ID x .070" Thk

1шт.

21

G33092

RETAINER

- circuit relief valve

1шт.

22

100-2175

SNAP RING,0.75", Int, #75

Ring, Snap, , Circuit relief valve 0.75", Int, #75

1шт.

23

G102782

SET SCREW,1/4" - 20 x 1"

- set, 1/4" - 20 NC x 1"

1шт.

24

G102781

WASHER

- special, if used

2шт.

25

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4" - 20 NC, plated

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small O-ring, if used

1шт.

G109449

KIT

- service for G34672, includes G109447 relief valve assembly (Ref. 14 - 28) and an instruction sheet

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.
