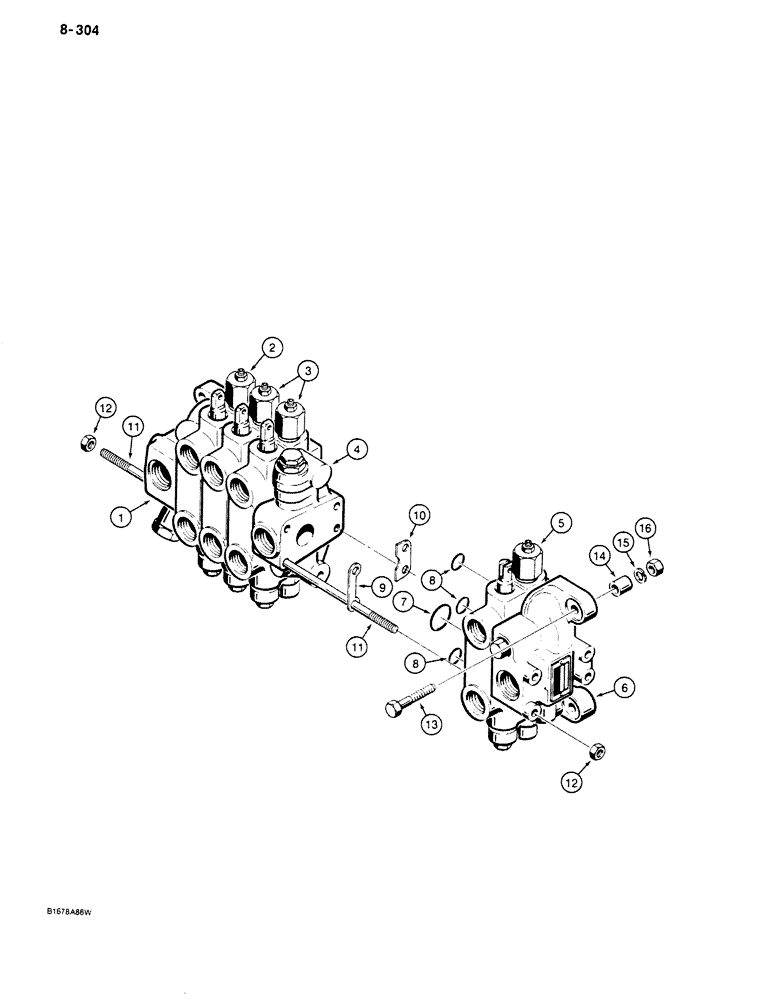

Запчасти Case 680K (8-304) - BACKHOE CONTROL VALVE, USED ON MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

G109578

VALVE

ASSEMBLY - backhoe control, 4 section valve, replaces G104040 control valve assembly, Includes: Ref. 1 - 12

1шт.

1

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, parts list Figure 8-308

1шт.

2

G109520

VALVE

SECTION ASSEMBLY - boom, parts list Figures 8-314 through 8-318, replaces G104041 boom section

1шт.

3

G109511

VALVE

SECTION ASSEMBLY - dipper and bucket, parts list Figures 8-310 and 8-312, replaces G104042 dipper and bucket section

2шт.

4

G109786

HYD VALVE SECTION

SECTION ASSEMBLY - mid-inlet, parts list Figure 8-322, replaces G34895 mid-inlet section

1шт.

5

G109521

VALVE

SECTION ASSEMBLY - swing, parts list Figures 8-324 and 8-326, replaces G105627 swing section

1шт.

6

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, parts list Figure 8-308

1шт.

7

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

6шт.

8

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

18шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

6шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

6шт.

11

G34675

TIE-ROD

STUD - tie, 3/8" - 16 NC x 15-3/4", valve sections

4шт.

12

425-106

NUT,3/8"-16, Cl 5

8шт.

13

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3", plated, mounting hardware

3шт.

14

L55306

SPACER

- valve mounting, hardware

3шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Mounting hardware 1/2"

3шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Mounting hardware 1/2"-13, G5

3шт.
