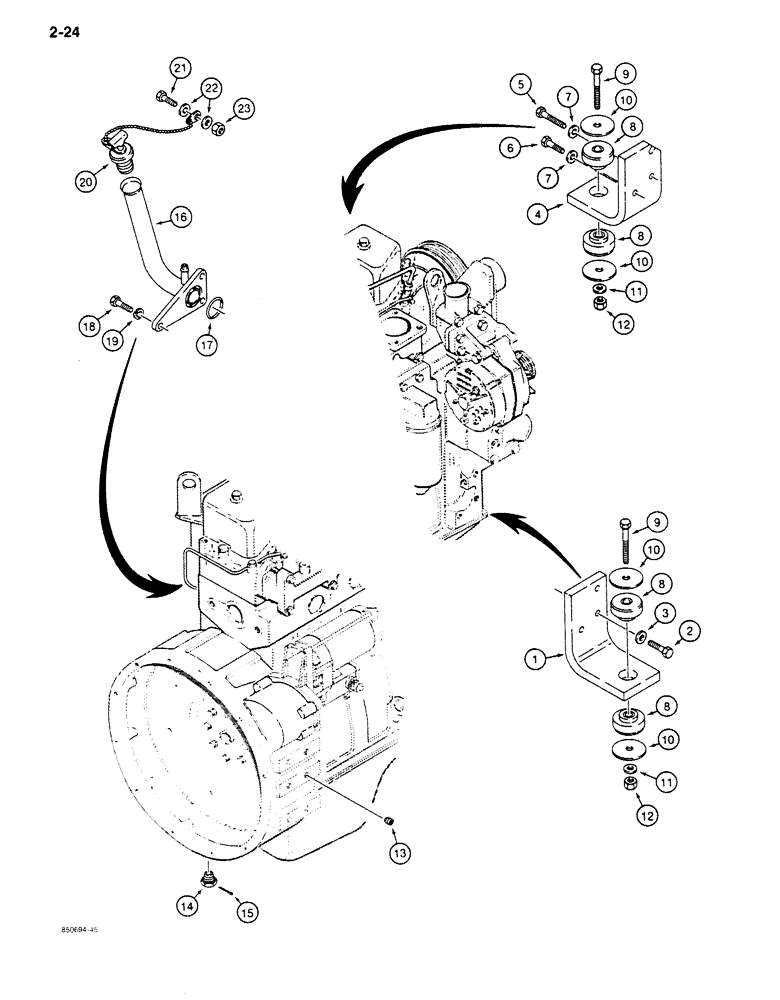

Запчасти Case 680K (2-24) - ENGINE MOUNTING (02) - ENGINE

1

D128664

BRACKET

- engine mount, right-hand side

1шт.

2

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm, plated

3шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 1/2", hardened, plated

3шт.

4

D128662

BRACKET

- engine mount, left-hand side

1шт.

5

931492R1

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

- hex head, 12 mm - 1.75 x 50 mm, plated

2шт.

6

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 40 mm, plated

1шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 1/2", hardened, plated

3шт.

8

R49482

RUBBER MOUNTING

INSULATOR - engine mount

4шт.

9

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

10

496-81011

WASHER,21/32" x 3" x .179", HDN

- 5/8", hardened, plated

4шт.

11

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 3/4", hardened, plated

2шт.

12

231-41110

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

13

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

SCREW - set, used as a plug

4шт.

14

L113178

PLUG

- bushing

1шт.

15

132-363

PIN - cotter, 7/32" x 1-1/8"

1шт.

16

L111601

TUBE,4.85, 2.3" L

- oil filler

1шт.

17

343903R1

O-RING,1.739" ID x 0.07" Width

SEAL - oil filler tube to engine

1шт.

18

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 30 mm, plated

3шт.

19

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

3шт.

20

L61111

PLUG

CAP - oil fill

1шт.

21

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

1шт.

22

495-21044

WASHER,3/8"

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

NUT - light hex, self-locking, 3/8"-16 NC, zinc plated

1шт.
