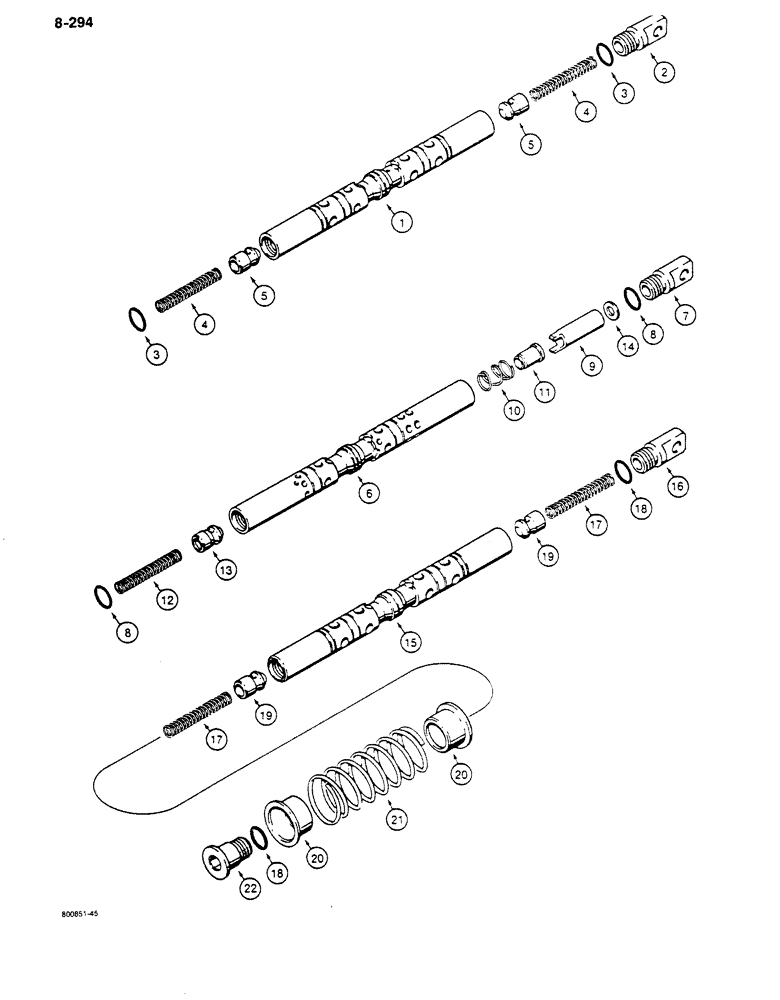

Запчасти Case 680K (8-294) - HYDRECO LOADER CONTROL VALVE, VALVE SPOOLS, BUCKET SPOOL, LIFT SPOOL, CLAM SPOOL (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

SPOOL - bucket

1шт.

2

D80672

PLUG

EYE - spool, bucket

1шт.

3

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Spool, bucket -111, 70 Duro, .424" ID x .103" Thk

2шт.

4

D24774

SPRING

- load check valve, bucket spool

2шт.

5

D80679

VALVE

POPPET - load check valve, bucket spool

2шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - lift

1шт.

7

D80672

PLUG

EYE - spool, lift

1шт.

8

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Spool, lift -111, 70 Duro, .424" ID x .103" Thk

2шт.

9

D80676

SPACER

- spool, lift

1шт.

10

D80677

SPRING

- load check valve, A port, lift spool

1шт.

11

D80678

VALVE

POPPET - load check valve, A port, lift spool

1шт.

12

D24774

SPRING

- load check valve, B port, lift spool

1шт.

13

D80679

VALVE

POPPET - load check valve, B port, lift spool

1шт.

14

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16"), Lift spool #12

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - clam

1шт.

16

D80672

PLUG

EYE - spool, clam

1шт.

17

D24774

SPRING

- load check valve, clam spool

2шт.

18

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Spool, clam -111, 70 Duro, .424" ID x .103" Thk

2шт.

19

D24785

VALVE

POPPET - load check valve, clam spool

2шт.

20

D24777

COLLAR

SEAT - spring, clam spool

2шт.

21

D80692

SPRING

- spool centering, clam

1шт.

22

D24780

PLUG

- spool, clam

1шт.
