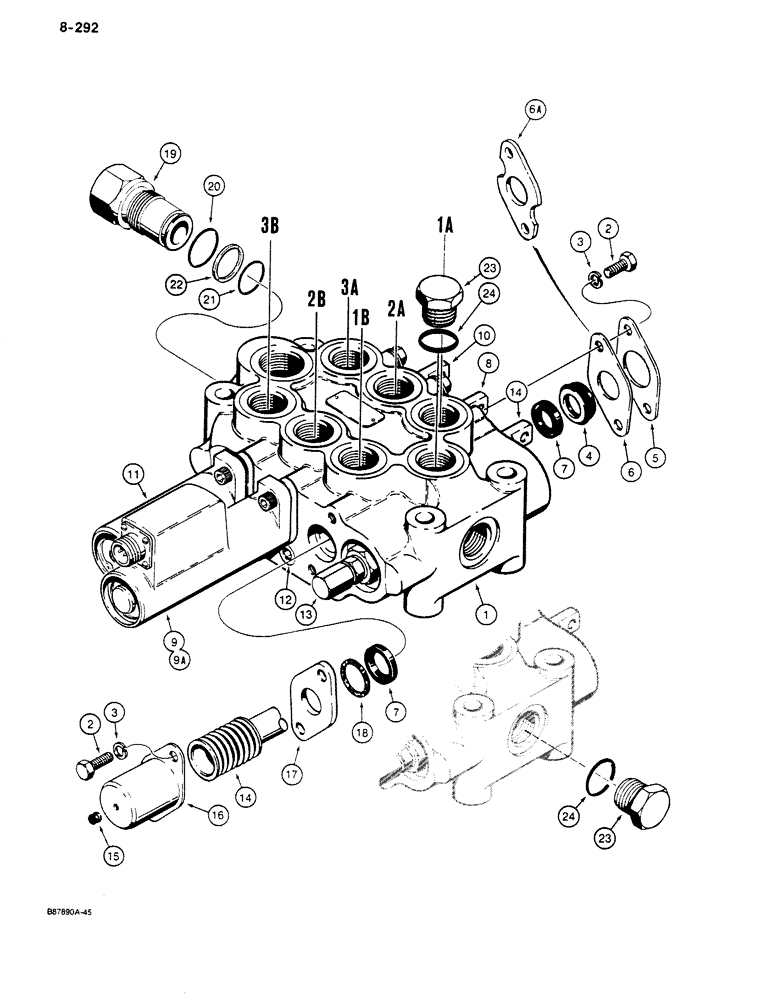

Запчасти Case 680K (8-292) - HYDRECO LOADER CONTROL VALVE - THREE SPOOL (08) - HYDRAULICS

L101841

LOCK VALVE

VALVE ASSEMBLY - loader control, three spool, Hydreco No. MVT- 025DDY24, used on models with 24 volt electrical circuit, Includes: Ref. 1 - 24

1шт.

D138276

VALVE

ASSEMBLY - loader control, three spool, Hydreco No.MVT- 025DDY37, used on models with 12 volt electrical circuit, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4", plated

8шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

D82728

RING

WIPER - spool

3шт.

5

N8212

PLATE ASSY.

PLATE - retaining, outer, spool, used with L101841 loader valve

3шт.

6

N8212

PLATE ASSY.

PLATE - retaining, inner, spool, used with L101841 loader valve

3шт.

6a

N8212

PLATE ASSY.

PLATE - retaining, used with D138276 loader valve

3шт.

7

138644A1

SEAL

- spool

6шт.

8

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - bucket, parts list Figure 8-294

1шт.

9

N7171

SPOOL

DETENT ASSEMBLY - magnetic, bucket, used with L101841 loader parts list Figure 8-298

1шт.

9a

N14619

DETENT

ASSEMBLY - magnetic, bucket, used with D138276 loader valve, parts list Figure 8-298

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - lift, parts list Figure 8-294

1шт.

11

N8211

DETENT

ASSEMBLY - lift, parts list Figure 8-296

1шт.

12

N6716

VALVE

ASSEMBLY - circuit relief, parts list Figure 8-300

4шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - main relief, parts list Figure 8-300

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - clam, parts list Figure 8-294

1шт.

15

D83096

PLUG

- spool cover, if used

1шт.

16

D145810

COVER

- clam spool

1шт.

17

D82722

PLATE

- seal retainer

1шт.

18

D82723

BACK-UP RING

RING - backup, spool seal

1шт.

19

N6583

FITTING

- special

1шт.

20

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

Outer -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

21

238-6120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

- inner

1шт.

22

L32991

RING

- backup, inner O-ring

1шт.

23

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex head, 1-1/16" - 12 NC, Includes: Ref. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.
