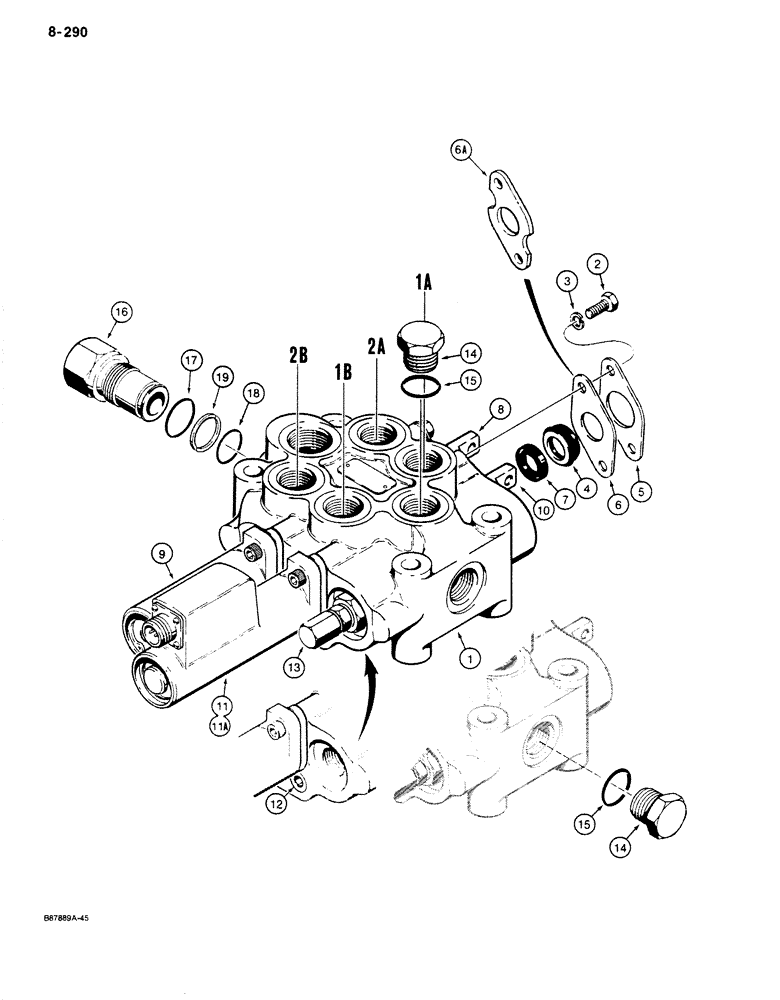

Запчасти Case 680K (8-290) - HYDRECO LOADER CONTROL VALVE - TWO SPOOL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L101840
LOCK VALVE
VALVE ASSEMBLY - loader control, two spool, Hydreco NO. MVT025DY35, used on models with 24 volt electrical circuit, Includes: Ref. 1 - 19
1шт.
D138274
VALVE
ASSEMBLY - loader control, two spool, Hydreco No. MVT025DY53, used on models with 12 volt electrical circuit, Includes: Ref. 1 - 19
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - control valve
1шт.
2
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex head, 5/16" - 18 NC x 3/4", plated
4шт.
4
D82728
RING
WIPER - spool
2шт.
5
N8212
PLATE ASSY.
PLATE - retaining, outer, spool, used with L101840 loader valve
2шт.
6
N8212
PLATE ASSY.
PLATE - retaining, inner, spool, used with L101840 loader valve
2шт.
6a
N8212
PLATE ASSY.
PLATE - retaining, used with D138274 loader valve
2шт.
7
138644A1
SEAL
- spool
4шт.
8
NSS
NOT SOLD SEPARAT
SPOOL ASSEMBLY - lift, parts list Figure 8-294
1шт.
9
N8211
DETENT
ASSEMBLY - lift, parts list Figure 8-296
1шт.
10
NSS
NOT SOLD SEPARAT
SPOOL ASSEMBLY - bucket, parts list Figure 8-294
1шт.
11
N7171
SPOOL
DETENT ASSEMBLY - magnetic, bucket, used with L101840 loader valve, parts list Figure 8-298
1шт.
11a
N14619
DETENT
ASSEMBLY - magnetic, bucket, used with D138274 loader valve, parts list Figure 8-298
1шт.
12
N6716
VALVE
ASSEMBLY - circuit relief, parts list Figure 8-300
2шт.
13
REF
INSTRUCTION
VALVE ASSEMBLY - main relief, parts list Figure 8-300
1шт.
14
218-5158
PLUG,Hex Hd, 1 1/16"-12 ORB
- hex head, 1-1/16" - 12 NC, Includes: Ref. 15 - 19
1шт.
15
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Plug
1шт.
16
N6583
FITTING
- special
1шт.
17
238-5216
O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro
Outer -216, 70 Duro, 1.109" ID x .139" Thk
1шт.
18
238-6120
O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro
- inner
1шт.
19
L32991
RING
- backup, inner O-ring
1шт.
Выбрано товаров: 23
