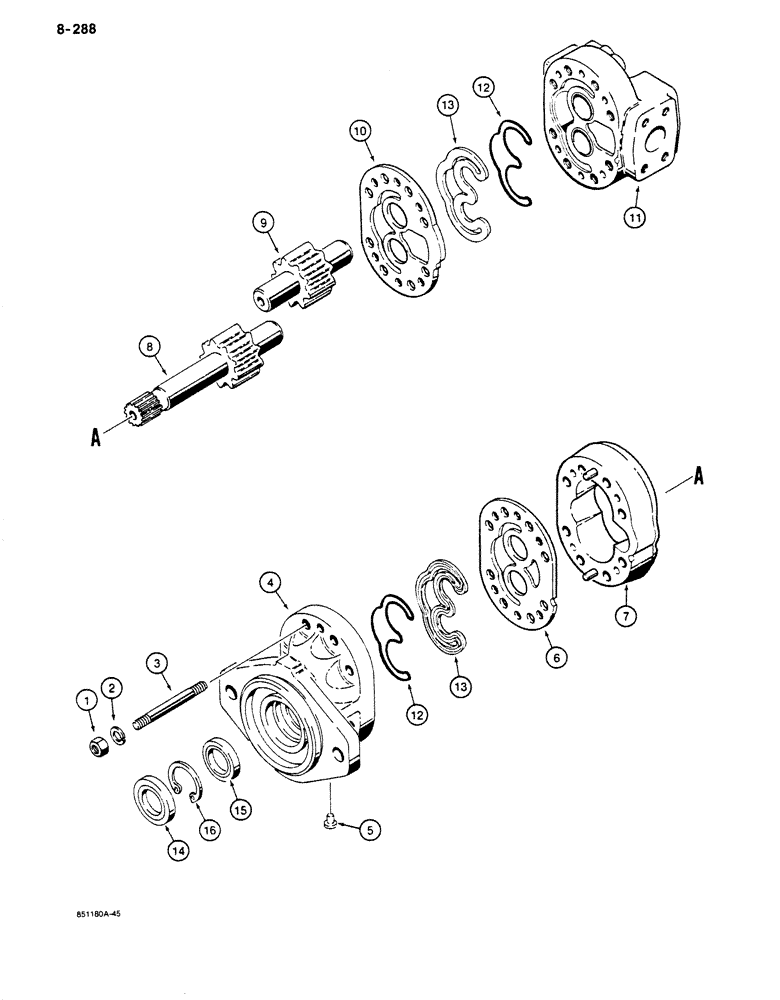

Запчасти Case 680K (8-288) - D127917 EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

D127917

PUMP

ASSEMBLY - equipment hydraulic, rear mounted, Sperry Vickers No. G20C-2W15V1-B12A30-S22, Includes: Ref. 1 - 16

1шт.

1

425-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC, plated

8шт.

2

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

3

50-2115T1

STUD

- cover

8шт.

4

50-2485T1

COVER

- end

1шт.

5

N60210

PLUG

- end cover

1шт.

6

50-2112T1

PLATE

- wear, end cover

1шт.

7

N9029

HOUSING

- gear, center

1шт.

8

N9823

GEAR WHEEL

GEAR - drive, equipment hydraulic circuit

1шт.

9

N60295

GEAR WHEEL

GEAR - driven, equipment hydraulic circuit

1шт.

10

50-2116T1

PLATE

- wear, port end cover

1шт.

11

N9822

COVER ASSY

COVER - port end

1шт.

112352A1

SEAL KIT

- seal, Includes: Ref. 12 - 16

1шт.

12

N60243

SEAL

- special

2шт.

13

N60305

RETAINER

- seal

2шт.

14

50-2109T1

SEAL

- shaft, outer, if used

1шт.

15

50-2111T1

SEAL

- shaft, inner

1шт.

16

A49490

CIRCLIP

RING - snap, seal retaining

1шт.
