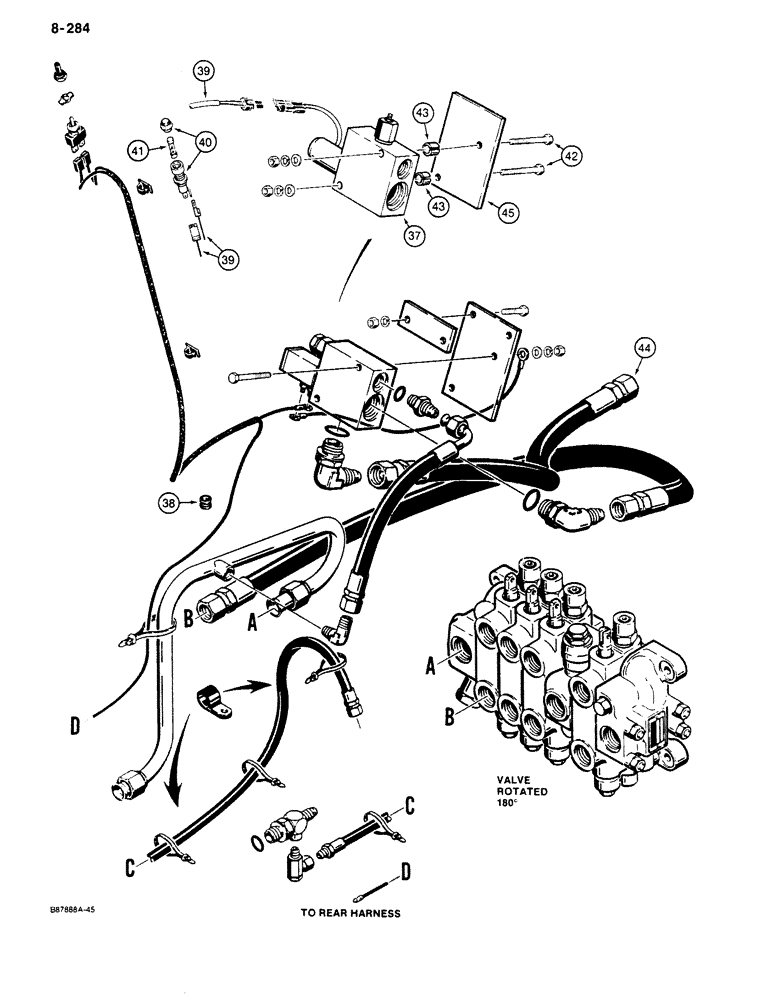

Запчасти Case 680K (8-284) - BACKHOE BOOM LOCK HYD. & ELECT. CIRCUIT, SPECIAL PARTS USED ON MODELS W/12 VOLT ELECTRICAL CIRCUIT (08) - HYDRAULICS

37

D144935

VALVE

ASSEMBLY - solenoid, boom lock, parts list Figure 8-332

1шт.

38

248-1349

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

- harness

1шт.

39

D139531

HARNESS

- boom lock

1шт.

40

376852R91

HOUSING

RETAINER - fuse, at backhoe control tower

1шт.

41

223-38

FUSE,3 Amp, Type 3AG

- 3 ampere, boom lock

1шт.

42

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex head, 5/16" - 18 NC x 3-1/2", plated, may be used with D139523 or D139524 solenoid

2шт.

43

D122882

SPACER

- valve mounting, may be used with D139523 or D139524 solenoid

2шт.

44

D140870

HOSE ASSY.

HOSE - 20-1/16" (510 mm) long, boom lock valve

1шт.

45

D140854

BRACKET - valve mounting, Serial Range: welded-chassis

1шт.
