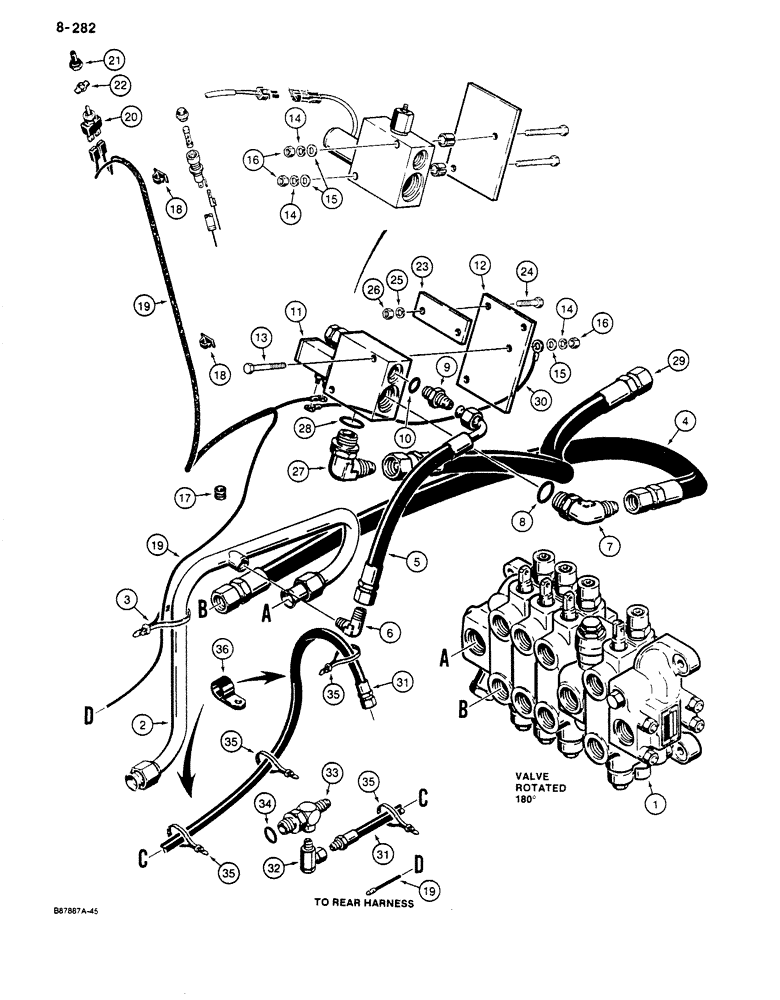

Запчасти Case 680K (8-282) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware, see parts list Figure 8-304

1шт.

2

L105426

TUBE

- backhoe return

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

L105421

HOSE

- 20" (508 mm) long, to boom lock valve

1шт.

5

L105422

HOSE

- 12" (305 mm) long, Serial Range: valve-return

1шт.

6

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Includes: Ref. 8 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 10 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, boom lock, used on models with 24 volt electrical circuit, parts list Figure 8-330 or 8-332

1шт.

12

L108452

BRACKET

- valve mounting

1шт.

13

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex head, 5/16" - 18 NC x 3", plated

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

495-21038

WASHER,5/16"

2шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

2шт.

17

L13765

GROMMET

- harness, used on models with 24 volt electrical circuit

1шт.

18

L54606

CLIP

- harness, to control tower

2шт.

19

L110680

HARNESS

- boom lock, used on models with 24 volt electrical circuit

1шт.

20

D67251

SWITCH

- toggle, boom lock

1шт.

21

L101998

BOOT

- toggle switch

1шт.

22

L105735

PLATE ASSY.

PLATE - trim

1шт.

23

L106680

SUPPORT ASSY.

SUPPORT - brace, valve mounting, used on models with 24 volt electrical circuit

1шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated, if used

2шт.

25

492-11038

LOCK WASHER,3/8"

if used 3/8"

2шт.

26

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

2шт.

27

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Includes: Ref. 28 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

29

L105421

HOSE

- 20" (508 mm) long, boom lock valve, used on models with 24 volt electrical circuit

1шт.

30

L16409

ELECTRICAL WIRE

WIRE - ground, used on models with 24 volt electrical circuit

1шт.

31

L107763

HOSE,0.25" ID x 100.00"

- 100" (2500 mm) long, flow control valve to backhoe control valve upper boom section tee, see Figure 8-272, Ref. 2 for tee, if used

1шт.

32

L59038

LOCK VALVE

VALVE - check, flow control valve, if used

1шт.

33

L106770

TEE

- special, check valve to flow control valve lower port, steering supply hose, Ref. 23 on Figure 5-148, attaches to tee, may be replaced on some models by 218-5060 adapter, Ref. 28 on Figure 5-148, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

8шт.

36

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

Hose, Use existing hardware, If used 3/4", Insul, 1/2" Bolt

2шт.
