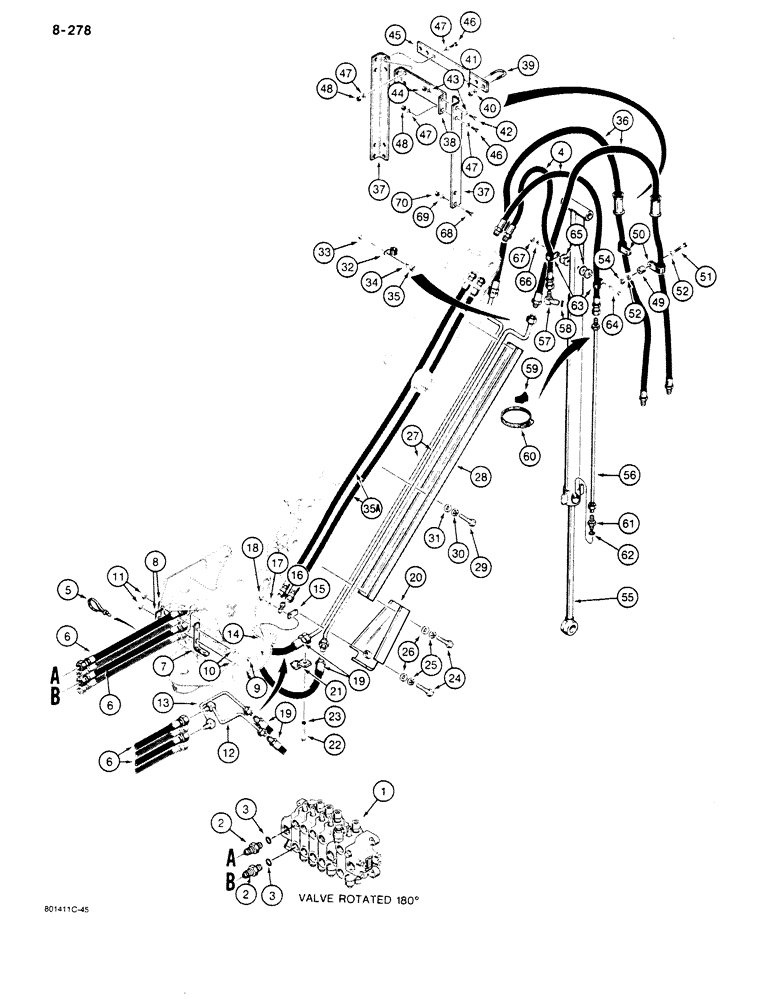

Запчасти Case 680K (8-278) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly, components, and mounting hardware, see parts list Figure 8-304

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

4

L100365

HOSE,0.50" ID x 28.00"

to Extension Cylinder 0.50" ID x 28.00"

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

L55955

HOSE ASSY.

HOSE - 26-1/2" (673 mm) long, valve to swing tower, to bucket cylinder, lower hose not used on models with boom lock, see page 8-283

2шт.

Bucket hoses at valve are to be reversed on models with hand swing.

1шт.

7

L100183

BRACKET

- hose support

1шт.

8

L102643

CLAMP

- hose

2шт.

9

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8"-16 NC x 2-3/4", plated

2шт.

10

495-21044

WASHER,3/8"

2шт.

11

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

12

L78383

TUBE,0.75" OD

- to bucket cylinder, right-hand

1шт.

13

L78385

TUBE,0.75" OD

- to bucket cylinder, left-hand

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", plated

2шт.

15

L78192

SPACER

- tube

2шт.

16

L58147

CLAMP

- tube

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

L61184

HOSE

-27-1/2" (699 mm) long, to bucket cylinder tubes, lower

2шт.

20

L78387

BLADE

GUARD - bucket tubes, lower

1шт.

21

L58147

CLAMP

- hose

2шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

61-75040

HEX SOC SCREW,Btn Hd, 1/2"-13 x 2 1/2"

BOLT - hex socket button head, 1/2" - 13 NC x 2-1/2", grade 8

2шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

26

95-8

WASHER,1/2"

flat 1/2"

2шт.

27

L100840

TUBE,0.75" OD

- to bucket cylinder

2шт.

28

L79141

SHIELD

GUARD - tube

1шт.

29

164-573

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 1 1/2"

BOLT - hex socket button head, 1/2" - 13 NC x 1-1/2", grade 8

2шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

31

95-8

WASHER,1/2"

flat 1/2"

2шт.

32

51200329

CLIP

CLAMP - bucket tube upper

2шт.

33

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

35a

720-4300

HOSE ASSY.

HOSE - 110" (2794 mm) long, to bucket cylinder, center

2шт.

Illustration is incorrect. Part has a male on one end and a female on the other.

1шт.

36

L109817

HOSE,0.75" ID x 98.00", SAE 100R12

- 98" (2489 mm) long, to bucket cylinders, upper

2шт.

37

L78977

ANGLE

- hose support, long

2шт.

38

L104252

BRACKET

- hose support

1шт.

39

L104253

U-BOLT

- hose

2шт.

40

495-21038

WASHER,5/16"

4шт.

41

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

42

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

2шт.

43

495-21044

WASHER,3/8"

4шт.

44

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

45

L104254

BAR

- hose support

1шт.

46

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

4шт.

47

495-21044

WASHER,3/8"

8шт.

48

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

49

L14794

SPACER

-, Serial Range: hose-support

2шт.

50

D40471

CLAMP

- bucket cylinder hose

2шт.

51

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

52

495-21044

WASHER,3/8"

4шт.

54

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

55

G101259

CYLINDER BLOCK

CYLINDER ASSEMBLY - extension, parts list Figure 8-358

1шт.

56

L54652

TUBE

- extension cylinder

1шт.

57

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 58

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

59

D38648

BLOCK

SPACER - tube clamp

2шт.

60

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - tube to extension cylinder

2шт.

61

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 62 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

63

R21385

CLAMP

- hose to extension cylinder

2шт.

64

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex head, 3/8" - 16 NC x 3-1/2", plated

1шт.

65

F12215

WASHER

- special

4шт.

66

492-11038

LOCK WASHER,3/8"

1шт.

67

425-106

NUT,3/8"-16, Cl 5

1шт.

68

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

4шт.

69

495-21044

WASHER,3/8"

4шт.

70

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.
