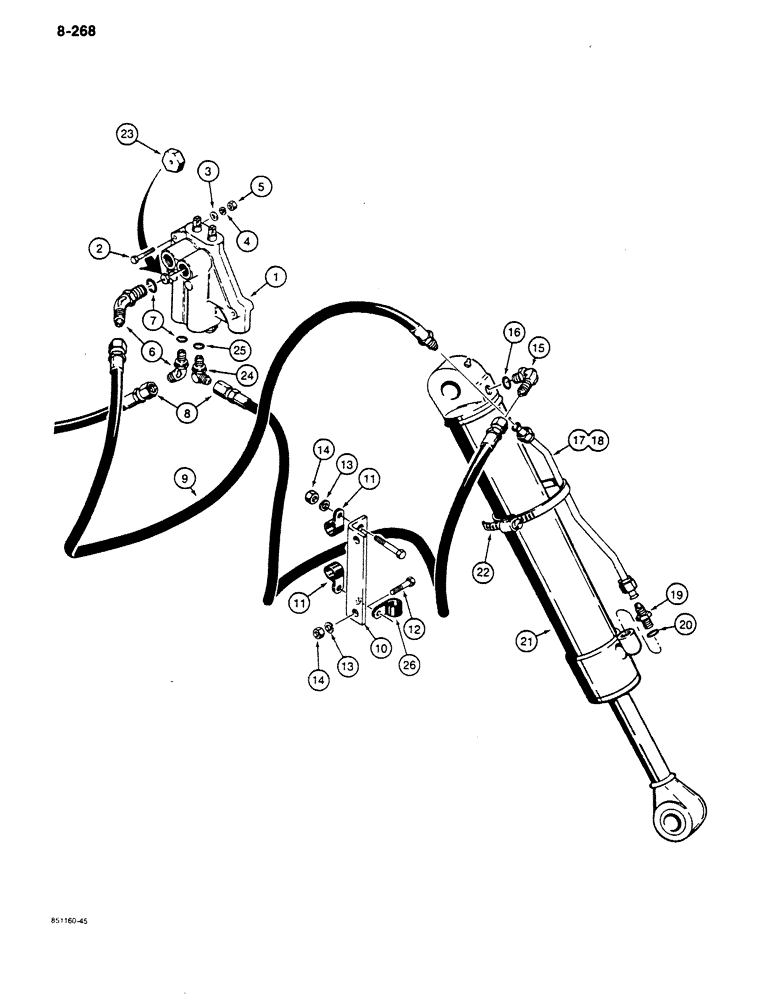

Запчасти Case 680K (8-268) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

DR124856

VALVE

ASSEMBLY - stabilizer, parts list Figure 8-302

1шт.

2

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex head, 5/16" - 18 NC x 2-3/4"

2шт.

3

495-21038

WASHER,5/16"

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

2шт.

6

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Includes: Ref. 7

3шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

8

L76752

TUBE

HOSE - 65" (1651 mm) long, stabilizer control valve to stabilizer cylinder, closed end

2шт.

9

L71092

HOSE ASSY.

HOSE - 58" (1473 mm) long, stabilizer control valve to stabilizer cylinder, rod end

2шт.

10

L55308

BRACKET

- hose clamp, attaches to backhoe valve mounting plate

2шт.

11

NLS

NO LONGER SERVICED

- hose

4шт.

12

354276X1

SCREW

BOLT - hex head, 1/2" - 13 NC x 1-1/4", plated

8шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

15

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

17

L103790

TUBE,0.625" OD x 14.6, 4.28" L

- stabilizer cylinder, left-hand

1шт.

18

L103792

TUBE,0.625" OD

- stabilizer cylinder, right-hand

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, Includes: Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

21

1986853C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - stabilizer, parts list Figure 8-348

2шт.

22

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to cylinder

2шт.

23

D61933

RESTRICTOR

- upper control valve port

2шт.

24

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

26

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type 3/4", Insul, 1/2" Bolt

2шт.
