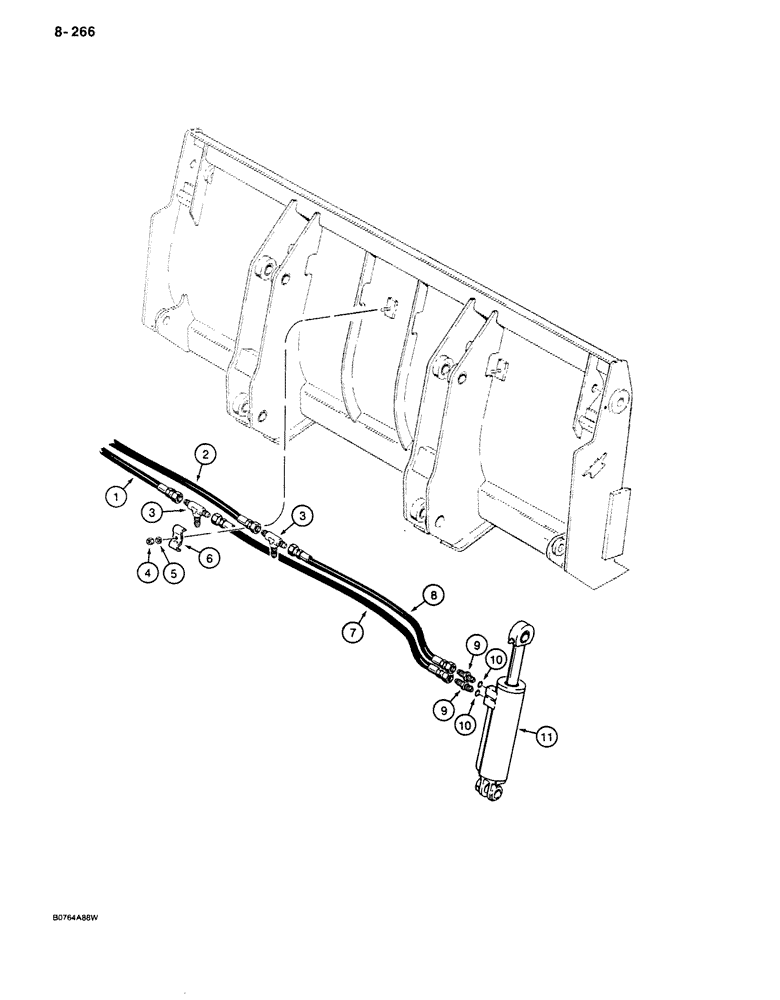

Запчасти Case 680K (8-266) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, FOR D139473 1-1/2 CUBIC YARD BUCKET (08) - HYDRAULICS

1

100630A1

HOSE

- 36" (914 mm) long, lower left-hand

1шт.

2

100632A1

HOSE

- 54" (1372 mm) long, upper left-hand

1шт.

3

218-806

TEE,7/8"-14, 37 Degree, Blkhd

Hydraulic, Clam cylinder hoses 7/8"-14, 37º, Blkhd

2шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

S64754

CLAMP - hose support

3шт.

7

100632A1

HOSE

- 53" (1346 mm) long, lower right-hand

1шт.

8

D143220

HOSE

- 37" (940 mm) long, upper right-hand

1шт.

9

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, cylinder to hose, Incl. Ref. 10 7/8"-14, 37º x 3/4"-16, O-Ring

4шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

11

D143217

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, parts list Figure 8-346

2шт.
