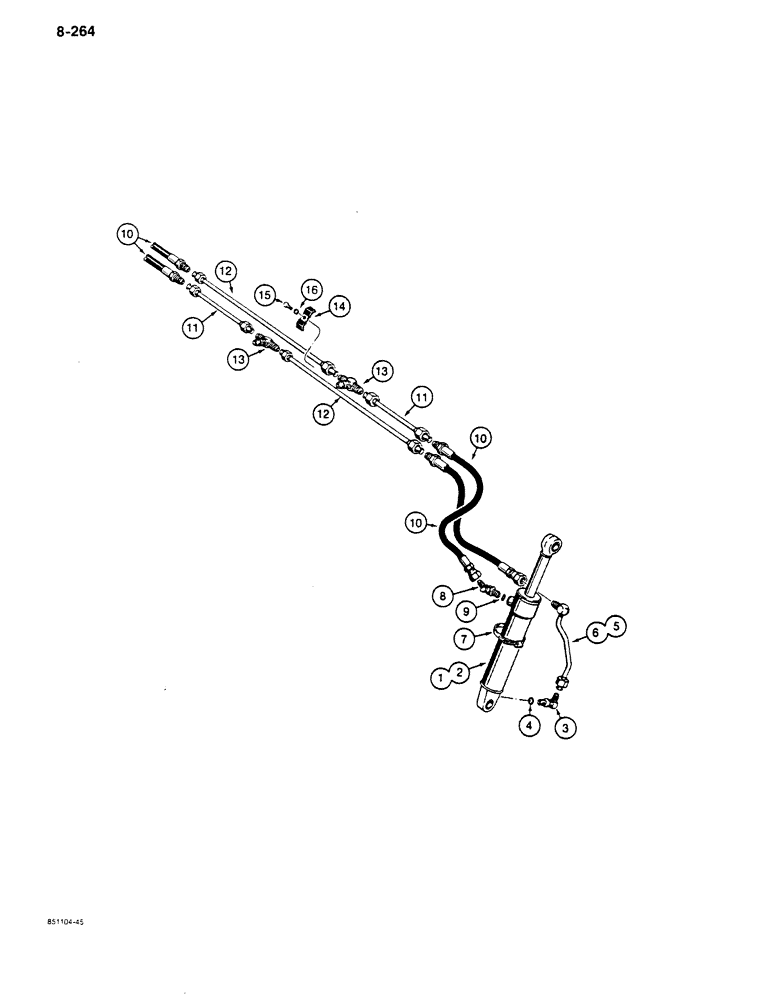

Запчасти Case 680K (8-264) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, FOR L76489 1-1/4 CUBIC YARD BUCKET (08) - HYDRAULICS

1

G101226

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, right-hand, parts list Figure 8-344

1шт.

2

G101227

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, left-hand, not shown, parts list Figure 8-344

1шт.

3

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, Includes: Ref. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

5

D46957

TUBE

- closed end right-hand cylinder

1шт.

6

D46955

TUBE

- closed end left-hand cylinder

1шт.

7

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

8

6802-10-10

FITTING

ELBOW - 45 degree, adjustable, Includes: Ref. 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

10

36547

HOSE

- 19" (482 mm) long, Serial Range: tube-cylinder

4шт.

11

L53589

TUBE,0.625" OD x 14.8, 1.5" L

- 15-1/2" (394 mm) long, tee to cylinder

2шт.

12

L53591

TUBE,0.625" OD x 34.8, 1.5" L

- 35-1/2" (902 mm) long, tee to cylinder

2шт.

13

9402983

TEE,7/8"-14, 37 Degree

- male, swivel

2шт.

14

D40236

CLAMP

- tube

3шт.

15

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

3шт.

16

492-11038

LOCK WASHER,3/8"

3шт.
