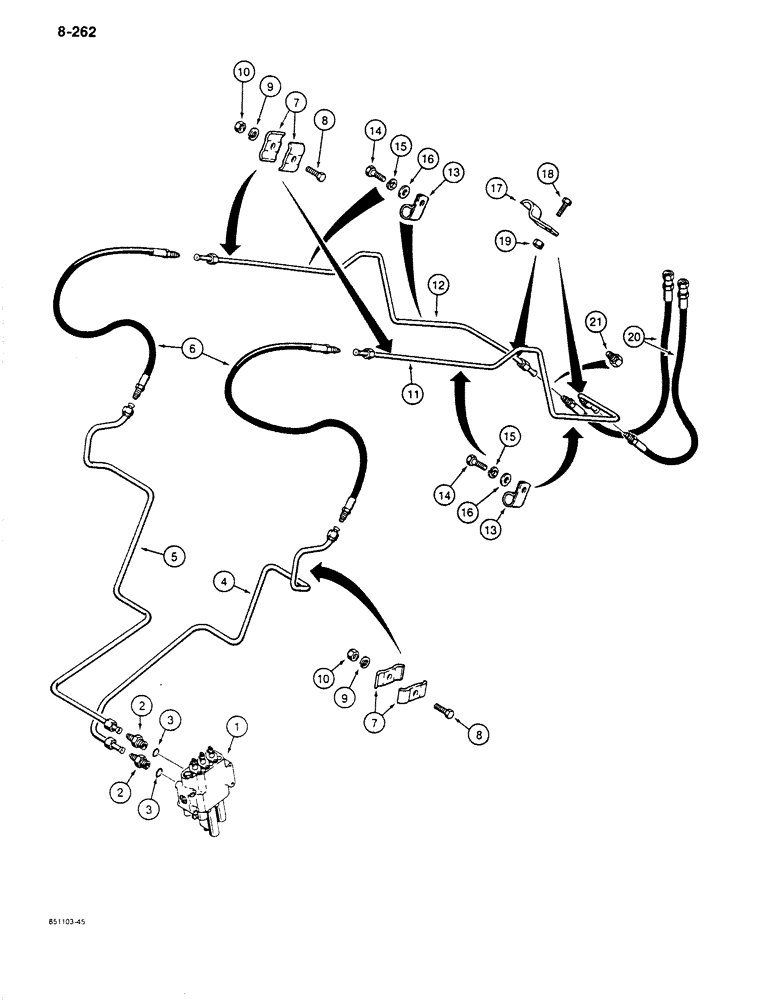

Запчасти Case 680K (8-262) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, three spool, for correct assembly and components, see parts list Figure 8-292

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

4

L107576

TUBE,0.625" OD x 34.19, 11.22" L

- control valve to bucket, clam cylinder, right-hand

1шт.

5

L107574

TUBE,0.625" OD

- control valve to bucket, clam cylinder, left-hand

1шт.

6

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - 37" (940 mm) long, control valve to lift frame and tubes

2шт.

7

L100272

CLAMP

- tube

8шт.

8

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex had, 5/16" - 18 NC x 1-1/4", plated

4шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

4шт.

11

L107578

TUBE,0.625" OD

- bucket, clam cylinder, right-hand

1шт.

12

L107572

TUBE,0.625" OD

- bucket, clam cylinder, left-hand

1шт.

13

D34174

CLAMP,5/8", 1/2" Bolt

- tube

4шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

495-21044

WASHER,3/8"

4шт.

17

L104914

CLAMP

- tube

2шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

19

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

20

L50629

HOSE ASSY.

HOSE - 48" (1219 mm) long, lift frame tubes to clam cylinders, one male and one female fitting

2шт.

21

218-776

PLUG,7/8"-14, 37 Degree

- hex head, if used, not required when clam bucket is attached

2шт.
