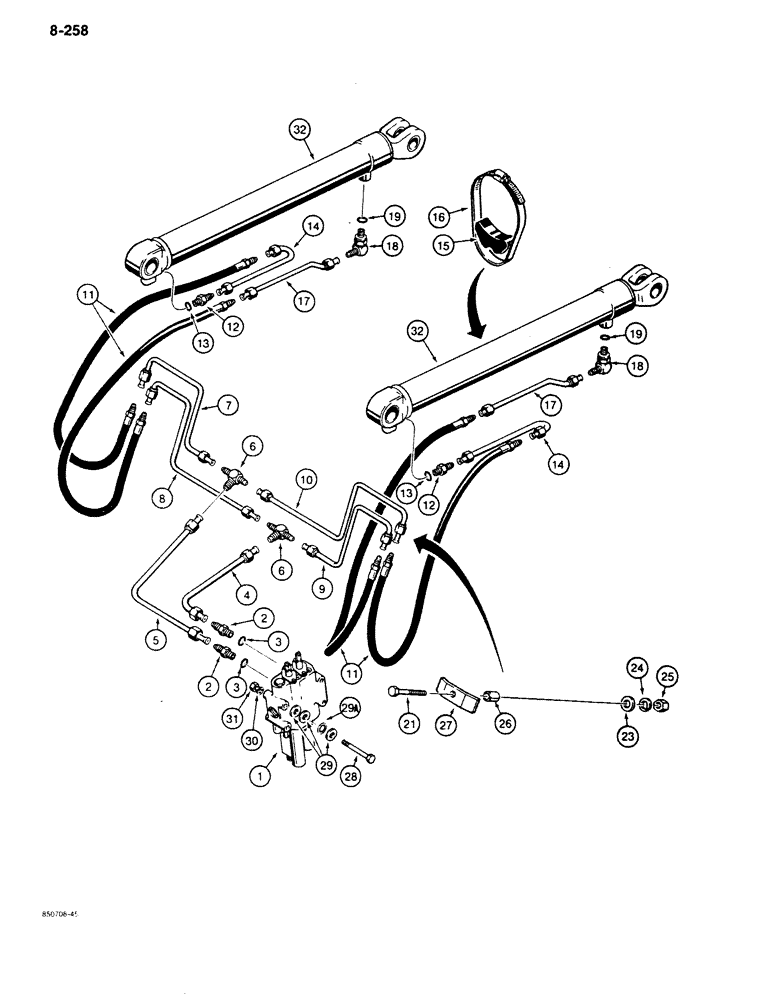

Запчасти Case 680K (8-258) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see parts list Figure 8-290 or 8-292

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

4

L103163

TUBE,0.75" OD x 13.85, 4.34" L

- lift spool upper port to tee

1шт.

5

L103157

TUBE,0.75" OD x 15.49, 13.34" L

- lift spool lower port to tee

1шт.

6

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- male, loader lift tubes

2шт.

7

L103115

TUBE,0.625" OD

- tee to left-hand hose

1шт.

8

L103113

TUBE,0.625" OD

- tee to left-hand hose

1шт.

9

L103100

TUBE,0.625" OD x 9.64, 11.67" L

- tee to right-hand hose

1шт.

10

L103098

TUBE,0.625" OD x 22.23, 8.86" L

- tee to right-hand hose

1шт.

11

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - 37" (940 mm) long, control valve to lift cylinders

4шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, Includes: Ref. 13

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

14

L103144

TUBE,0.625" OD x 19, 2.5" L

- lift cylinder, closed end

2шт.

15

D38648

BLOCK

SPACER - rubber, tube and cylinder

4шт.

16

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

4шт.

17

L103146

TUBE,0.625" OD x 15.9, 1.65" L

- lift cylinder, rod end

2шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, Includes: Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

23

495-21044

WASHER,3/8"

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- tube clamp

2шт.

27

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

28

413-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

- hex head, 1/2" - 13 NC X 4-3/4", plated

3шт.

29

95-21056

WASHER,1/2"

- flat, , plated 1/2"

6-9шт.

29a

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - internal tooth lock, 1/2", plated, if used

1шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

31

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

32

G103457

CYLINDER BLOCK

CYLINDER ASSEMBLY - hydraulic, loader lift, parts list Figure 8-340

2шт.
