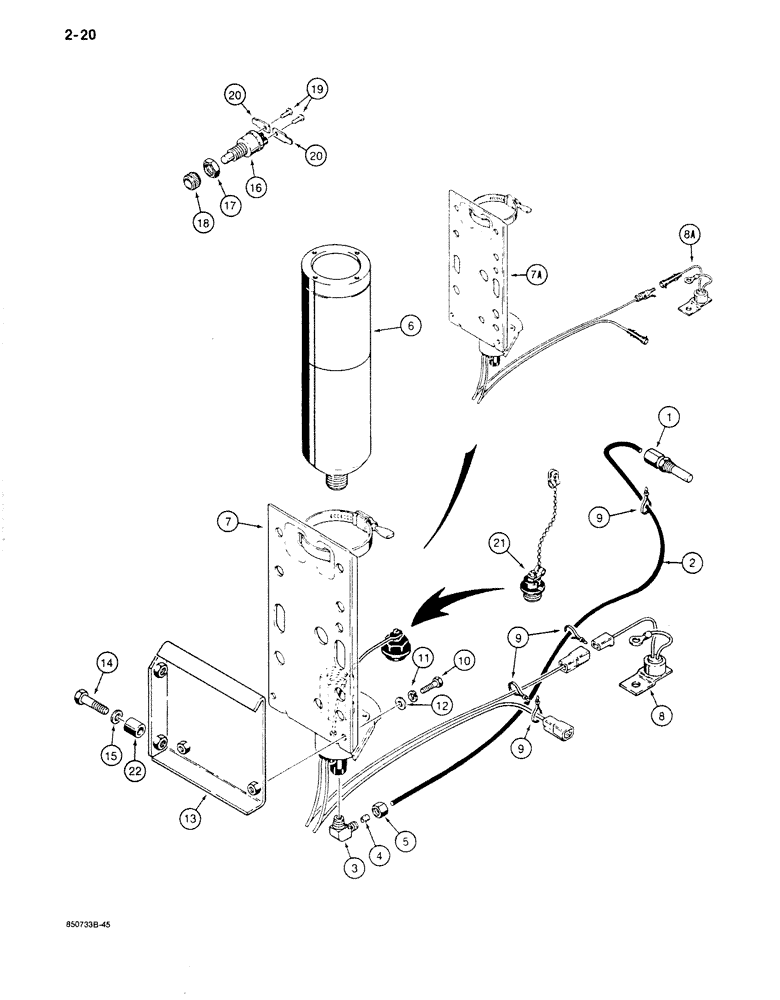

Запчасти Case 680K (2-20) - COLD START SYSTEM (02) - ENGINE

1

P4237543

FITTING

NOZZLE ASSEMBLY - cold start injector, dual orifice nozzle, replaces existing manifold plug, mounts to side of manifold, component parts not serviced separately

1шт.

2

A171941

HOSE ASSY.

TUBE - valve to injector nozzle, 4 ft (121.9 cm) long

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, Incl. Ref 3 - 5 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

4

121322

SLEEVE,Ball Type, 1/8" tube

- fitting, compression nut, 1/8", brass

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

NUT - compression, fitting, 1/8", brass

1шт.

6

A171940

CYLINDER

CONTAINER - starting fluid cylinder

1шт.

7

A172516

VALVE

ASSEMBLY - 3 cc starting fluid injection, with bracket, component parts not serviced separately, used on models with 24 volt electrical circuit

1шт.

7a

D137278

VALVE

ASSEMBLY - 3 cc starting fluid injection, with bracket com- ponent parts not serviced separately, used on models with 12 volt electrical circuit

1шт.

8

A171943

IGNITION SWITCH

SWITCH - temperature, circuit breaking, uses existing intake manifold mounting hardware, used on models with 24 volt electrical circuit

1шт.

8a

D137305

THERMOSTAT

SWITCH - temperature, circuit breaking, uses existing intake manifold mounting hardware, used on models with 12 volt electrical circuit

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2-4шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

4шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

495-11028

WASHER,1/4", SAE

4шт.

13

D133313

BRACKET

- valve mounting, attaches to left-hand upper support frame

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", plated

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 3/8", plated

2шт.

L72776

SWITCH

ASSEMBLY - cold start, includes screws, must also order (2) L59682 blade terminals (Ref. 20) Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

SWITCH - cold start

1шт.

17

H275784

JAM NUT

- hex, jam, special

1шт.

18

D73741

NUT

- special

1шт.

19

459-1104

SCREW,Slotted Pan Hd, #10-32 x 1/4"

- machine, round head slotted, No. 10 - 32 NF x 1/4"

2шт.

20

L59682

TERMINAL CONNECTOR

TERMINAL - blade, used with L72776

2шт.

21

N8826

PLUG

- with chain, place in starting fluid valve when starting fluid canister is not in place, if used.

1шт.

22

D95745

BUSHING

SPACER - bracket

2шт.
