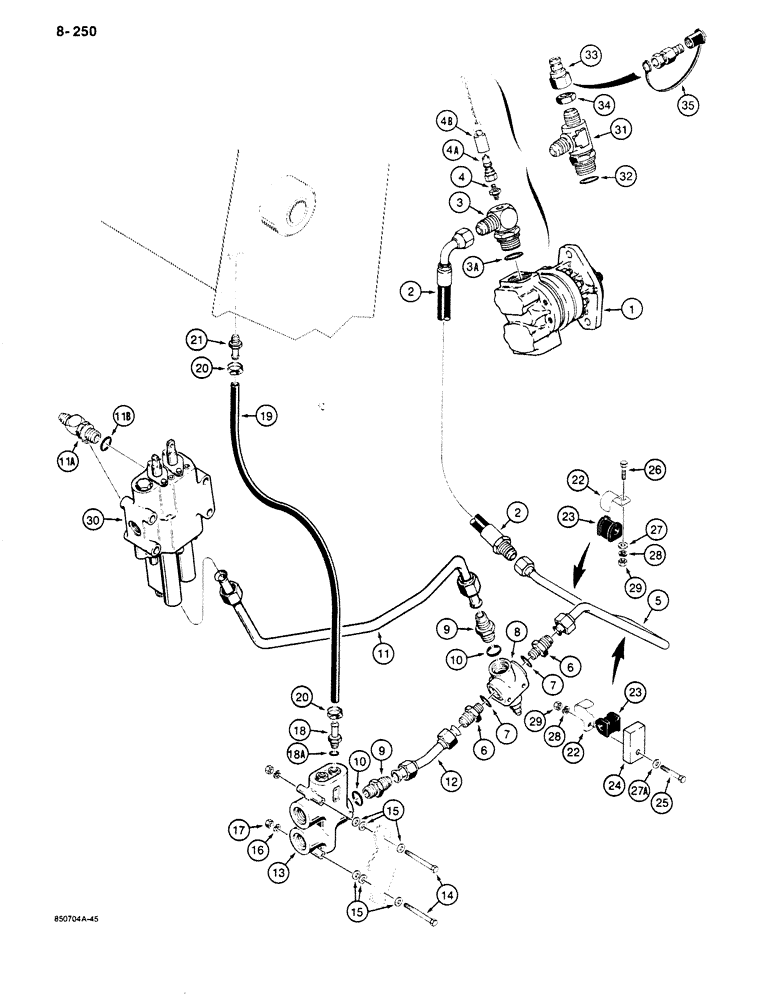

Запчасти Case 680K (8-250) - EQUIP. HYD. SYS., BACKHOE SPLY FROM STEER. PUMP TO RELIEF VALVE, FLOW CTRL VALVE & LOADER CTRL VALVE (08) - HYDRAULICS

1

D127916

PUMP

ASSEMBLY - front, steering hydraulic, parts list Figure 8-286, for mounting hardware see page 8-249

1шт.

2

L110999

HOSE

- 23" (584 mm) long, hydraulic pump to backhoe relief valve

1шт.

3

H289058

ADAPTER

ELBOW - 90 degree, special, if used, may be replaced by a tee on some models, Includes: Ref. 3A

1шт.

3a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

4

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, , Straight, Pressure check, if used 1/4"-18 NPTF

1шт.

4a

S206607

DISC

COUPLING - pressure check, if used

1шт.

4b

S206608

CAP

- dust, if used

1шт.

5

L110972

TUBE,0.75" OD

- to backhoe relief valve

1шт.

6

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

8

D131348

LOCK VALVE

VALVE ASSEMBLY - relief, backhoe, parts list Figure 8-336

1шт.

9

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 10

2шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

11

D127014

TUBE

- relief valve return

1шт.

11a

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- relief valve to oil cooler return line, see Ref. 8 on Figure 8-254, Includes: Ref. 11B

1шт.

11b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Tee

1шт.

12

L103972

TUBE,0.75" OD x 6.4, 1.85" L

- relief valve to flow control valve

1шт.

13

L102602

LOCK VALVE

VALVE ASSEMBLY - flow control, hydraulic, parts list Figure 8-334

1шт.

14

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex head, 5/16" - 18 NC x 3-3/4", plated

2шт.

15

496-81002

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 5/16", plated, hardened

6шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

2шт.

18

217-193

FITTING,1/4" Hose Barb x 7/16" - 20 Male ORB

- stem, straight, hose, Includes: Ref. 18A

1шт.

18a

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, Stem fitting

1шт.

19

L102879

HOSE ASSY.

HOSE - 31" (787 mm) long, flow control

1шт.

20

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

21

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

- stem, straight, hose, at hydraulic reservoir

1шт.

22

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

- tube, backhoe relief

2шт.

23

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

2шт.

24

L107114

SPACER

- tube clamp

1шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", plated

1шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

1шт.

27

495-21044

WASHER,3/8"

1шт.

27a

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 3/8", plated, hardened

1шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see parts list Figure 8-290 or 8-292

1шт.

31

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- adjustable, male, if used, replaces elbow used on some models, Includes: Ref. 32

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

33

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING ASSEMBLY - quick disconnect, component parts not serviced separately, if used, Includes Ref. 34

1шт.

34

425-1120

NUT,1 1/4"-12, G5

- hex, 1-1/4" - NF, plated

1шт.

35

H434163

DUST CAP

CAP - dust, coupling, if used

1шт.
