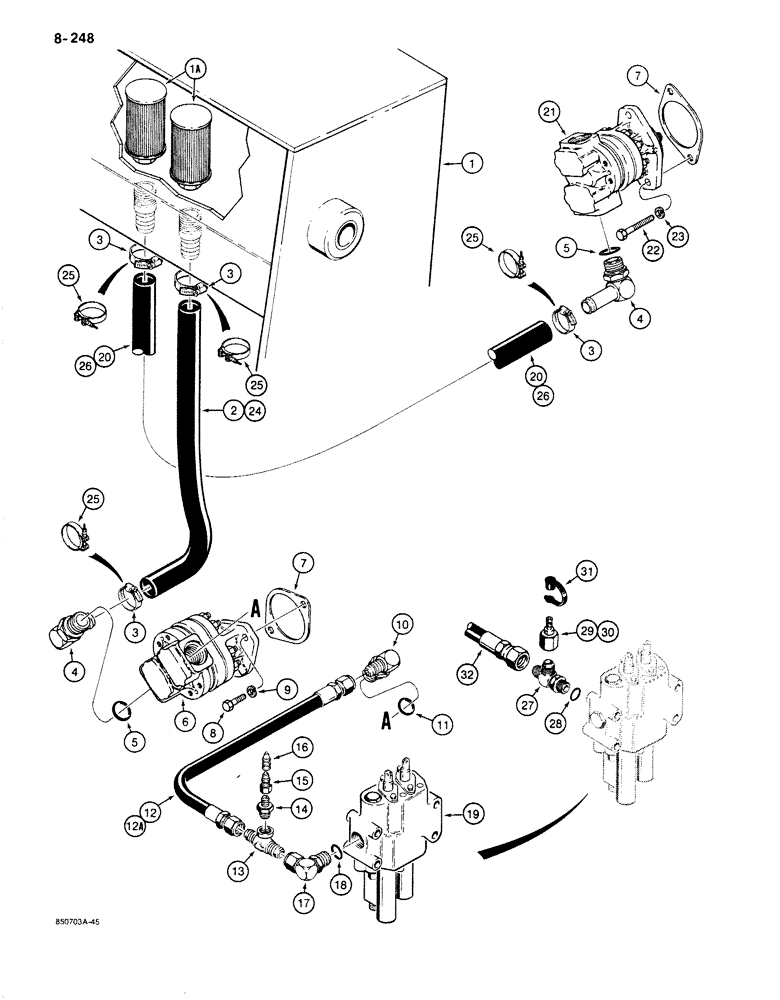

Запчасти Case 680K (8-248) - EQUIPMENT HYDRAULIC SYSTEM, RESERVOIR TO HYDRAULIC PUMPS AND LOADER CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR - hydraulic, see Figure 9-426

1шт.

1a

D128526

FILTER CARTRIDGE

SCREEN - suction, reservoir filter

2шт.

2

L103811

HOSE,1.25" ID x 30.00", SAE 100R1A

Suction, to Rear Pump, Used with Ref. 3 Clamp, No Longer Available, Order S119472 Hose and D135549 Clamp, Ref. 24 and 25 1.25" ID x 30.00", SAE 100R1A

1шт.

3

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - worm screw type, hose, if used

4шт.

4

8046955

FITTING

- stem, 90 degree, adjustable, Includes: Ref. 5

2шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow, Stem fitting

1шт.

6

D127917

PUMP

ASSEMBLY - rear, equipment hydraulic, parts list Figure 8-288

1шт.

7

144169C2

GASKET,0.79mm Thk

- rear pump to transmission, from, Serial Range: pump-engine

2шт.

8

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, hydraulic pump outlet, Includes: Ref. 11 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

12

D140482

HOSE ASSY.

HOSE - 27-9/16" (700 mm) long, rear pump to loader control valve, used with 2 spool valve on models with Ref. 17 elbow at loader valve side inlet port

1шт.

12a

L55955

HOSE ASSY.

HOSE - 26-1/2" (673 mm) long, rear pump to loader control valve, used with 3 spool valve on models with Ref. 17 elbow at loader valve side inlet port

1шт.

13

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- pressure check, if used

1шт.

14

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - straight, tee to coupling, if used

1шт.

15

S206607

DISC

COUPLING - pressure check, if used

1шт.

16

S206608

CAP

- dust, if used

1шт.

17

L59310

ELBOW UNION

ELBOW - 90 degree, at loader control valve side inlet port, if used, Includes: Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see parts list Figure 8-290 or 8-292

1шт.

20

L111003

HOSE,1.25" ID x 48.00", SAE 100R1A

Reservoir to Front Hydraulic Pump, Used wtih Ref. 3 Clamp, No Longer Available, Order D135498 and D135549 Clamp, Ref. 25 and 26 1.25" ID x 48.00", SAE 100R1A

1шт.

21

D127916

PUMP

ASSEMBLY - front, steering hydraulic, parts list Figure 8-286

1шт.

22

814-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

- hex head, 12 mm - 1.75 x 75 mm, plated

2шт.

23

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

2шт.

24

S119472

HOSE

- 30" (762 mm) long, Suction, to rear hydraulic pump, Used with Ref. 25 clamp

1шт.

25

D135549

CLAMP

- T-bolt type, hose, if used

4шт.

26

D135498

HOSE

- 46" (1168 mm) long, reservoir to front hydraulic pump, used with Ref. 25 clamp

1шт.

27

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, male, used on models with hex plug at loader valve side inlet port, if used, Includes: Ref. 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Tee

1шт.

29

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING ASSEMBLY - quick disconnect, component parts not serviced separately, if used, Includes Ref. 30

1шт.

30

425-1120

NUT,1 1/4"-12, G5

- hex, 1-1/4" - NF, plated

1шт.

31

H434163

DUST CAP

CAP - dust, coupling, if used

1шт.

32

L54137

HOSE ASSY.

HOSE - 25" (635 mm) long, rear pump to loader control valve, used with 2 or 3 spool valve on models with hex plug at loader valve side inlet port

1шт.
