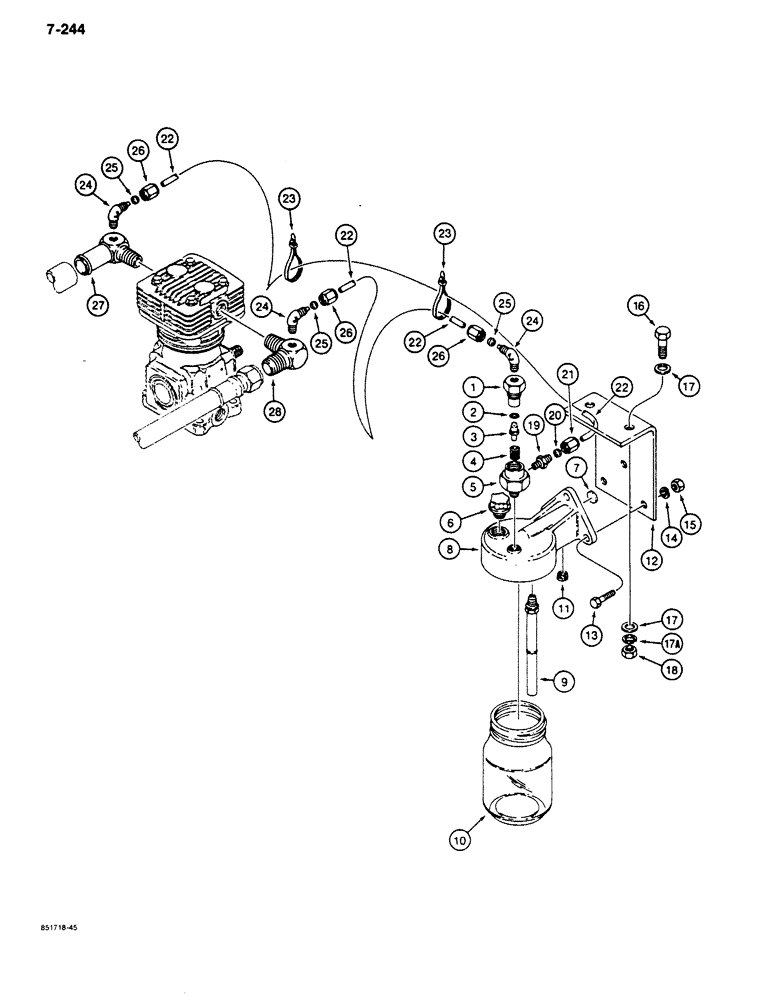

Запчасти Case 680K (7-244) - ALCOHOL EVAPORATOR (07) - BRAKES

D102183

KIT

EVAPORATOR ASSEMBLY - alcohol, tractor, Includes: Ref. 1 - 28, L46372 and L33157

1шт.

L46372

KIT

- alcohol evaporator, Includes: Ref. 1 - 11B

1шт.

L33157

VALVE

ASSEMBLY - check, alcohol evaporator, Includes: Ref. 1 - 5

1шт.

1

L33162

NUT

- cap

1шт.

2

L33161

O-RING,0.299" ID x 0.072" Width

GROMMET - check value

1шт.

3

L33160

VALVE

- check, alcohol evaporator

1шт.

4

L33159

SPRING

- check valve

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - check valve

1шт.

L33145

EVAPORATOR

JAR ASSEMBLY - includes cover, alcohol evaporator, Includes: Ref. 6 - 11

1шт.

6

L33151

PLUG

- filler

1шт.

7

41-102

PLUG,Exp, 1/2"

- expansion, 1/2", plated

1шт.

8

L33146

BODY

COVER - alcohol evaporator

1шт.

9

L33152

TUBE,0.25" ID x 0.33" OD x 4.87" L

- alcohol evaporator

1шт.

10

L33154

RESERVOIR

JAR - alcohol evaporator, plastic

1шт.

11

L33150

FILTER

- air intake

1шт.

11a

L31457

GASKET

- adapter, not shown

2шт.

Included in L46372 kit, but not used on the 680K.

1шт.

11b

L32930

ADAPTER

- compressor, not shown

1шт.

Included in L46372 kit, but not used on the 680K.

1шт.

12

L107271

BRACKET

- alcohol evaporator mounting

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

3шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

3шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated

2шт.

17

495-21038

WASHER,5/16"

4шт.

17a

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

2шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

ADAPTER ASSEMBLY - straight, compression fitting, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

20

222-5047

SLEEVE,1/4" Tube

- compression fitting

1шт.

21

222-5060

NUT,1/2"-20

NUT - compression fitting

1шт.

22

L100713

TUBE,0.25" OD x 66" L

- 66" (1676 mm) long, jar to compressor, cut as required

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

222572C1

ELBOW

ASSEMBLY - 90 degree, compression fitting, Includes: Ref. 24 - 26

3шт.

24

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree

1шт.

25

222-5047

SLEEVE,1/4" Tube

- compression fitting

1шт.

26

222-5060

NUT,1/2"-20

NUT - compression fitting

1шт.

27

L107160

FITTING

- special, replaces existing air compressor elbow

1шт.

28

D135322

ELBOW

- 90 degree, special, replaces existing air compressor elbow

1шт.
