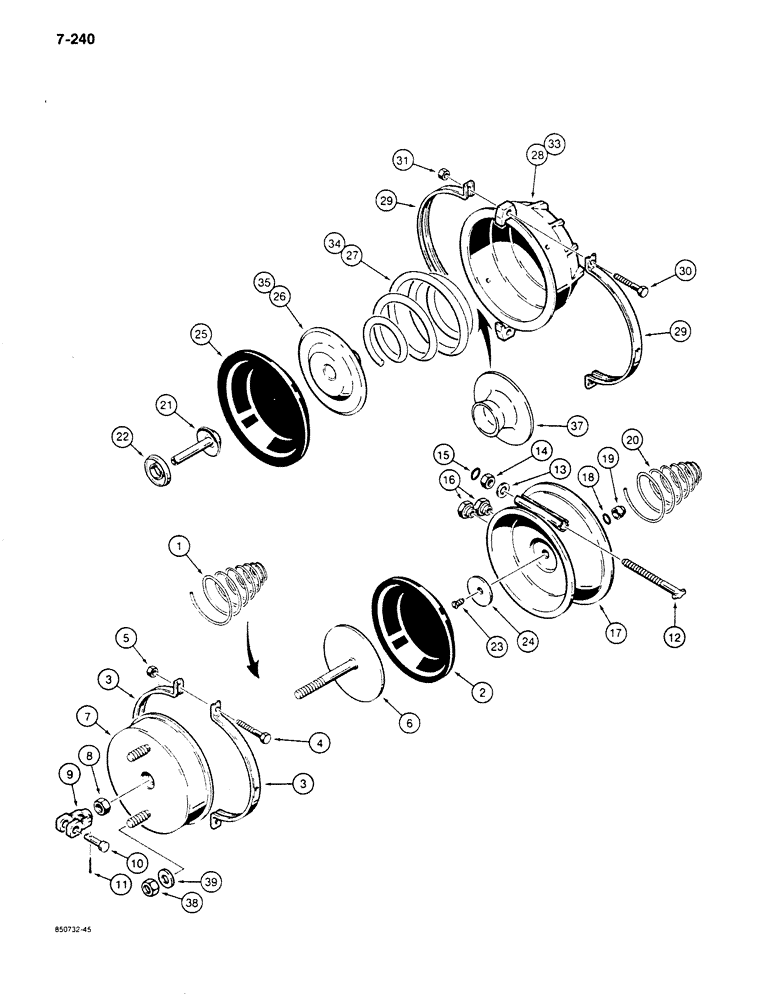

Запчасти Case 680K (7-240) - BRAKE SYSTEM, L105169 BRAKE ACTUATOR (07) - BRAKES

L105169

ACTUATOR

ASSEMBLY - brake, Aeroquip No. KSD2430AC-00032 with aluminum end cap or KSD2430CC-00096 with steel end cap, Includes: Ref. 1 - 28

2шт.

If a new actuator P/N L105169 is ordered, it is shipped with a shipping clip installed. You must apply 90 psi and rotate clip 90 degrees counterclockwise, pull straight out and install rubber plug.

1шт.

1

N7129

VALVE SPRING

SPRING - push rod return

1шт.

2

L35610

DIAPHRAGM

- brake actuator

1шт.

L35605

CLAMP

ASSEMBLY - brake actuator, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - brake actuator

2шт.

4

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

Hex, 3/8"-24 x 2 1/4", G5

2шт.

5

25-176

NUT,3/8"-24, G5, Hvy

- hex, heavy, 3/8" - 24 NF

2шт.

6

L35626

ROD

- pressure, brake actuator

1шт.

7

N7131

COVER ASSY

COVER - actuator

1шт.

8

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8"-18 NF, plated

1шт.

S84585

YOKE

ASSEMBLY - brake actuator, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

YOKE - brake actuator

1шт.

10

N6572

PIN

- yoke

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

12

N7132

BOLT

T-BOLT - special

1шт.

13

95-21056

WASHER,1/2"

- flat, , plated 1/2"

1шт.

14

N7133

NUT

- special

1шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Special, Used on models with aluminum end cap, Aeroquip No. KSD2430AC-00032 brake actuator assembly only -111, 70 Duro, .424" ID x .103" Thk

1шт.

16

5406-06-04

FITTING

REDUCER - 3/8" x 1/4" NPT

2шт.

N8827

DRUM HUB

BULKHEAD ASSEMBLY - brake actuator, Includes: Ref. 17 - 24

1шт.

17

NSS

NOT SOLD SEPARAT

BULKHEAD - actuator

1шт.

18

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Bulkhead -112, Cl 7, .487" ID x .103" Thk

1шт.

19

NSS

NOT SOLD SEPARAT

INSERT - bulkhead

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - push rod return

1шт.

21

NSS

NOT SOLD SEPARAT

ROD - adapter

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

23

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- machine, flat head, slotted, 1/4" - 20 NC x 1/2"

1шт.

24

N7130

PLATE ASSY.

PLATE - lower adapter

1шт.

25

N7187

DIAPHRAGM

- actuator

1шт.

26

N9906

KIT

SUPPORT - spring, used with aluminum end cap, Ref. 28, for service order N9906 power pack

1шт.

27

N9906

KIT

SPRING - main, used with aluminum end cap, Ref. 28, for service order N9906 power pack

1шт.

28

N9906

KIT

CAP - end, actuator, aluminum, for service order N9906 power pack

1шт.

N7185

CLAMP

ASSEMBLY - brake actuator, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

CLAMP - brake actuator

2шт.

30

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

Hex, 3/8"-24 x 2 1/4", G5

2шт.

31

25-176

NUT,3/8"-24, G5, Hvy

- hex, heavy, 3/8" - 24 NF

2шт.

32

N9187

PLUG

- rubber, end cap, not shown, used with aluminum end cap, Ref. 28, Aeroquip No. KSD2430AC-00032 brake actuator assembly only

1шт.

N9906

KIT

- power pack, with steel end cap and spring retainer, Includes: Ref. 33 - 37

1шт.

33

NSS

NOT SOLD SEPARAT

CAP - end, actuator, steel

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - main

1шт.

35

NSS

NOT SOLD SEPARAT

SUPPORT - spring

1шт.

36

NSS

NOT SOLD SEPARAT

PLUG - end cap, not shown

1шт.

37

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

38

131-1113

JAM NUT,Jam, 5/8"-11

NUT - hex, jam self-locking, 5/8" - 11 NC

2шт.

39

495-21069

WASHER,5/8"

- flat, , plated 5/8"

2шт.
