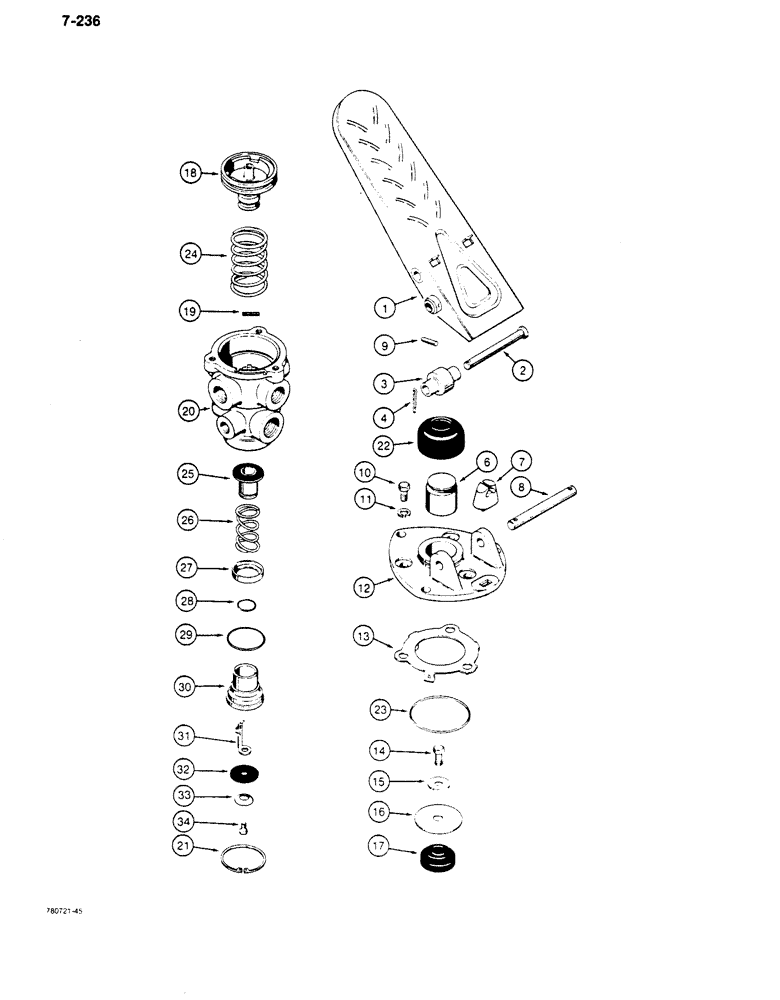

Запчасти Case 680K (7-236) - BRAKE SYSTEM, L73042 TREADLE AND BRAKE VALVE (07) - BRAKES

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - includes brake valve, brake, right-hand and left-hand, Includes: Ref. 1 - 34

2шт.

D73634

TREAD

LE ASSEMBLY - brake, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

TREADLE - brake valve

1шт.

2

L31367

PIN

- roller, treadle valve

1шт.

3

L32676

ROLLER

- treadle valve

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

6

L32925

PLUNGER

- treadle, brake

1шт.

7

303132R1

BUTTON

- stop, treadle

1шт.

8

303491R1

PIN

- pivot, treadle

1шт.

9

38-1814

LOCK PIN,1/8" x 7/8", Slotted

Pin, , pivot pin 1/8" x 7/8", Slotted

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4", plated

3шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

12

L32924

PLATE ASSY.

BRACKET - mounting, brake treadle

1шт.

S88507

VALVE

ASSEMBLY - brake, right-hand and left-hand, Includes: Ref. 13 - 34

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - brake valve

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - brake valve, Includes: Ref. 14 - 18

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT - hex, self-locking, special

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - compression, spring

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - spring, piston

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - rubber, piston

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - brake valve

1шт.

19

NSS

NOT SOLD SEPARAT

FILTER - vent

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

21

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, , Brake valve 1.625", Int, #162

1шт.

S88519

REPAIR KIT

KIT - repair, brake valve, Includes: Ref. 22 - 34

1шт.

22

179911R1

SCREW

COVER - brake treadle plunger

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - return, piston

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - inlet and exhaust, Includes: Ref. 25 - 34

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - inlet and exhaust

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - valve

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - exhaust check valve

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - check valve, exhaust

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - preload, inlet valve

1шт.

32

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - Belleville, diaphragm, valve

1шт.

34

70-1086

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- machine, pan head slotted, No. 8 - 32 NC x 3/8"

1шт.
