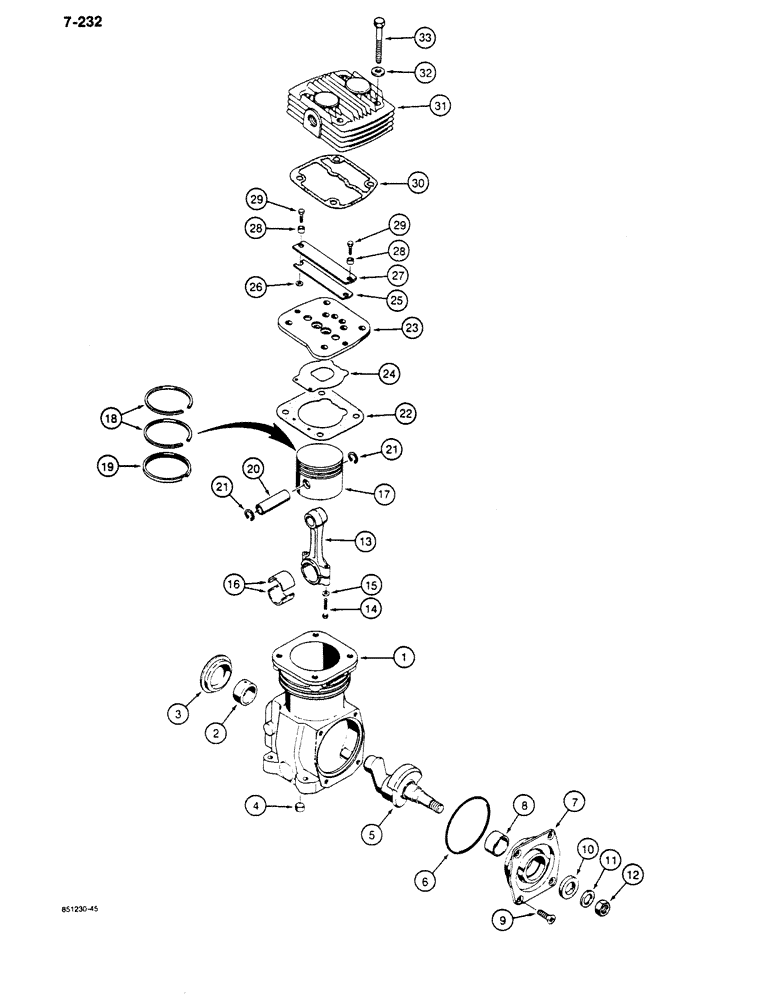

Запчасти Case 680K (7-232) - BRAKE SYSTEM, AIR COMPRESSOR (07) - BRAKES

L112031

COMPRESSOR

ASSEMBLY - air, brake, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKCASE - air compressor

1шт.

2

N13160

BUSHING

- crankcase

1шт.

3

N13162

COVER ASSY

COVER - end

1шт.

4

N13161

PLUG

- crankcase

2шт.

5

N13163

CRANKSHAFT

- air compressor

1шт.

6

N13164

O-RING

- crankshaft cover

1шт.

7

N13165

COVER ASSY

COVER - crankshaft, Includes: Ref. 8

1шт.

8

N13185

CRANKSHAFT BEARING

BEARING - crankshaft

1шт.

9

561-1004

SCREW,Hex Soc Hd, M8 x 1 x 16, 8.8

BOLT - hex socket head, 8 mm - 1 x 16 mm, plated

4шт.

10

N13166

SEAL

- crankshaft

1шт.

11

895-12018

WASHER,M18 x 34 x 3

- flat, 18 mm, plated

1шт.

12

825-11418

NUT,M18 x 1.5, Cl 8

- hex, 18 mm - 1.5, plated, fine thread

1шт.

N13168

ROD

ASSEMBLY - piston, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

ROD - connecting, two piece

1шт.

14

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

N13167

BEARING LINER

BUSHING - insert, rod

2шт.

N13169

PISTON

ASSEMBLY - compressor, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - compressor

1шт.

18

N13186

PISTON RING

RING - metal, piston, upper

2шт.

19

N13187

O-RING

RING - spring retaining, piston, lower

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - wrist, piston

1шт.

21

NSS

NOT SOLD SEPARAT

RING - snap, pin retaining

2шт.

22

104622A1

GASKET

-, Serial Range: plate-crankcase

1шт.

P2643623

PLATE

ASSEMBLY - valve, Includes: Ref. 23 - 29

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

24

N13174

PLATE

VALVE - inlet

1шт.

25

N13175

VALVE

- outlet

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - used as a shim

1шт.

27

NSS

NOT SOLD SEPARAT

GUARD - outlet valve

1шт.

28

NSS

NOT SOLD SEPARAT

SPACER - guard

2шт.

29

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

30

110432A1

GASKET

- head

1шт.

31

N13173

HEAD

- cylinder, compressor

1шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

33

614-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8, Full Thd

- hex head, self-locking, 8 mm - 1.25 x 65 mm, plated, full thread

4шт.
