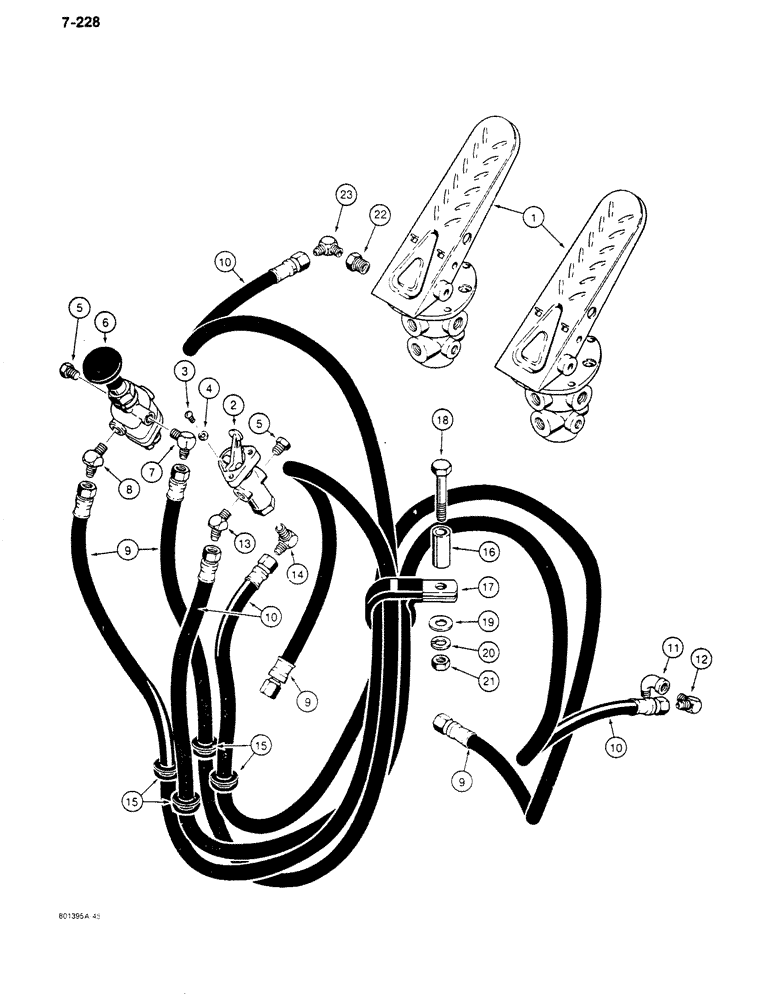

Запчасти Case 680K (7-228) - BRAKE SYSTEM, TREADLE TO CLUTCH CUTOUT AND PARKING BRAKE VALVE (07) - BRAKES

1

REF

INSTRUCTION

TREADLE ASSEMBLY - brake valve, parts list Figure 7-236

2шт.

2

L12630

LOCK VALVE

VALVE ASSEMBLY - clutch cutout, manual, parts list Figure 7-238

1шт.

3

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 - 24 NC x 1/2", plated

2шт.

4

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket head, 1/8" NPT

2шт.

6

L103834

VALVE

ASSEMBLY - control, parking brake, parts list Figure 7-230

1шт.

7

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

8

9402823

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

1шт.

9

L103356

HOSE,6.35 mm ID x 1016.00, SAE J1402

Air System 6.35 mm ID x 1016.00, SAE J1402

2шт.

10

L103355

HOSE,0.25" ID x 50.00", SAE J1402C Type A

Clutch Cutout 0.25" ID x 50.00", SAE J1402C Type A

2шт.

11

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree, 1/8" NPT

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

13

9402823

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

1шт.

14

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

15

248-2375

GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut

- hoes

4шт.

16

L10264

BUSHING

SPACER - hose support

1шт.

17

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

Hose 1 1/2", Insul, 3/8" Bolt

1шт.

18

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

19

495-21044

WASHER,3/8"

1шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" x 1/4" NPT

1шт.

23

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

1шт.
