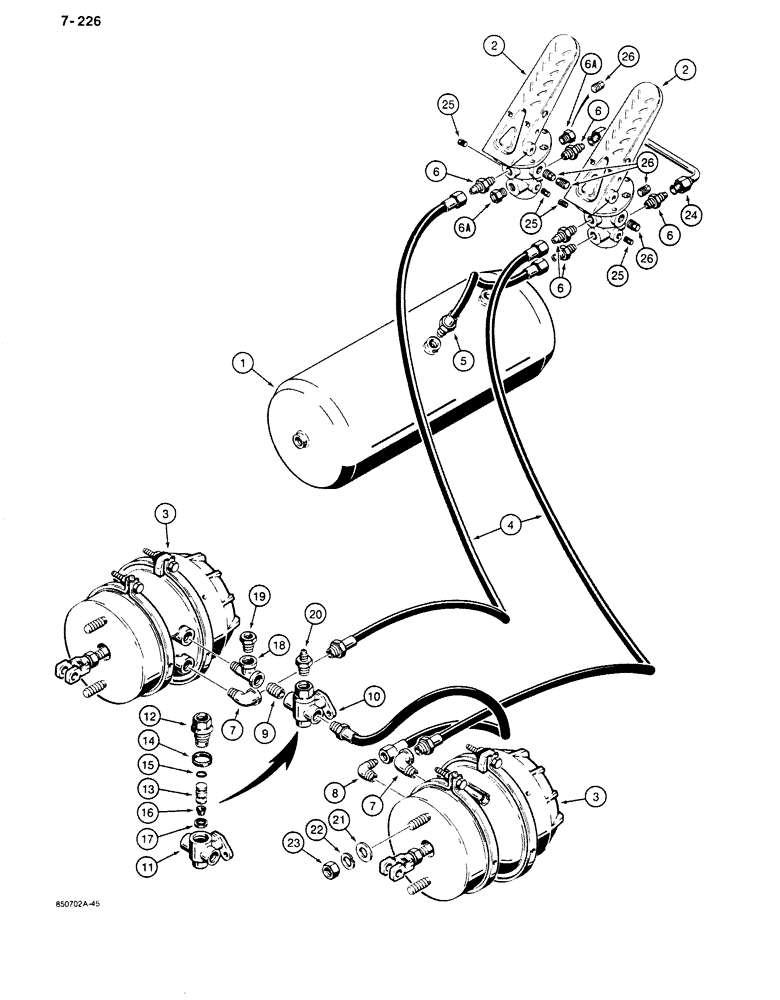

Запчасти Case 680K (7-226) - BRAKE SYSTEM, RESERVOIR TO BRAKE TREADLES, QUICK RELEASE VALVE AND BRAKE ACTUATOR (07) - BRAKES

1

L57152

RESERVOIR ASSY.

TANK - air reservoir, for tank mounting, see Figure 7-220

1шт.

2

REF

INSTRUCTION

TREADLE ASSEMBLY - brake valve, parts list Figure 7-236

2шт.

3

L105169

ACTUATOR

ASSEMBLY - parts list Figure 7-240

2шт.

If a new actuator P/N L105169 is ordered, it is shipped with a shipping clip installed. You must apply 90 psi and rotate clip 90 degrees counterclockwise, pull straight out and install rubber plug.

1шт.

4

L103353

CATALOG

HOSE - 33" (838 mm) long, treadle valve to brake actuator

2шт.

5

L103343

HOSE,9.52 mm ID x 330.20 mm

Treadle Valve to Air Reservoir 9.52 mm ID x 330.20 mm

2шт.

6

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

5шт.

6a

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" x 1/4" NPT

2шт.

7

80490004

FITTING

ELBOW - street, 90 degree, 1/4" NPT

2шт.

8

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

1шт.

9

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

1шт.

10

L55335

LOCK VALVE

VALVE ASSEMBLY - quick release, Includes: Ref. 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

12

NSS

NOT SOLD SEPARAT

FITTING - inlet

1шт.

13

N6200

SEAT

- valve

1шт.

N6201

SEAL KIT

- seal, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET - fitting

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - seat

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE - check, quick release valve

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - check valve

1шт.

18

221-1691

TEE,Street, 1/4" NPT

- Street, 1/4" NPT

1шт.

19

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.

20

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, male, 1/4" x 1/4"

1шт.

21

495-21069

WASHER,5/8"

- flat, 5/8"

4шт.

22

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

23

425-1110

NUT,5/8"-18, G5

4шт.

24

L103370

TUBE,0.375" OD x 5, 2.25" L

- brake treadle

1шт.

25

217-505

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - square head, 1/4" NPT

4шт.

26

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

4-5шт.
