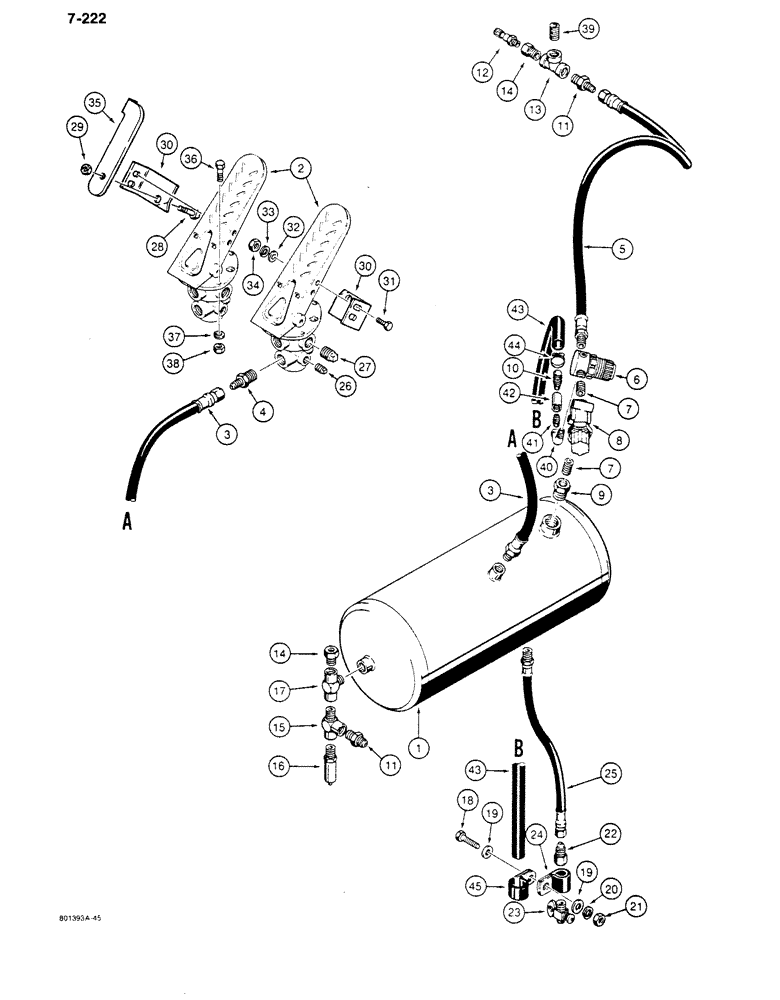

Запчасти Case 680K (7-222) - BRAKE SYSTEM, RESERVOIR TO PRESSURE VALVES AND TREADLES (07) - BRAKES

1

L57152

RESERVOIR ASSY.

TANK - air reservoir, for tank mounting see Figure 7-220

1шт.

2

REF

INSTRUCTION

TREADLE ASSEMBLY - brake valve, parts list Figure 7-236

2шт.

3

L103343

HOSE,9.52 mm ID x 330.20 mm

Treadle Valve to Air Reservoir 9.52 mm ID x 330.20 mm

1шт.

4

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

1шт.

5

L106579

HOSE

- 36" (924 mm) long, air supply

1шт.

6

L72409

LOCK VALVE

VALVE ASSEMBLY - pressure reduction, parts list Figure 7-230

1шт.

7

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

2шт.

8

L13530

VALVE

ASSEMBLY - pressure protection, parts list Figure 7-238

1шт.

9

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" x 1/4" NPT

1шт.

10

D38663

VENT

VALVE - relief, hydraulic reservoir

1шт.

11

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, male, 1/4" x 1/4"

2шт.

12

L51311

LOCK VALVE

VALVE - hydraulic reservoir

1шт.

13

221-1422

TEE,Pipe, 1/4" NPT

- 1/4" NPT

1шт.

14

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

2шт.

15

ZJM235

FITTING

TEE - 1/4" NPT

1шт.

16

L48992

VALVE,1/4"

- safety

1шт.

17

ZJM225

FITTING

TEE - 1/4" NPT

1шт.

18

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

1шт.

19

495-21044

WASHER,3/8"

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

218-1032

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, Fem Pipe

ADAPTER - straight

1шт.

23

S87819

VALVE

- drain

1шт.

24

NLS

NO LONGER SERVICED

CLAMP - hose

1шт.

25

L103354

HOSE,6.35 mm ID x 406.40 mm

Drain 6.35 mm ID x 406.40 mm

1шт.

26

217-505

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - square head, 1/4" NPT

4шт.

27

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

4шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated

1шт.

29

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

30

L71273

BRACKET

- locking bar

2шт.

31

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

4шт.

32

95-21031

WASHER,1/4"

- flat, , plated 1/4"

4шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

34

129-724

NUT

- weld, 1/4" - 20 NC

2шт.

35

L71180

BAR

- locking

1шт.

36

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated

6шт.

37

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

38

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

6шт.

39

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

1шт.

40

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree, 1/8" NPT

1шт.

41

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8" NPT x 3/4"

1шт.

42

221-326

COUPLING,Pipe, 1/8" NPT

- 1/8" NPT

1шт.

43

S120292

HOSE,0.63" ID x 30.00", SAE 30R2 Type 3 or SAE 100R6

0.625" ID x 30.00", SAE 30R2 Type 3 or SAE 100R6, Drain

1шт.

44

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

45

R21385

CLAMP

- support

1шт.
