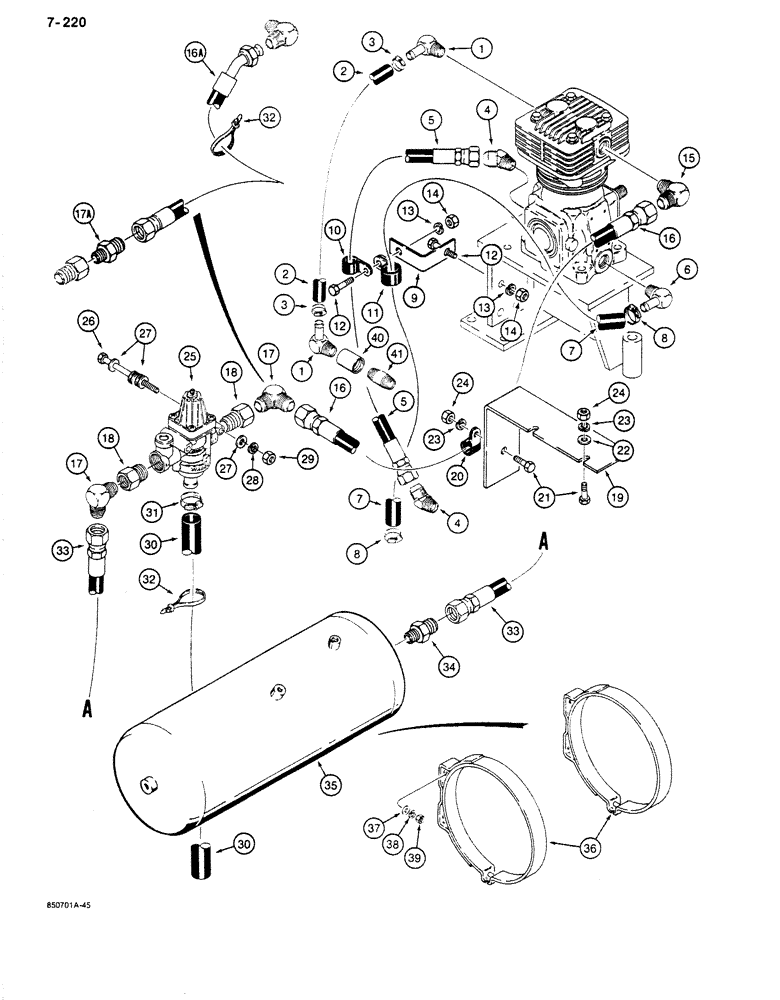

Запчасти Case 680K (7-220) - BRAKE SYSTEM, RESERVOIR AND UNLOADING VALVE LINES (07) - BRAKES

1

864459R1

ELBOW

FITTING - stem, 90 degree

2шт.

2

A19325

INTAKE AIR HOSE,19.00 mm ID x 559.00 mm, SAE 20R1

- Air supply 19.00 mm ID x 559.00 mm, SAE 20R1

1шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - air supply hose

2шт.

4

9402823

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

2шт.

5

L112113

HOSE,0.25" ID x 26.00", SAE 100R6

Air Compressor Oil Supply 0.25" ID x 26.00", SAE 100R6

1шт.

6

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

- stem, 90 degree

1шт.

7

L100109

HOSE,12.7 mm ID x 914.40 mm, SAE 30R2 Type I

Oil Return, Attaches to Oil Filter Tube 12.7 mm ID x 914.40 mm, SAE 30R2 Type I

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - oil return hose

2шт.

9

L112122

BRACKET

- support, oil pressure and oil return hoses, mounts to air compressor mounting bracket

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Small, oil pressure hose 1/2", Insul, 3/8" Bolt

1шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- large, oil return hose

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

16

L112103

HOSE ASSY.

HOSE - 39" (991 mm) long, air compressor to unloading valve, no longer available, for service order D135093 hose and 218-456 adapter, Ref. 16A and 17A

1шт.

16a

D135093

HOSE

- 34" (864 mm) long, air compressor to unloading valve, replaces L112103 hose and 218-493 elbow, Ref. 16 and 17, used on some models.

1шт.

17

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, used with L112103 hose, Ref. 16

1-2шт.

17a

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, used with D135093 hose, Ref. 16A

1шт.

18

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

- 3/4" x 1/2" NPT

2шт.

19

L111567

BRACKET

- compressor to valve hose, no longer used, not required for brake hose

1шт.

20

R21385

CLAMP

- hose, if used

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated, if used

3шт.

22

495-21044

WASHER,3/8"

If used 3/8"

2шт.

23

492-11038

LOCK WASHER,3/8"

if used 3/8"

3шт.

24

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

3шт.

25

L112032

VALVE, BRAKE

VALVE ASSEMBLY - unloading, parts list Figure 7-234

1шт.

26

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex head, 5/16" - 18 NC x 4", plated

2шт.

27

495-21038

WASHER,5/16"

12шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

2шт.

30

D128387

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 36" (914 mm) long, drain

1шт.

31

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- drain hose #16, 0.81/1.50 Type F Worm

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

33

D129184

HOSE

- 31" (787 mm) long, unloading valve to air reservoir tank

1шт.

34

321359R1

TUBE NUT,3/4"-16, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight

1шт.

35

L57152

RESERVOIR ASSY.

TANK - air reservoir

1шт.

36

D133873

BRACKET

- tank mounting, includes bolt and nut

2шт.

37

95-21056

WASHER,1/2"

- flat, 9/16", plated

4шт.

38

492-11038

LOCK WASHER,3/8"

4шт.

39

425-106

NUT,3/8"-16, Cl 5

4шт.

40

221-1338

COUPLING,Pipe, 1/2" NPT

- 1/2" NPT

1шт.

41

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - 1/2" NPT x 1-1/8", at engine block

1шт.
