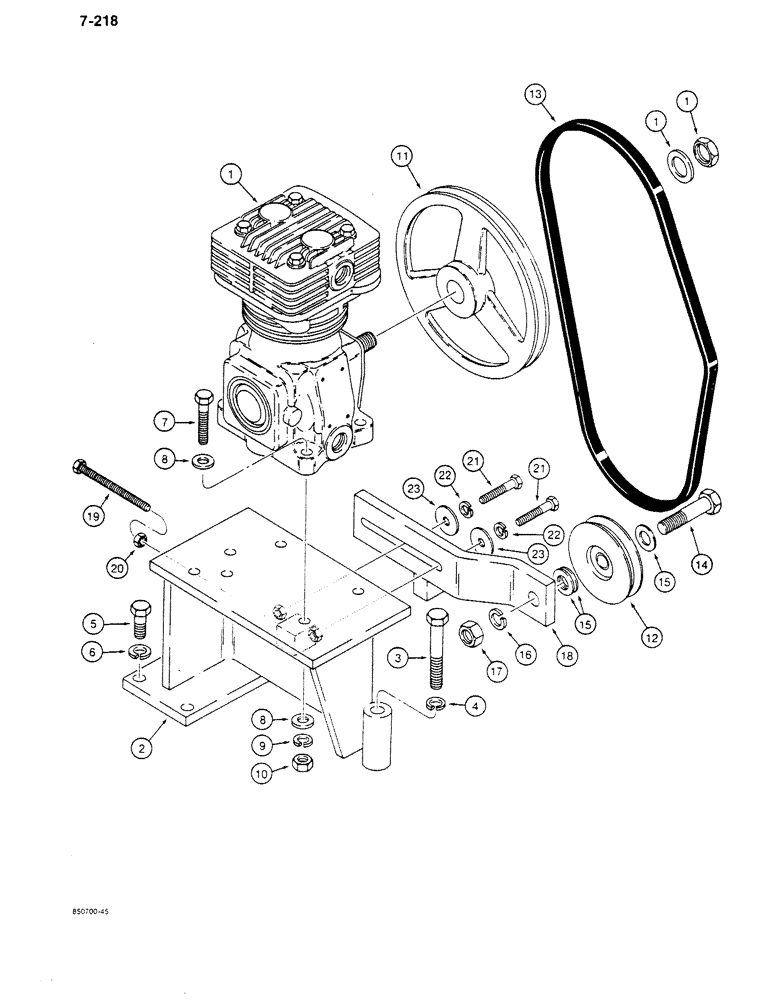

Запчасти Case 680K (7-218) - BRAKE SYSTEM, AIR COMPRESSOR MOUNTING (07) - BRAKES

1

L112031

COMPRESSOR

ASSEMBLY - air, brake, parts list Figure 7-232

1шт.

2

D129551

BRACKET

- air compressor mounting

1шт.

3

931170R1

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

- hex head, 12 mm - 1.75 x 80 mm, plated

1шт.

4

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

1шт.

5

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

6

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

3шт.

7

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

4шт.

11

L111646

PULLEY

- air compressor

1шт.

12

L112544

PULLEY

- idler

1шт.

13

D129916

BELT,12.70 mm W x 1124.00 mm L

Brake, Air Compressor 12.70 mm W x 1124.00 mm L

1шт.

14

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

15

195-2201

WASHER,0.69" ID x 1.12" OD x 0.07" Thk

- flat, 5/8", special, plated, used as a spacer

1шт.

16

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

230-41110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated

1шт.

18

D129034

STRAP

- slide, idler pulley

1шт.

19

113-2287

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5, Full Thd

1шт.

20

9419867

NUT

- hex, jam, 3/8" - 16 NC, plated

1шт.

21

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex head, 3/8" - 24 NF x 1-3/4", plated

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, hardened, plated

2шт.
