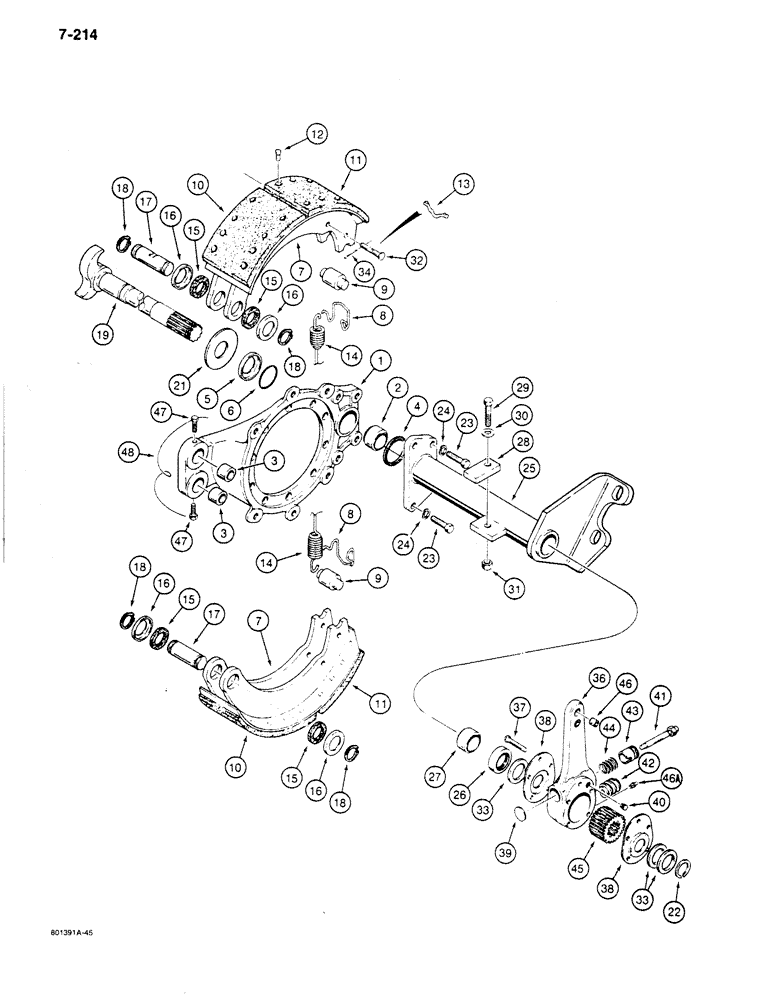

Запчасти Case 680K (7-214) - L61205 REAR AXLE, REAR BRAKES AND ADJUSTERS (07) - BRAKES
№
Артикул
Название
Примечание
Количество
L61205
CENTER AXLE
AXLE ASSEMBLY - complete, rear, Rockwell No. PRS-264-P104, -P106, or -P107, parts list Figures 6-204 through 7-214, Includes: Ref. 1 - 48
1шт.
D87282
BRACKET
ASSEMBLY - brake mounting, Includes: Ref. 1 - 6
2шт.
1
NSS
NOT SOLD SEPARAT
BRACKET - brake
1шт.
2
L35560
BUSHING
- cam
1шт.
3
D77629
BUSHING
- brake pin
2шт.
4
S89827
GASKET
- bracket assembly, Replaces N6395
1шт.
5
417489C1
RETAINER
- O-ring
1шт.
6
D77626
O-RING
- shaft seal
1шт.
L35563
SHOE (ASSY)
LINING ASSEMBLY - brake, Includes: Ref. 7 - 13
4шт.
7
NSS
NOT SOLD SEPARAT
SHOE - brake
1шт.
8
L35589
RETAINER
- roller
1шт.
9
126404R1
ROLLER
- shoe
1шт.
10
NSS
NOT SOLD SEPARAT
LINING - shoe, anchor end
1шт.
Part of brake lining and rivets kit 117975A1
1шт.
11
NSS
NOT SOLD SEPARAT
LINING - shoe, cam end
1шт.
Part of brake lining and rivets kit 117975A1
1шт.
12
NSS
NOT SOLD SEPARAT
RIVET - brake lining
16шт.
Part of brake lining and rivets kit 117975A1
1шт.
13
L35588
AXLE PIN
PIN - anchor, alternate to Ref. 32, if used
1шт.
14
D87283
SPRING
- return, brake shoe
2шт.
15
L35566
FELT
- anchor pin
8шт.
16
L35567
CAP
RETAINER - felt
8шт.
17
D77625
AXLE PIN
PIN - anchor, brake shoe
4шт.
18
103-11125
SNAP RING,#125, Ext
Ring, Snap, , Anchor pin #125, Ext
8шт.
19
L35961
SHAFT
- includes cam, left-hand brake adjustment
1шт.
20
L35962
SHAFT
- includes cam, right-hand brake adjustment, not shown
1шт.
21
L35706
WASHER
- flat, cam head
2шт.
22
100-11150
SNAP RING,#150, Ext
Ring, Snap, , cam groove, .050" thick, if used #150, Ext
2шт.
22
100-16150
SNAP RING,#150, Ext
Ring, Snap, , Cam groove, .109" thick, if used #150, Ext
2шт.
23
426-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
- hex head, 1/2" - 13 NC x 1-1/2", grade 8
8шт.
24
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
8шт.
D87279
BRACKET
ASSEMBLY - mounting, left-hand brake chamber, not shown, Includes: Ref. 25 - 27
1шт.
D87280
BRACKET
ASSEMBLY - mounting, right-hand brake chamber, not shown, Includes: Ref. 25 - 27
1шт.
25
NSS
NOT SOLD SEPARAT
BRACKET - mounting, brake chamber, right-hand or left-hand
1шт.
26
S115859
SEAL
- oil, bracket
1шт.
27
L35560
BUSHING
- cam and shaft
1шт.
28
L35577
PLATE ASSY.
PLATE - mounting, chamber bracket, welded to axle housing
2шт.
29
26-928
BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8
- hex head, 9/16" - 12 NC x 1-3/4", grade 8
2шт.
30
N6183
WASHER
- special
2шт.
31
425-109
NUT,9/16"-12, G5
- hex, 9/16" - 12 NC
2шт.
32
L35705
AXLE PIN
PIN - anchor, alternate to Ref. 13, if used
4шт.
33
L35573
WASHER
- special
1шт.
34
132-28
COTTER PIN,3/32" x 1"
Pin, Split (Cotter), , If used 3/32" x 1"
4шт.
35
S89827
GASKET
- bracket, not shown
2шт.
L35572
ADJUSTER
- slack, brake shoe, may be riveted or welded construction, Includes: Ref. 36 - 46B
2шт.
Bushing L35602 and grease fitting 219-1 are the only items serviced on welded slack adjuster assemblies.
1шт.
36
NSS
NOT SOLD SEPARAT
BODY - adjuster
1шт.
37
L35598
RIVET
- adjuster body
10шт.
38
L35600
COVER ASSY
COVER - adjuster gear
2шт.
39
41-102
PLUG,Exp, 1/2"
- expansion, 5/8"
1шт.
40
L35597
AXLE PIN
PIN - lock
1шт.
41
L35594
SHAFT
- drive, worm gear
1шт.
42
L35595
GEAR WHEEL
GEAR - drive, worm
1шт.
43
L35593
LOCK ASSY
LOCK - worm gear shaft
1шт.
44
L35592
VALVE SPRING
SPRING - lock, worm
1шт.
45
L35601
GEAR WHEEL
GEAR - driven, worm, splined
1шт.
46
L35602
BUSHING
- adjuster body
2шт.
Bushing L35602 and grease fitting 219-1 are the only items serviced on welded slack adjuster assemblies.
1шт.
Bushing L35602 and grease fitting 219-1 are the only items serviced on welded slack adjuster assemblies.
1шт.
46b
217-430
PLUG,Hex Soc, 1/8" - 27 NPTF
- hex socket head, 1/8" NPT, not shown
1шт.
47
A15983
BOLT,M10 x 1.25 x 40mm, Cl 10.9
SCREW - lock, anchor pin
4шт.
48
391-751
ELECTRICAL WIRE
WIRE - lock, No. 19 x 12" long, anchor pin lock screw
2шт.
117975A1
SET OF PARTS
KIT - brake lining and rivets, for two wheels, includes Refs. 10, 11, 12
1шт.
