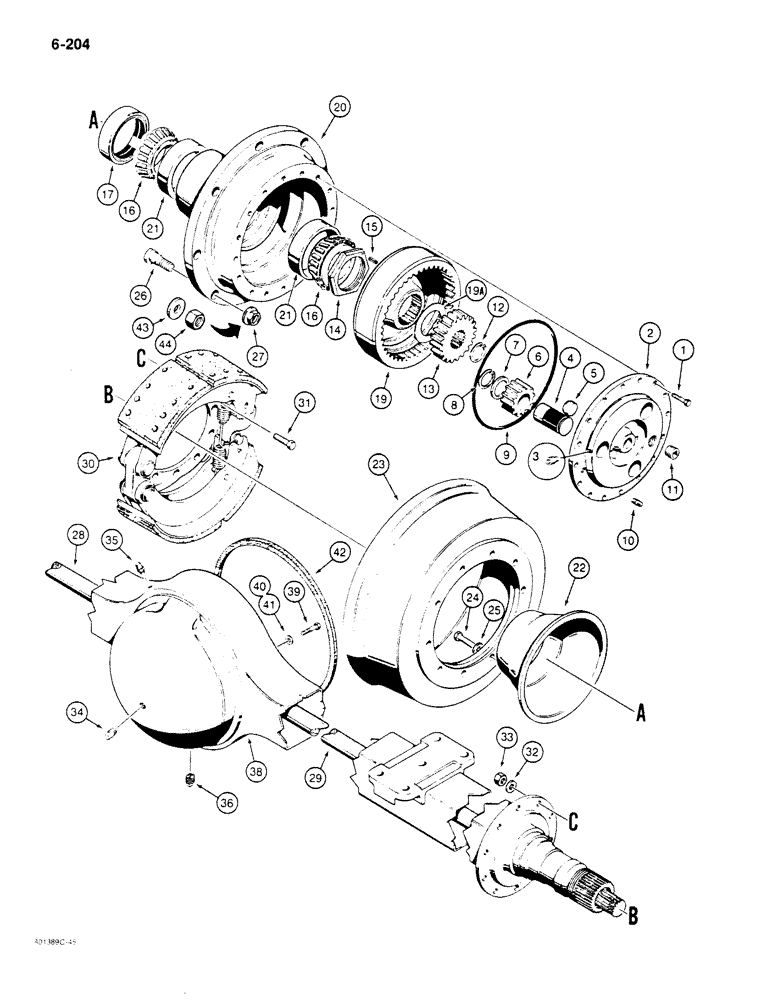

Запчасти Case 680K (6-204) - L61205 REAR AXLE, AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

L61205

CENTER AXLE

AXLE ASSEMBLY - complete, rear, Rockwell No. PRS-264-P104,-P106 or -P107, parts list Figures 6-204 through 7-214, Includes: Ref. 1 - 42

1шт.

1

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

- special

32шт.

N8234

GEAR

COVER ASSEMBLY - planetary, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

3

N7103

STUD

SCREW - set, planetary cover

3шт.

4

N7102

PINION

SHAFT - pinion, rear axle

3шт.

5

N8565

BUTTON

PLUG - thrust

1шт.

6

D88721

GEAR WHEEL

GEAR - pinion, rear axle

6шт.

7

N7104

WASHER, THRUST

WASHER - thrust, pinion gear

6шт.

8

A18242

RING

- snap, pinion gear

6шт.

9

397575R1

O-RING,10.125" ID x 0.103" Width

- planetary cover, if used

2шт.

9a

B17576

GASKET MAKER FLUID

SEALANT - 3 oz (89 ml) of sealant in a tube, if used, not shown

2шт.

10

221-843

PLUG,Hex Soc, 3/8"-18

- square head, 3/8" NPT, drain, if used

2шт.

11

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - square socket head, 3/4" NPT, magnetic, fill

2шт.

12

A18241

RING

- snap, sun gear retaining

2шт.

13

D88719

GEAR WHEEL

GEAR - sun, planetary

2шт.

N7105

LOCK NUT

NUT ASSEMBLY - lock, bearing, Includes: Ref. 14, 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

15

38-31614

PIN,6.35mm OD x 22.23mm L, Coiled

nut assembly 1/4" x 7/8", Coiled

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

BEARING - tapered roller, cup

4шт.

17

100173A1

SEAL

- bearing

2шт.

19

D88718

RING

GEAR - ring, planetary

2шт.

19a

D88720

WASHER,68.33mm ID x 101.6mm OD x 1.52mm Thk

- thrust, ring gear

2шт.

D88717

HUB CAP

HUB ASSEMBLY - axle, Includes: Ref. 20, 21

2шт.

20

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

21

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

CUP - tapered roller bearing

2шт.

22

L35224

SLINGER

- oil

2шт.

23

D88722

DRUM HUB

DRUM - brake

2шт.

24

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex head, 3/4" - 10 NC x 1-3/4", grade 8

20шт.

25

L36067

WASHER

- flat, special

20шт.

26

N14152

BOLT

STUD - wheel

16шт.

27

NSS

NOT SOLD SEPARAT

NUT - wheel, not shipped with axle, order Ref. 43 and 44

16шт.

28

N9742

SHAFT

- axle, left-hand, short

1шт.

29

N9744

SHAFT

- axle, right-hand, long

1шт.

30

REF

INSTRUCTION

BRAKE ASSEMBLY - axle, see Figure 7-214

2шт.

31

25051R1

BOLT,Hex, 5/8" - 18 x 2", Gr 8

30шт.

32

449671R1

WASHER

- special

30шт.

33

232-46110

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

30шт.

34

221-845

PLUG,Hex Soc, 3/4"-14

- square socket head, 3/4" NPT, fill

1шт.

Part of service housing assembly D87278

1шт.

35

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

- axle housing

1шт.

36

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - square socket head, 3/4" NPT, magnetic, drain

1шт.

Part of service housing assembly D87278

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

Part of service housing assembly D87278

1шт.

39

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex head, 1/2" - 13 NC x 1-1/2", grade 8

12шт.

39

326-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

2шт.

39

24853R1

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 8

- hex head, 7/16" - 14 NC x 2-1/2", grade 8

2шт.

40

213524R1

WASHER

- special, 1/2"

12шт.

41

213319R1

WASHER

- special, 7/16"

4шт.

42

B94328

FLUID

GASKET -, Serial Range: differential-housing

1шт.

43

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- special

16шт.

44

29-1112

NUT,3/4"-16, G8

- hex, 3/4" -16 NF, grade 8

16шт.

D87278

HOUSING ASSEMBLY - service, Includes: Ref. 34, 36, 38

1шт.
