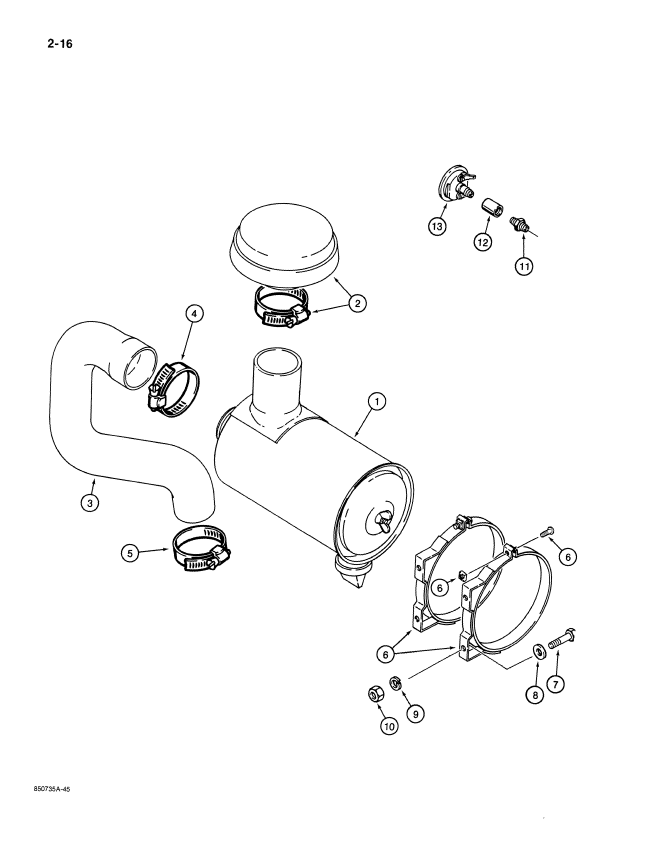

Запчасти Case 680K (2-16) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

A170967

CLEANER ASSY.

CLEANER ASSEMBLY - air, engine, parts list Figure 2-18

1шт.

2

A170235

CAP

- air cleaner, includes clamp

1шт.

3

L112186

INTAKE AIR HOSE,3.00" ID, 3.50" ID, SAE J200

- Air Cleaner to Engine 3.00" ID, 3.50" ID, SAE J200

1шт.

4

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose to air cleaner

1шт.

5

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose to engine

1шт.

6

70973

BRACKET

BAND - air cleaner mounting

2шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 3/4", plated

4шт.

8

495-21038

WASHER,5/16"

4шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

4шт.

11

348828C1

SPACER

FITTING ASSEMBLY - includes filter, air restriction indicator

1шт.

12

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

13

292740A1

RESTRICTION SWITCH

SENDER - air filter restriction indicator

1шт.
